PP121W-S

Supertronic PP121 Wall/table housing ABS (Acrylonitrile Butadiene Styrene) 101mmx71mmx27mm white

PP121WSPP121WS
Manufacturer Part No.
PP121W-S
Schukat Part No.
PP121WS
Manufacturer
Supertronic
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

7 Pcs. in stock

Planned delivery time
Ø 4 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Notice
Cross-references:
Here you will find suitable Accessories for Enclosures.
Type
Wall/table housing
Assembly Type
Snap-on assembly
Dimension: Length
101 mm
Dimension: Width
71 mm
Dimension: Height
27 mm
Design
Ventilation opening
Colour
white
Material
ABS (Acrylonitrile Butadiene Styrene)
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Supertronic
Series
  • PP121
Product group
  • G4540
Material
  • ABS (Acrylonitrile Butadiene Styrene)
Colour
  • white
Type
  • Wall/table housing
Assembly Type
  • Snap-on assembly
Design
  • Ventilation opening
Product description

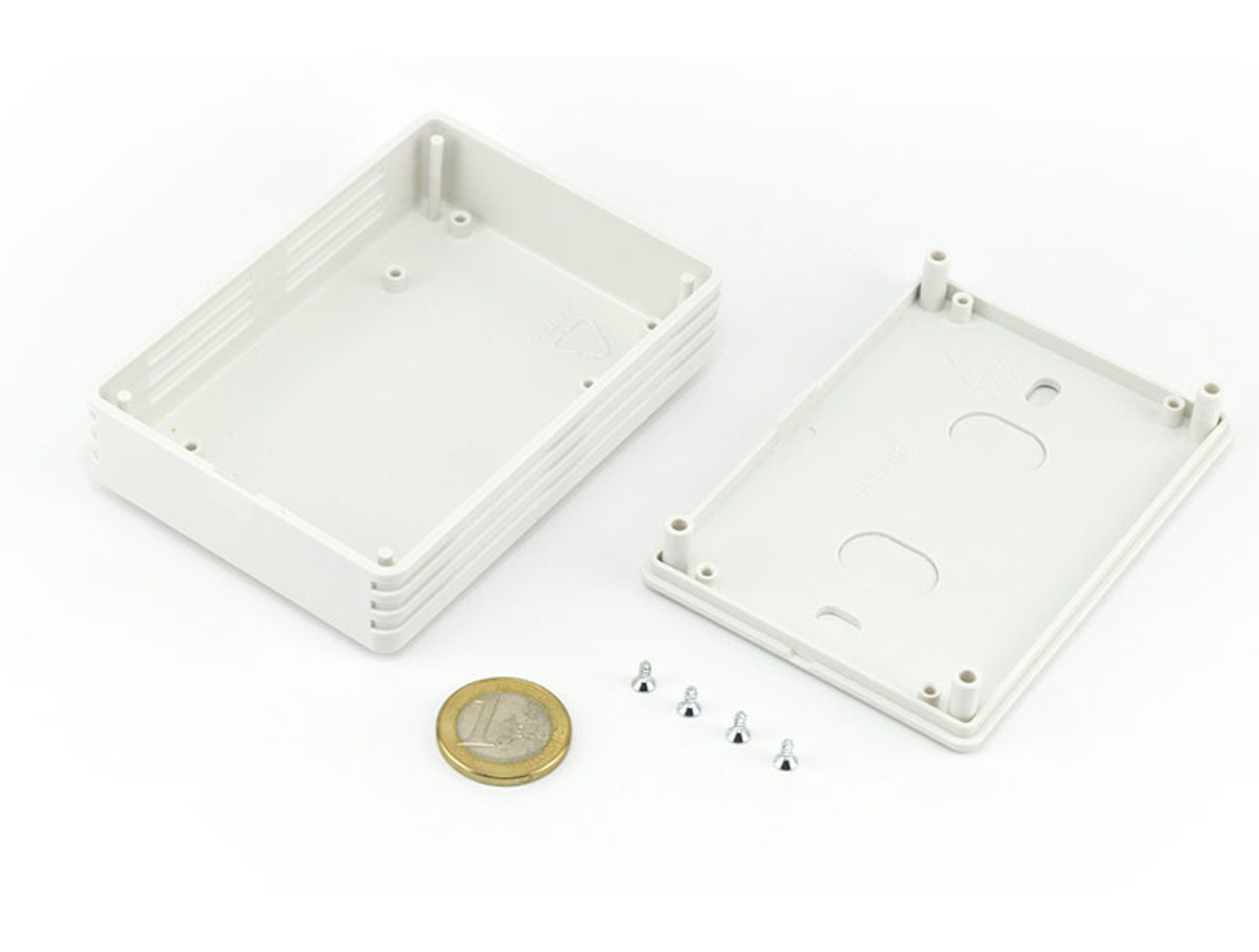

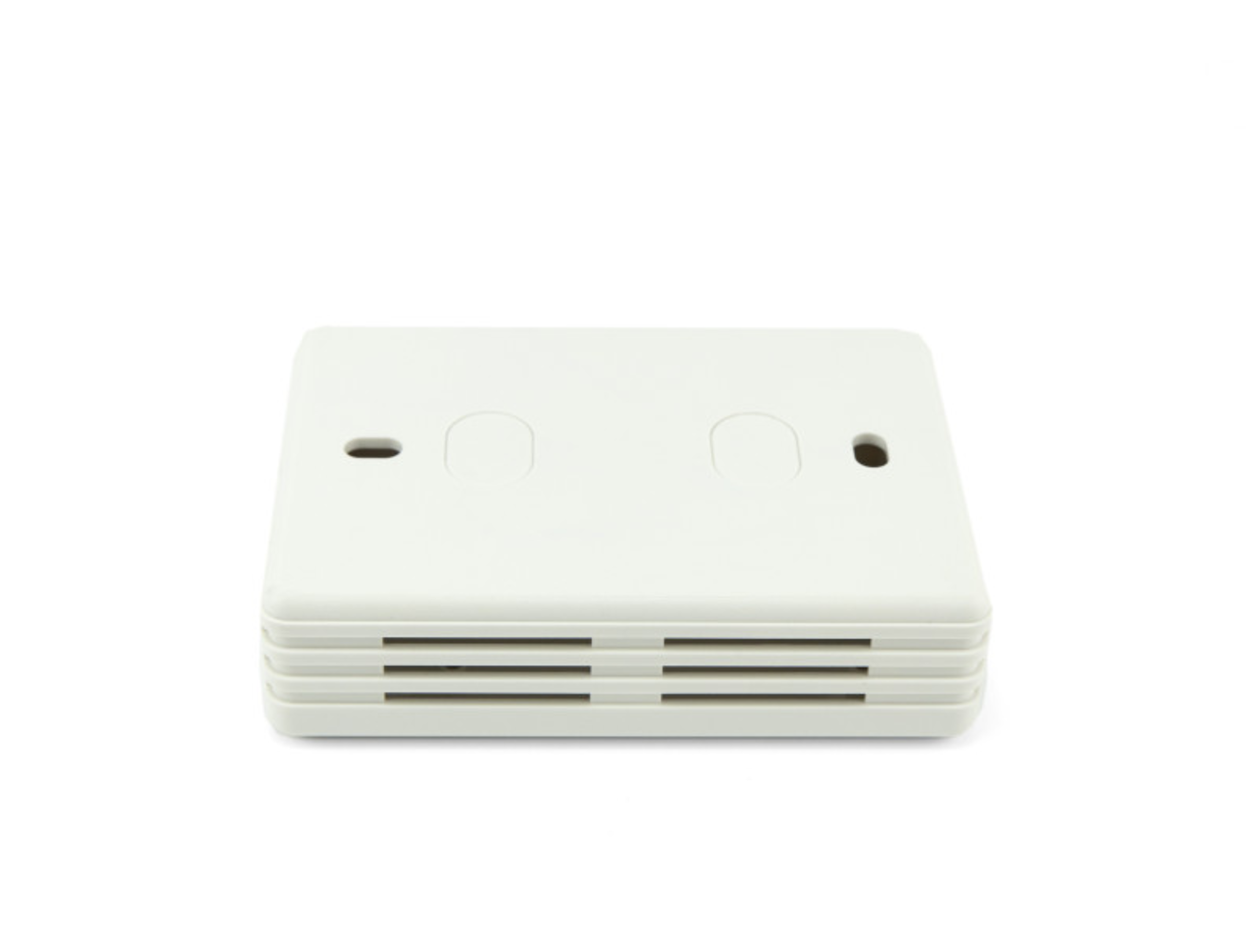

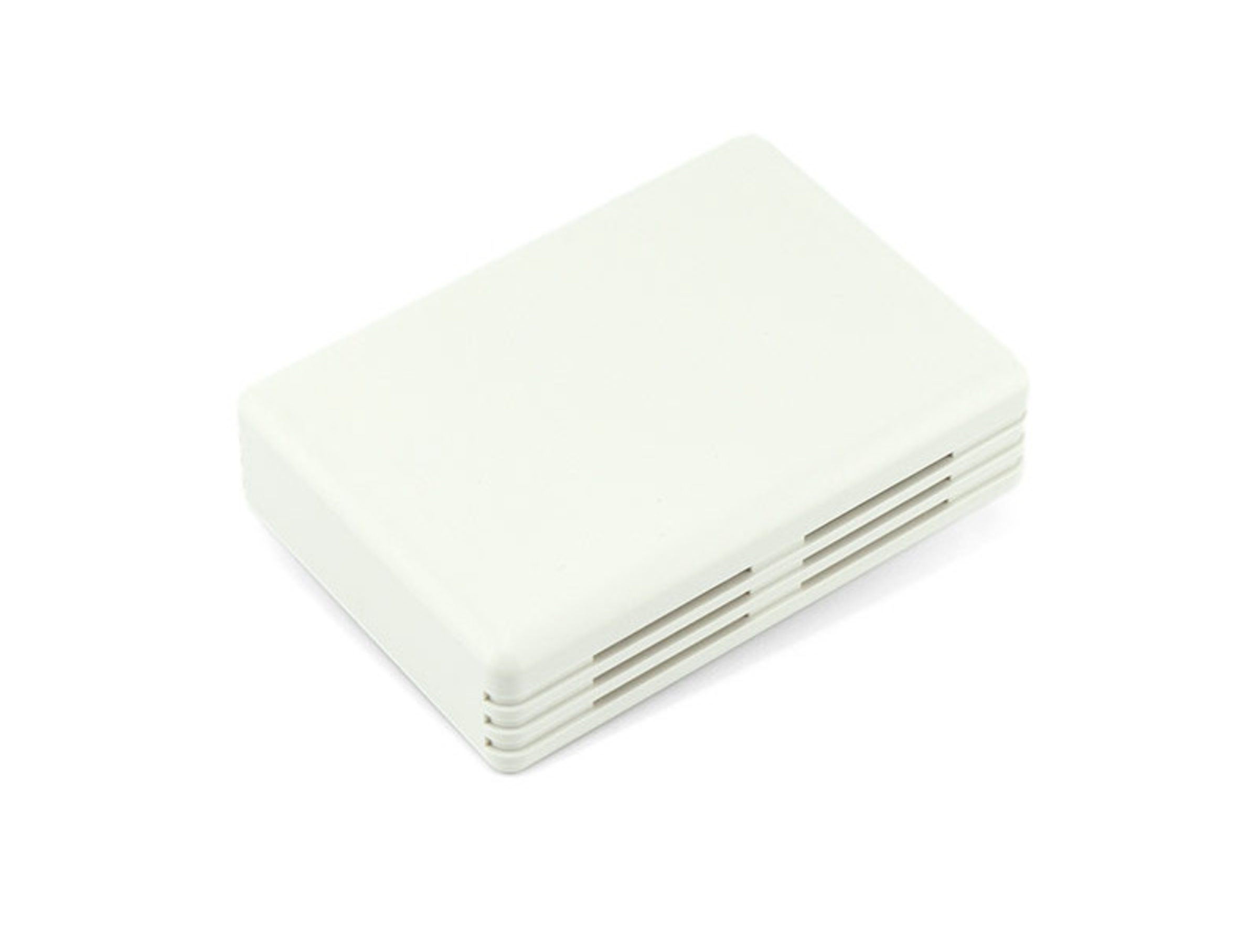

  • The PP121 model from Supertronic's Senses series is a wall-mountable plastic enclosure ideal for housing sensors, thermostats, or alarms. It consists of a housing and a cover and features openings or grilles on both sides to facilitate ventilation and cable routing. With external dimensions of 101 x 71 x 27 mm and internal dimensions of 99 x 67 x 24 mm, it offers ample space for a variety of electronic devices. The rear cover of the enclosure is pre-drilled for easy wall mounting, making it practical and simple to install in various environments. This enclosure is perfect for applications such as sensors, IoT systems, control and measurement devices, and monitoring equipment, providing a secure and elegant solution. The PP121 also offers customization options through CNC machining and UV digital printing, allowing Supertronic to tailor the enclosure to the specific needs of each project while maintaining high quality and design standards.
Features

  • - Wall and desktop enclosures made of ABS in black, white or grey
    - Consisting of lower and upper part
    - Screw mounting or snap-in mounting
    - With or without lateral ventilation slits depending on model

Notice

Dimensions and Weights

Dimension: Length
  • 101 mm
Dimension: Width
  • 71 mm
Dimension: Height
  • 27 mm
