PP116G-S

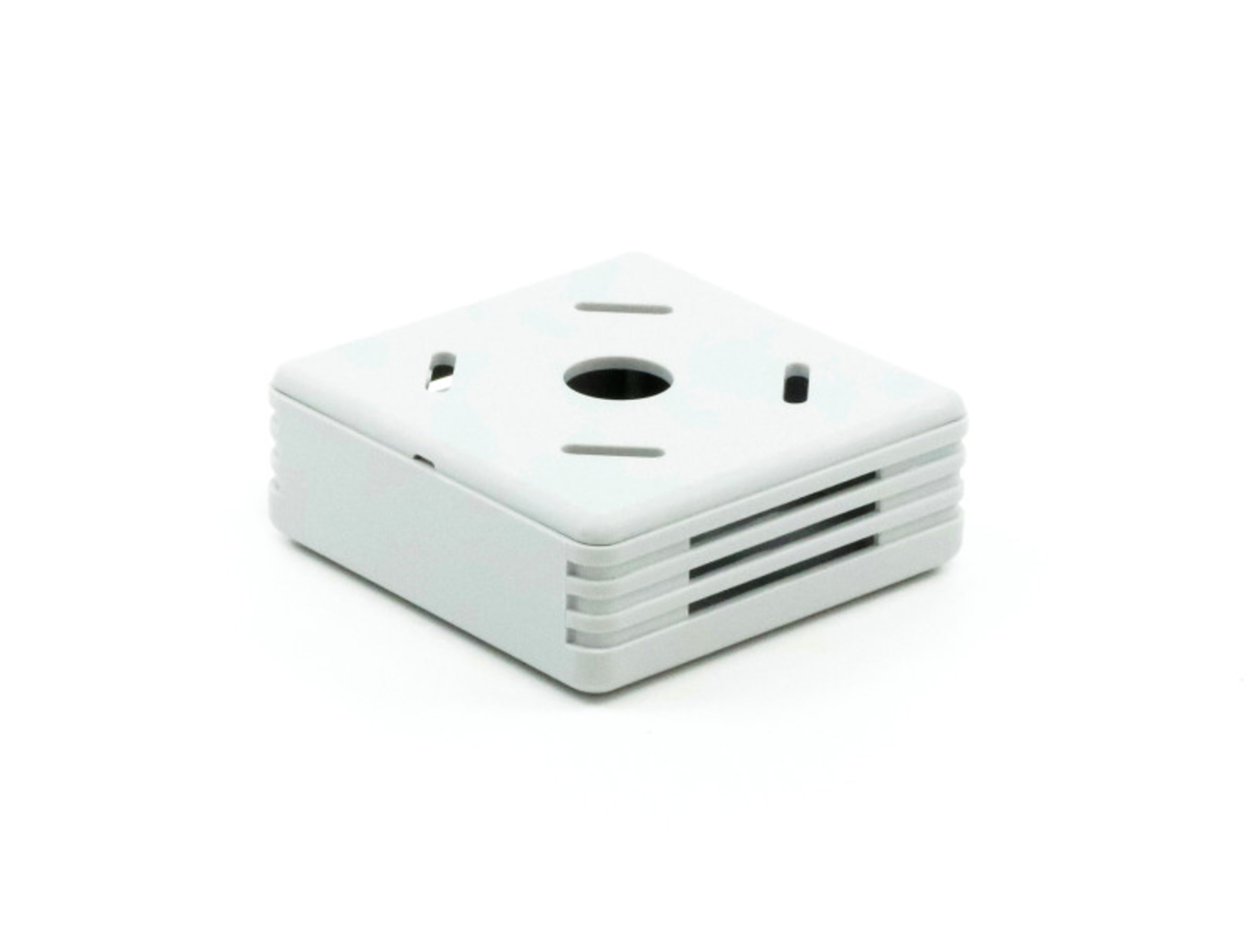

Supertronic PP116 Wall/table housing ABS (Acrylonitrile Butadiene Styrene) 71mmx71mmx27mm gray

PP116GRPP116GR
Manufacturer Part No.
PP116G-S
Schukat Part No.
PP116GR
Manufacturer
Supertronic
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

5 Pcs. in stock

Planned delivery time
Ø 4 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Notice
Cross-references:
Here you will find suitable Accessories for Enclosures.
Type
Wall/table housing
Assembly Type
Snap-on assembly
Dimension: Length
71 mm
Dimension: Width
71 mm
Dimension: Height
27 mm
Design
Ventilation opening
Colour
gray
Material
ABS (Acrylonitrile Butadiene Styrene)
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Supertronic
Series
  • PP116
Product group
  • G4540
Material
  • ABS (Acrylonitrile Butadiene Styrene)
Colour
  • gray
Type
  • Wall/table housing
Assembly Type
  • Snap-on assembly
Design
  • Ventilation opening
Product description

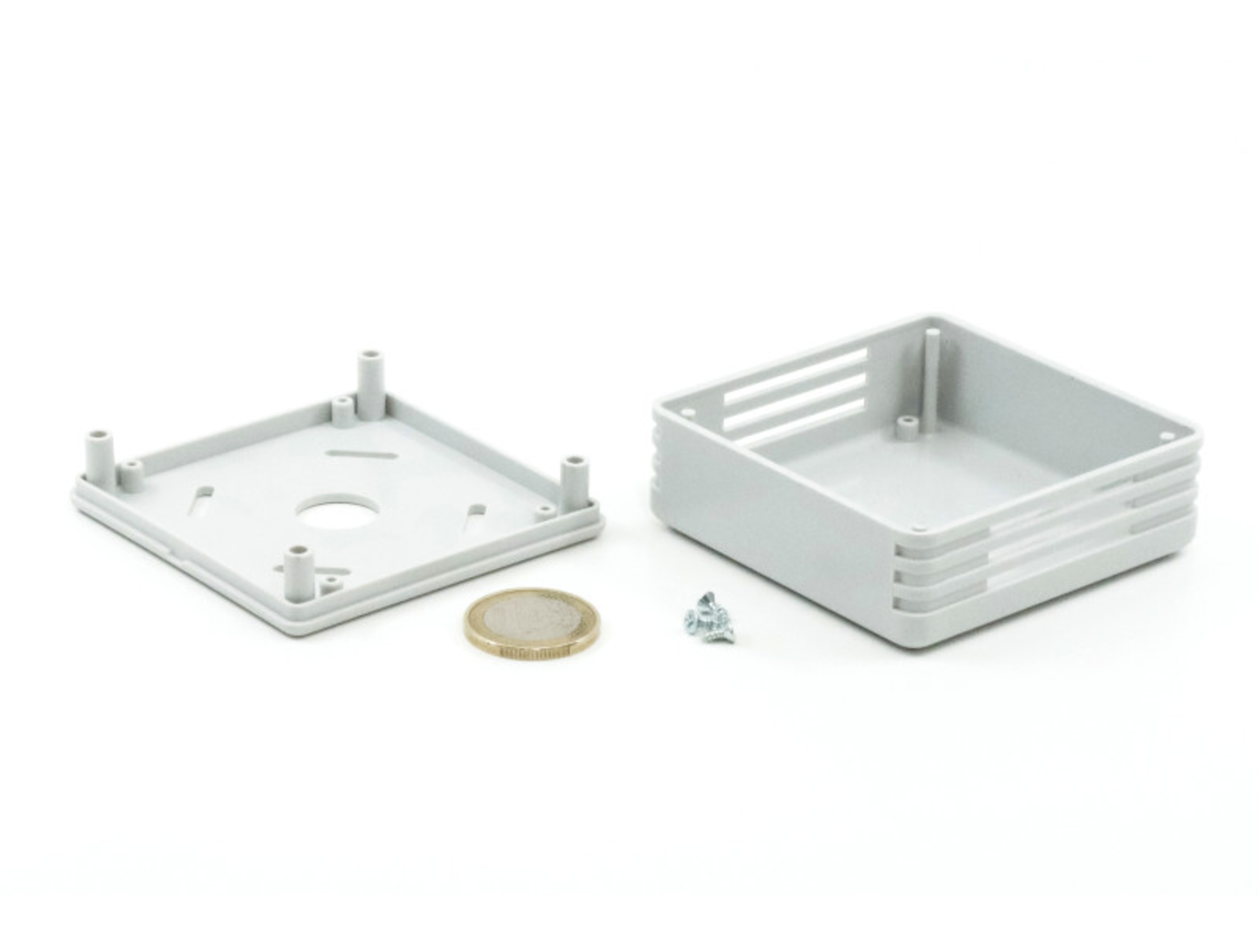

  • The PP116 model from Supertronic's Senses series is a wall-mountable plastic enclosure ideal for housing sensors, thermostats, or alarms. This enclosure is constructed from UL94-HB ABS, a material known for its strength and durability. A key feature is the openings or grilles on both sides of the enclosure, which facilitate ventilation and cable routing when needed. With external dimensions of 71 x 71 x 27 mm and internal dimensions of 65 x 65 x 19 mm, the PP116 offers compact yet ample space for a variety of electronic devices. The rear cover is perforated for easy wall mounting. This enclosure is perfect for applications such as sensors, IoT systems, control and measurement devices, and monitoring equipment, providing a functional and aesthetically pleasing solution. The PP116 also offers customization options through CNC machining and UV digital printing, allowing Supertronic to adapt the enclosure to the specific needs of each project to ensure a high-quality product and design that is suitable for every application.
Features

  • - Wall and desktop enclosures made of ABS in black, white or grey
    - Consisting of lower and upper part
    - Screw mounting or snap-in mounting
    - With or without lateral ventilation slits depending on model
    - Mounting holes on the back for wall mounting

Notice

Dimensions and Weights

Dimension: Length
  • 71 mm
Dimension: Width
  • 71 mm
Dimension: Height
  • 27 mm
