PP104L-S

Supertronic PP104 Wall/table housing ABS (Acrylonitrile Butadiene Styrene) 289mmx218mmx46mm gray

PP104GL
Manufacturer Part No.
PP104L-S
Schukat Part No.
PP104GL
Manufacturer
Supertronic
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

10 Pcs. in stock

Planned delivery time
Ø 4 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Notice
Cross-references:
Here you will find suitable Accessories for Enclosures.
Type
Wall/table housing
Dimension: Length
289 mm
Dimension: Width
218 mm
Dimension: Height
46 mm
Colour
gray
Material
ABS (Acrylonitrile Butadiene Styrene)
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Supertronic
Series
  • PP104
Product group
  • G4518
Material
  • ABS (Acrylonitrile Butadiene Styrene)
Colour
  • gray
Type
  • Wall/table housing
Type of Mounting
  • Screw
Product description
  • The PP104 model from Supertronic's Wallegant series is a plastic enclosure specifically designed to house communication, security, and home automation devices. Constructed from durable UL94-HB-ABS, this enclosure features an oval shape and a distinctive design that facilitates integration into a variety of environments. One of its most notable features is the easy front and side opening, which makes accessing internal devices convenient and straightforward. With external dimensions of 289 x 218 x 46 mm and internal dimensions of 264 x 180 x 21 mm, the PP104 offers ample space for a wide range of applications, including sensors, IoT systems, control and measurement devices, and monitoring equipment. This versatility makes it an ideal choice for a variety of technology needs. Furthermore, the PP104 offers customization options. Supertronic allows this enclosure to be tailored to the specific requirements of each project through CNC machining and UV digital printing. This ensures that each unit not only meets functional requirements but also stands out in terms of style and quality.
Features

  • - Wall mounting enclosures made of ABS with flanged lid in black, white or grey
    - Consisting of lower and upper part
    - Partly with a recessed area on the upper side to accommodate a membrane keyboard
    - Three-part lid, round-shaped, easily opened and accessible from the front and sides

Notice

Dimensions and Weights

Dimension: Length
  • 289 mm
Dimension: Width
  • 218 mm
Dimension: Height
  • 46 mm

Other Products

All Products of the Series
Loading...
PP104N-S
Supertronic

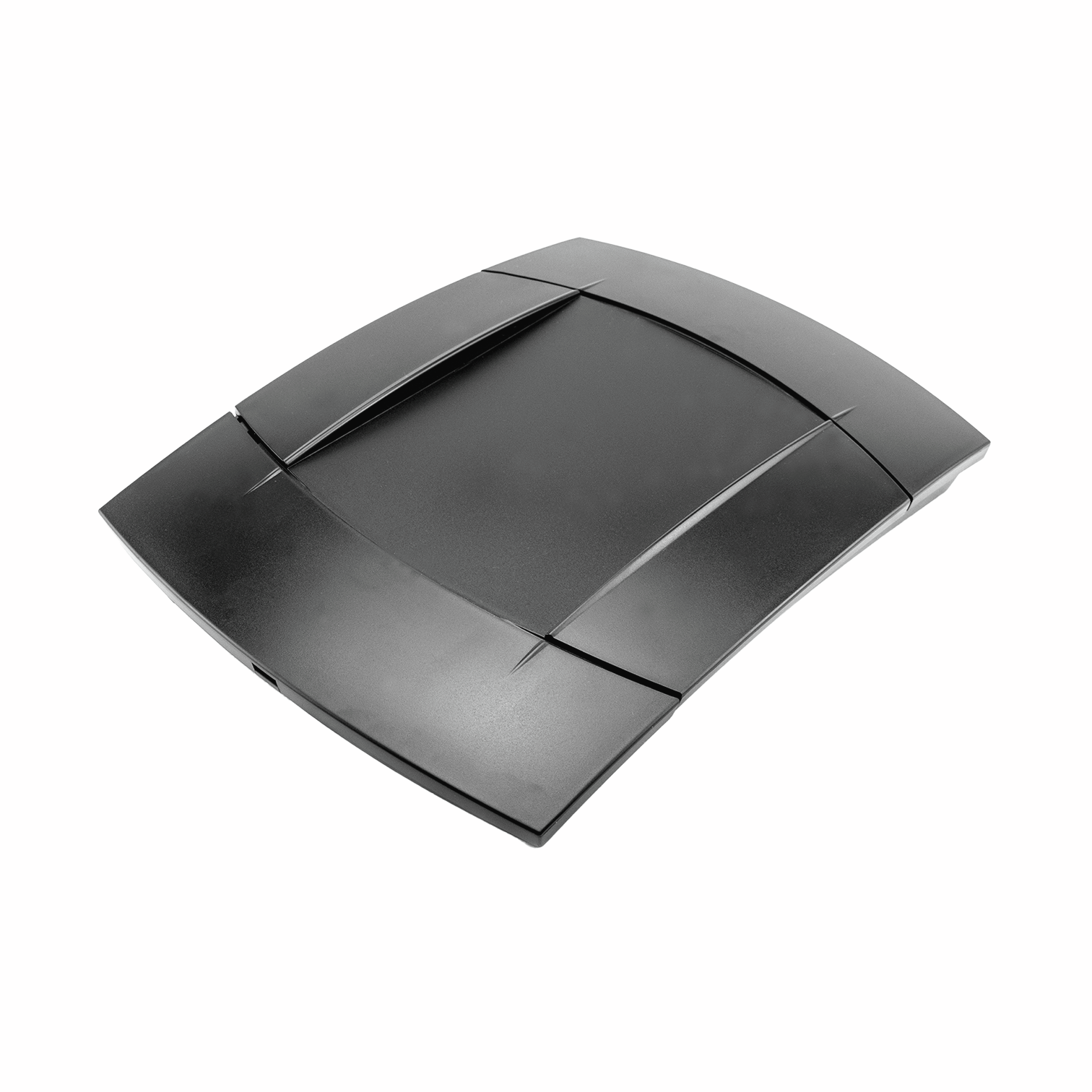

PP104 Wall/table housing ABS (Acrylonitrile Butadiene Styrene) 289mmx218mmx46mm black
