PP093N-S

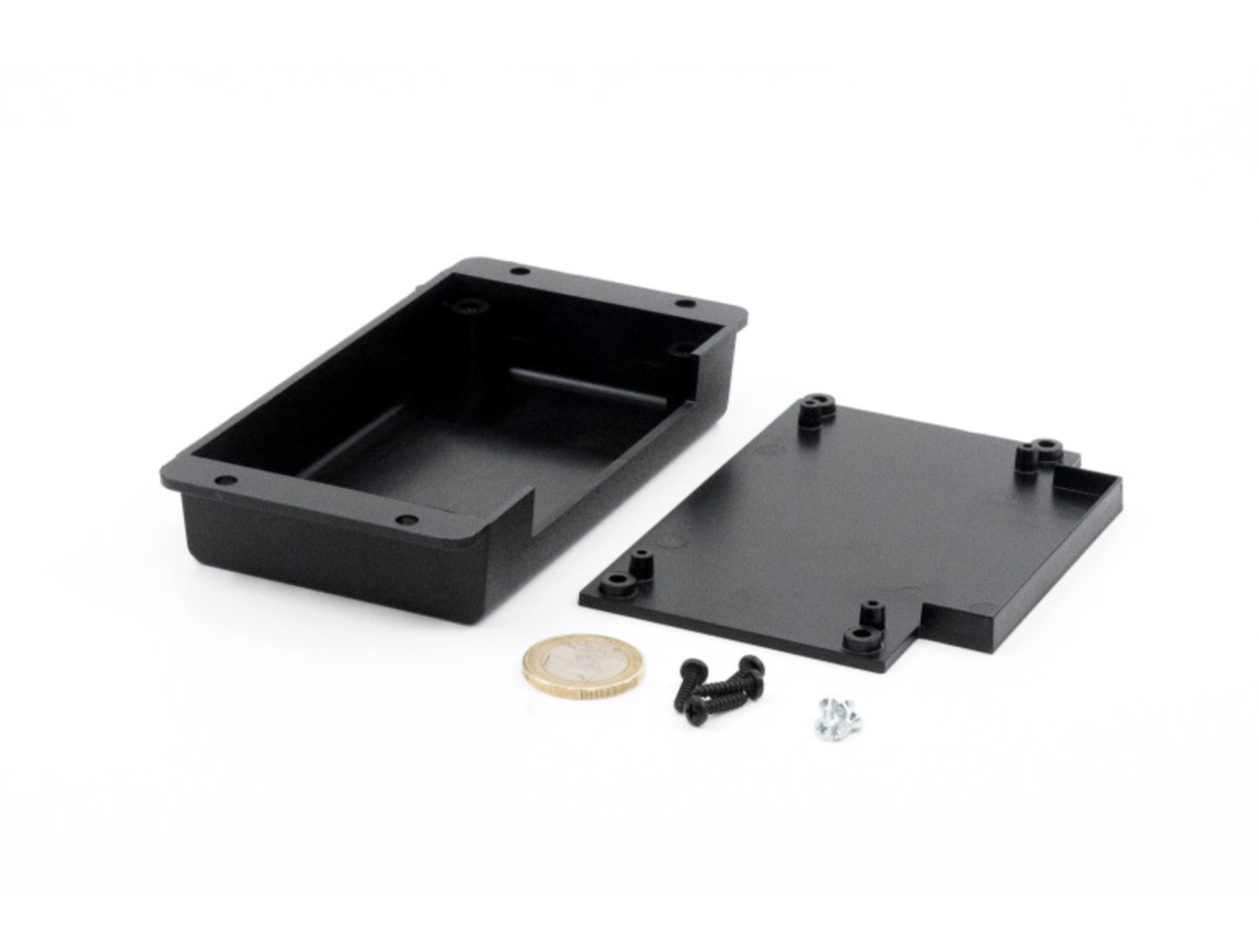

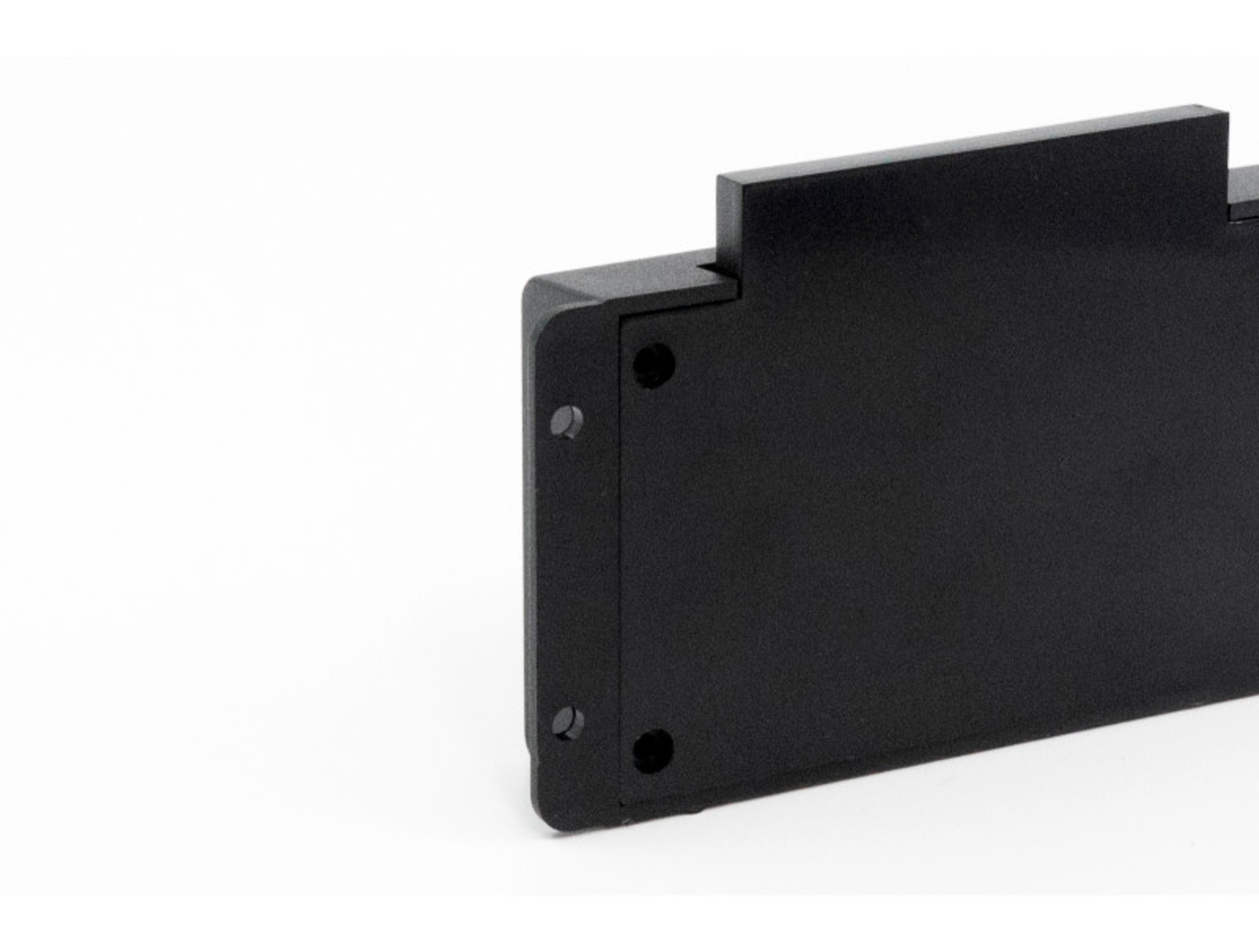

Supertronic PP93 Wall/table housing ABS (Acrylonitrile Butadiene Styrene) 133mmx78mmx23mm black

PP93SWPP93SW
Manufacturer Part No.
PP093N-S
Schukat Part No.
PP93SW
Manufacturer
Supertronic
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

10 Pcs. in stock

Planned delivery time
Ø 4 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Notice
Cross-references:
Here you will find suitable Accessories for Enclosures.
Type
Wall/table housing
Assembly Type
Screw mounting
Dimension: Length
133 mm
Dimension: Width
78 mm
Dimension: Height
23 mm
Design
Flange
Colour
black
Material
ABS (Acrylonitrile Butadiene Styrene)
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Supertronic
Series
  • PP93
Product group
  • G4518
Material
  • ABS (Acrylonitrile Butadiene Styrene)
Colour
  • black
Type
  • Wall/table housing
Assembly Type
  • Screw mounting
Type of Mounting
  • Screw
Design
  • Flange
Product description
  • The PP93 model from Supertronic's Alebox series is a plastic enclosure for wall mounting. It is made of durable UL94-HB ABS, which ensures durability and reliability. With slightly rounded corners, this enclosure is designed to be easily hung on the wall, with side ribs providing a secure hold. The external dimensions of the enclosure are 133 x 78 x 23 mm and the internal dimensions are 109 x 64 x 13 mm, providing compact but sufficient space for housing various devices. The enclosure consists of a lid and a bottom closure plate, with the lid featuring an outlet opening for the placement of an external terminal block. It also features an upper recess for attaching the cover or keypad, providing additional versatility and functionality. Each unit comes with the necessary locking screws (4 M3 screws) and circuit board mounting screws. This enclosure is ideal for a variety of applications, including sensors, IoT systems, control and measurement devices, and monitoring equipment. The PP93 model also offers customisation options through CNC machining and UV digital printing, allowing Supertronic to provide tailor-made, high-quality solutions for the specific requirements of each project.
Features

  • - Wall mounting enclosures made of ABS with flanged lid in black, white or grey
    - Consisting of lower and upper part
    - Screw mounting
    - Partly with a recessed area on the upper side to accommodate a membrane keyboard
    - with side opening

Notice

Dimensions and Weights

Dimension: Length
  • 133 mm
Dimension: Width
  • 78 mm
Dimension: Height
  • 23 mm

Other Products

All Products of the Series
Loading...
PP093W-S
Supertronic

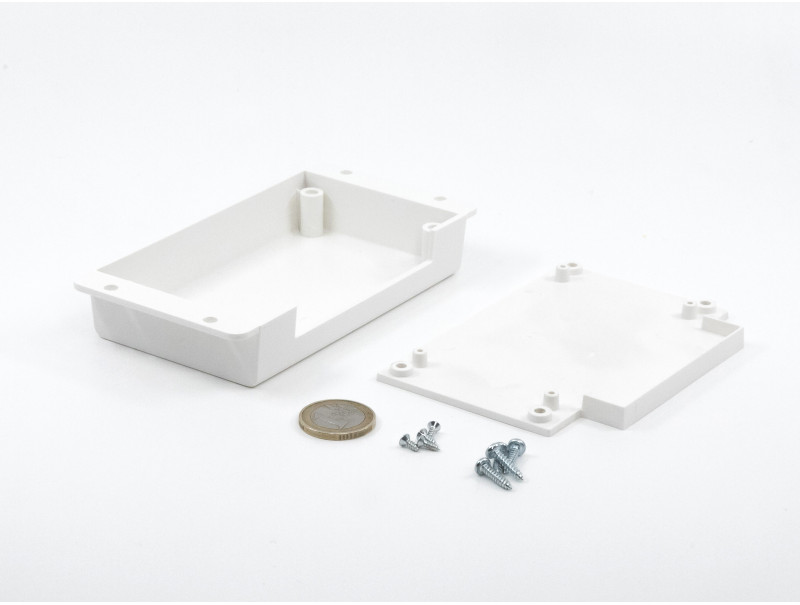

PP93 Wall/table housing ABS (Acrylonitrile Butadiene Styrene) 133mmx78mmx23mm white
