PP092W-S

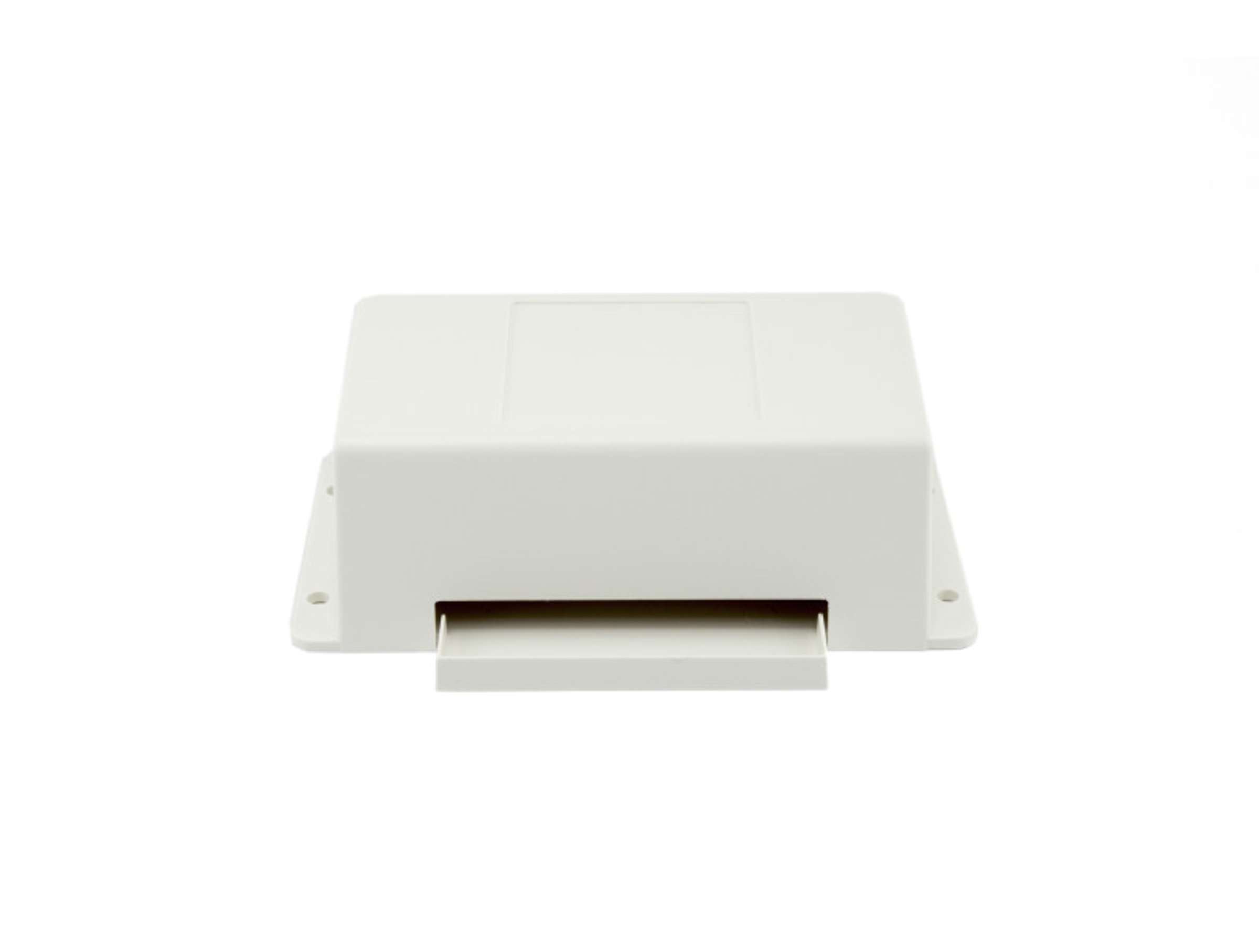

Supertronic PP92 Wall/table housing ABS (Acrylonitrile Butadiene Styrene) 133mmx78mmx45mm white

PP92WSPP92WS
Manufacturer Part No.
PP092W-S
Schukat Part No.
PP92WS
Manufacturer
Supertronic
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

26 Pcs. in stock

Planned delivery time
Ø 4 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Notice
Cross-references:
Here you will find suitable Accessories for Enclosures.
Type
Wall/table housing
Assembly Type
Screw mounting
Dimension: Length
133 mm
Dimension: Width
78 mm
Dimension: Height
45 mm
Design
Flange
Colour
white
Material
ABS (Acrylonitrile Butadiene Styrene)
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Supertronic
Series
  • PP92
Product group
  • G4518
Material
  • ABS (Acrylonitrile Butadiene Styrene)
Colour
  • white
Type
  • Wall/table housing
Assembly Type
  • Screw mounting
Type of Mounting
  • Screw
Design
  • Flange
Product description

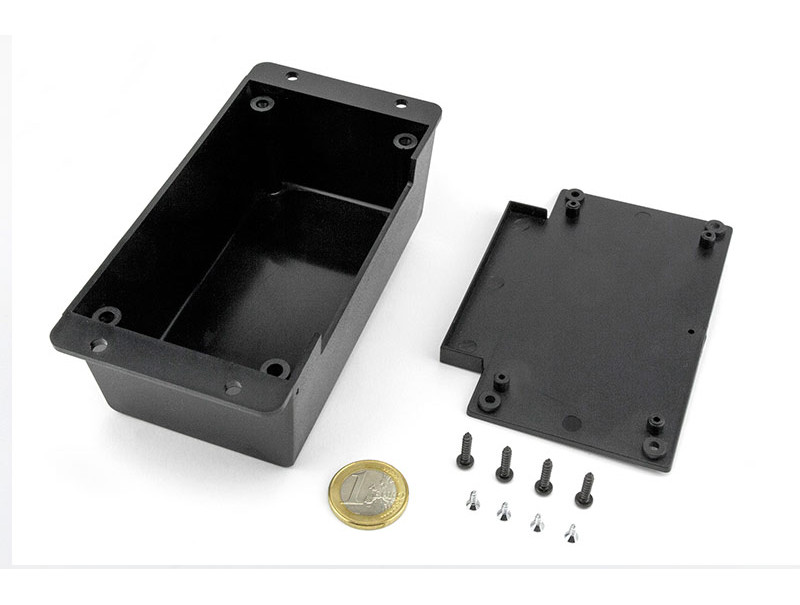

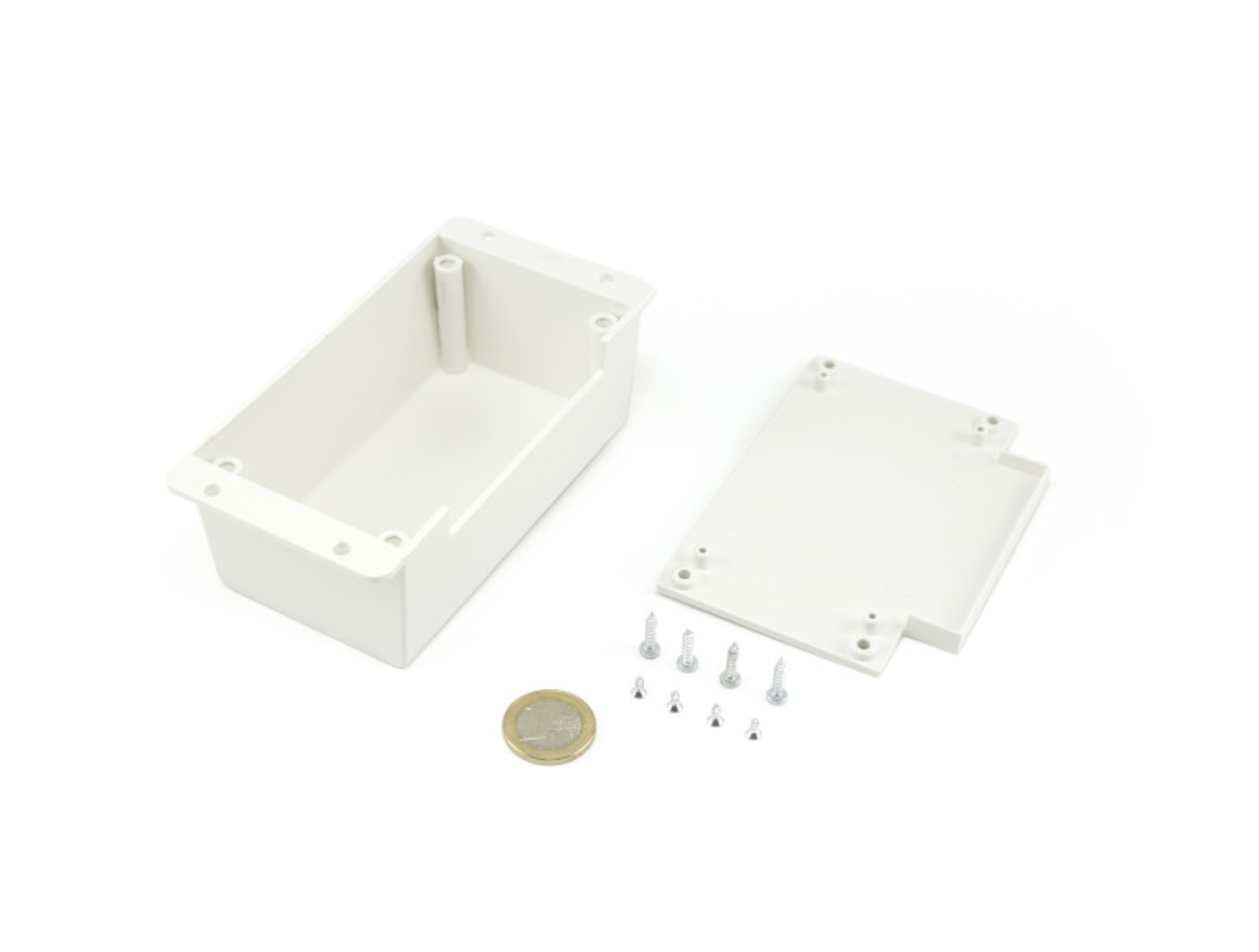

  • The PP92 model from Supertronic's Alebox series, designed for wall mounting, is a robust plastic enclosure made of ABS UL94-HB. This enclosure with slightly rounded corners is optimised for wall mounting and ensures a secure hold thanks to the side slats. The external dimensions of the enclosure are 133 x 78 x 45 mm, while the internal dimensions are 109 x 64 x 35 mm, providing sufficient space for various devices. The design includes a cover and a lower closure plate, with the special feature that the cover has an opening for the placement of an external connection strip. It also has an upper recess for attaching covers or keyboards, which increases its functionality. Each unit is supplied with the necessary locking screws (4 M3 screws) and circuit board mounting screws. This enclosure is ideal for applications such as sensors, IoT systems, control and measurement devices, and monitoring equipment. The PP92 also offers customisation options through CNC machining and UV digital printing, allowing Supertronic to tailor the enclosure to the specific requirements of each project while maintaining high quality and design standards.
Features

  • - Wall mounting enclosures made of ABS with flanged lid in black, white or grey
    - Consisting of lower and upper part
    - Screw mounting
    - Partly with a recessed area on the upper side to accommodate a membrane keyboard
    - with side opening

Notice

Dimensions and Weights

Dimension: Length
  • 133 mm
Dimension: Width
  • 78 mm
Dimension: Height
  • 45 mm
