PP071N-S

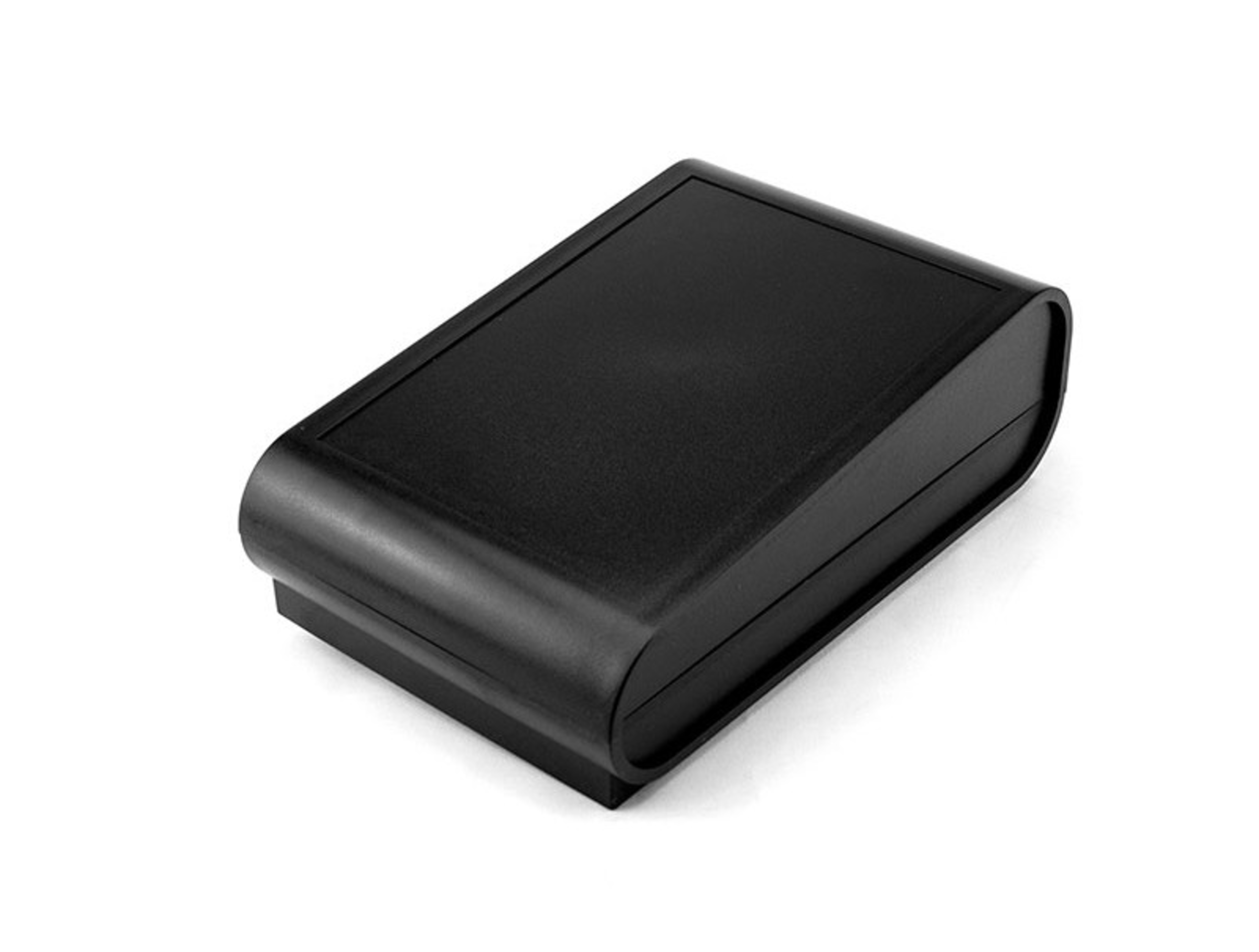

Supertronic PP71 Wall/table housing ABS (Acrylonitrile Butadiene Styrene) 218mmx140mmx76mm black IP65

PP71SWPP71SW
Manufacturer Part No.
PP071N-S
Schukat Part No.
PP71SW
Manufacturer
Supertronic
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

5 Pcs. in stock

Planned delivery time
Ø 4 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Notice
Cross-references:
Here you will find suitable Accessories for Enclosures.
Type
Wall/table housing
Dimension: Length
218 mm
Dimension: Width
140 mm
Dimension: Height
76 mm
Colour
black
Material
ABS (Acrylonitrile Butadiene Styrene)
Protection Class IP
IP65
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Supertronic
Series
  • PP71
Product group
  • G4550
Material
  • ABS (Acrylonitrile Butadiene Styrene)
Colour
  • black
Type
  • Wall/table housing
Type of Mounting
  • Screw
Product description

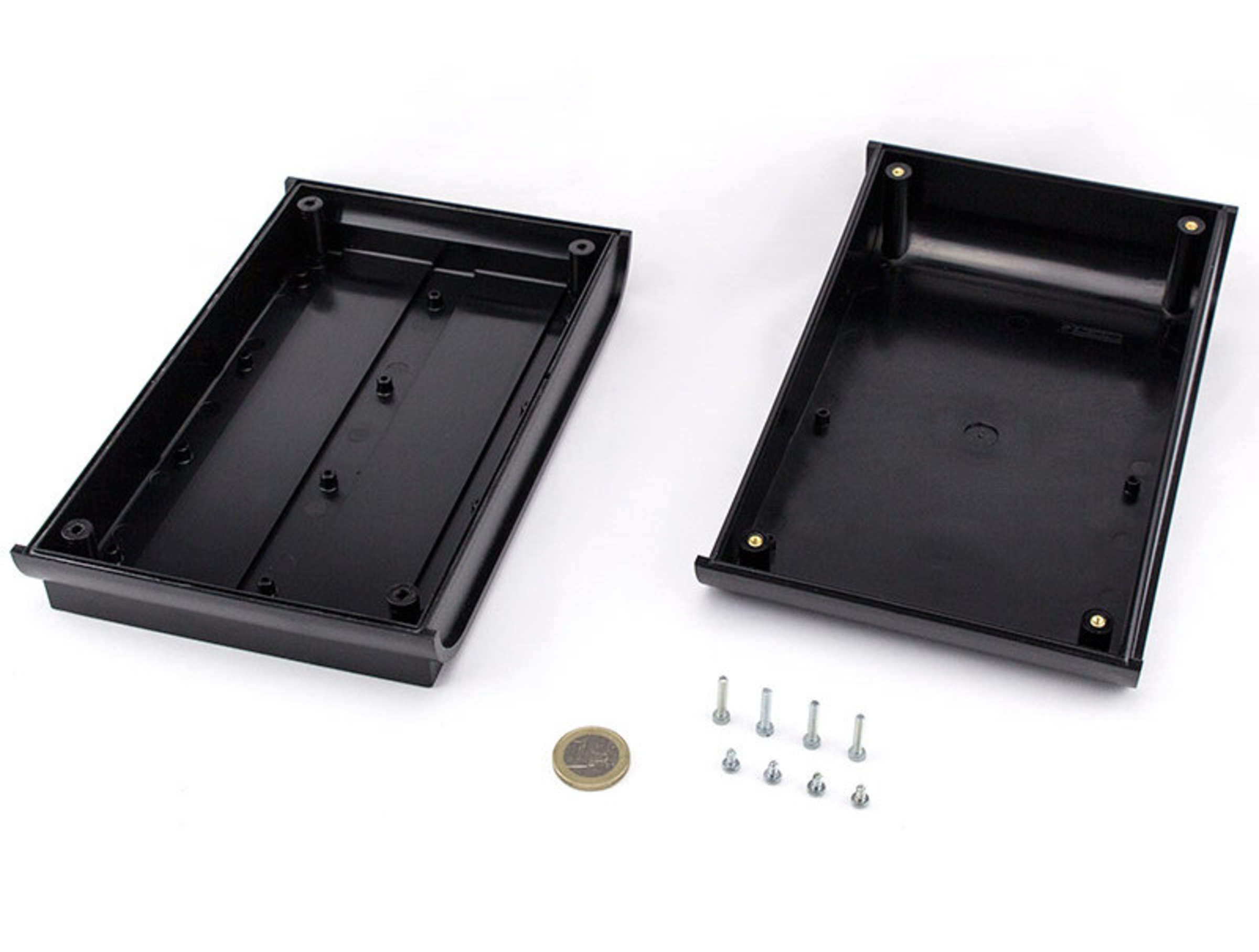

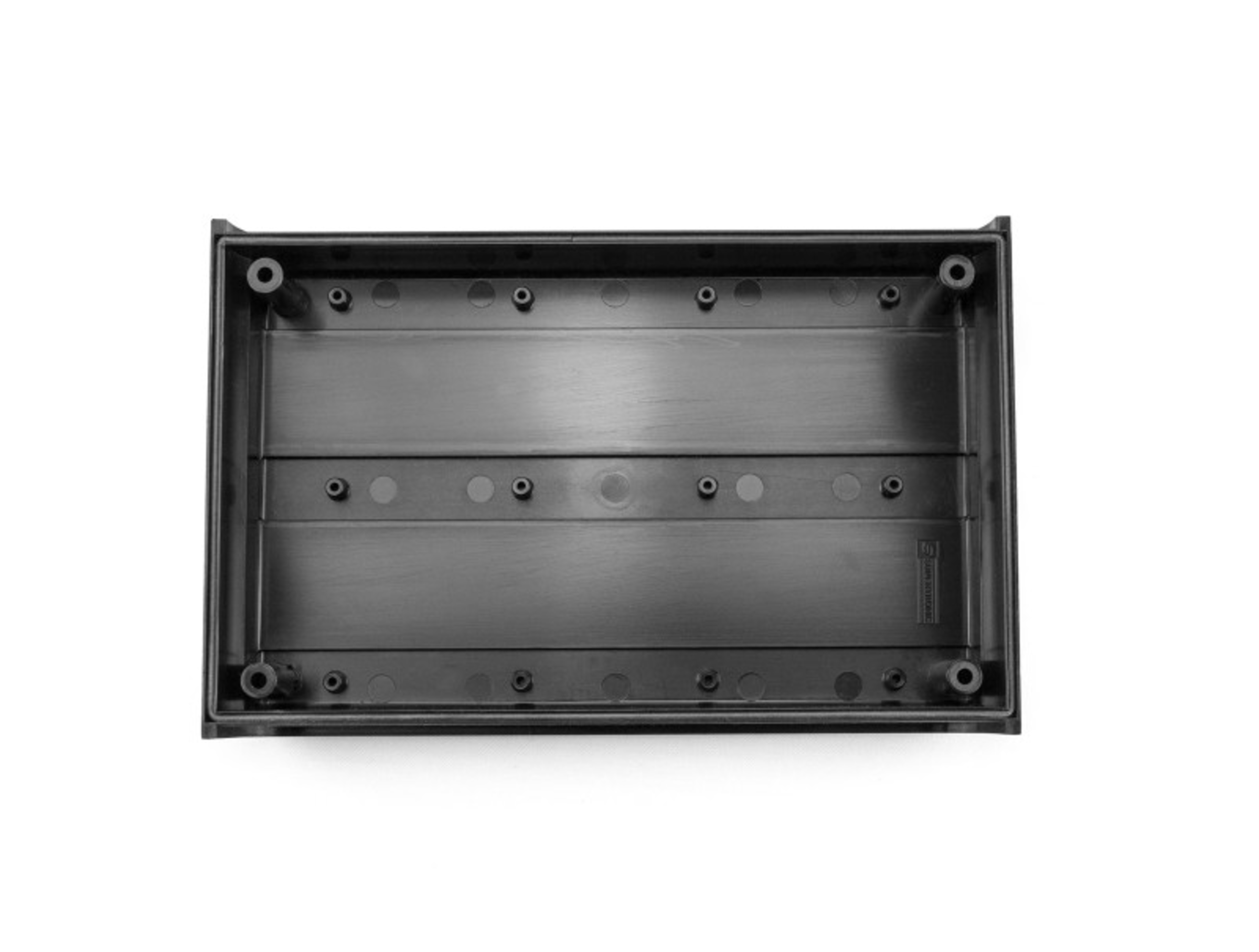

  • The PP71 model from Supertronic's Deskone series is a plastic enclosure designed for protection against environmental influences with its IP65 rating, ensuring water and dust resistance. Its robust construction makes it particularly suitable for outdoor use, guaranteeing complete protection from the elements. This state-of-the-art, oval-shaped enclosure, made of UL94-HB ABS, is perfectly suited for larger desktop devices requiring a slanted, recessed surface, ideal for membrane keypads. With external dimensions of 218 x 140 x 76 mm and internal dimensions of 203 x 125 x 38 mm, it offers ample space for housing a variety of electronic components. The PP71 model, consisting of a housing and a lid secured with four M3 screws, is a hallmark of quality. It proves to be an excellent choice for integrated systems, transmitters, barometers, and devices for measuring and controlling gas, humidity, and temperature that require a high level of protection. Like all Supertronic products, the PP71 can be customized to specific requirements through CNC machining and UV digital printing services.
Features

  • - Desktop enclosures made of ABS in black, white or grey
    - Screw mounting or snap-in mounting
    - Consisting of lower part with base and upper part, partly with removable front panel
    - Front oval
    - With slightly sloping panel for a frontal membrane keybord
    - Protection class IP65
    - Partly with a recessed area on the upper side to accommodate a membrane keyboard

Notice

Dimensions and Weights

Dimension: Length
  • 218 mm
Dimension: Width
  • 140 mm
Dimension: Height
  • 76 mm

Safety/Certifications

Protection Class IP
  • IP65
