PP070N-S

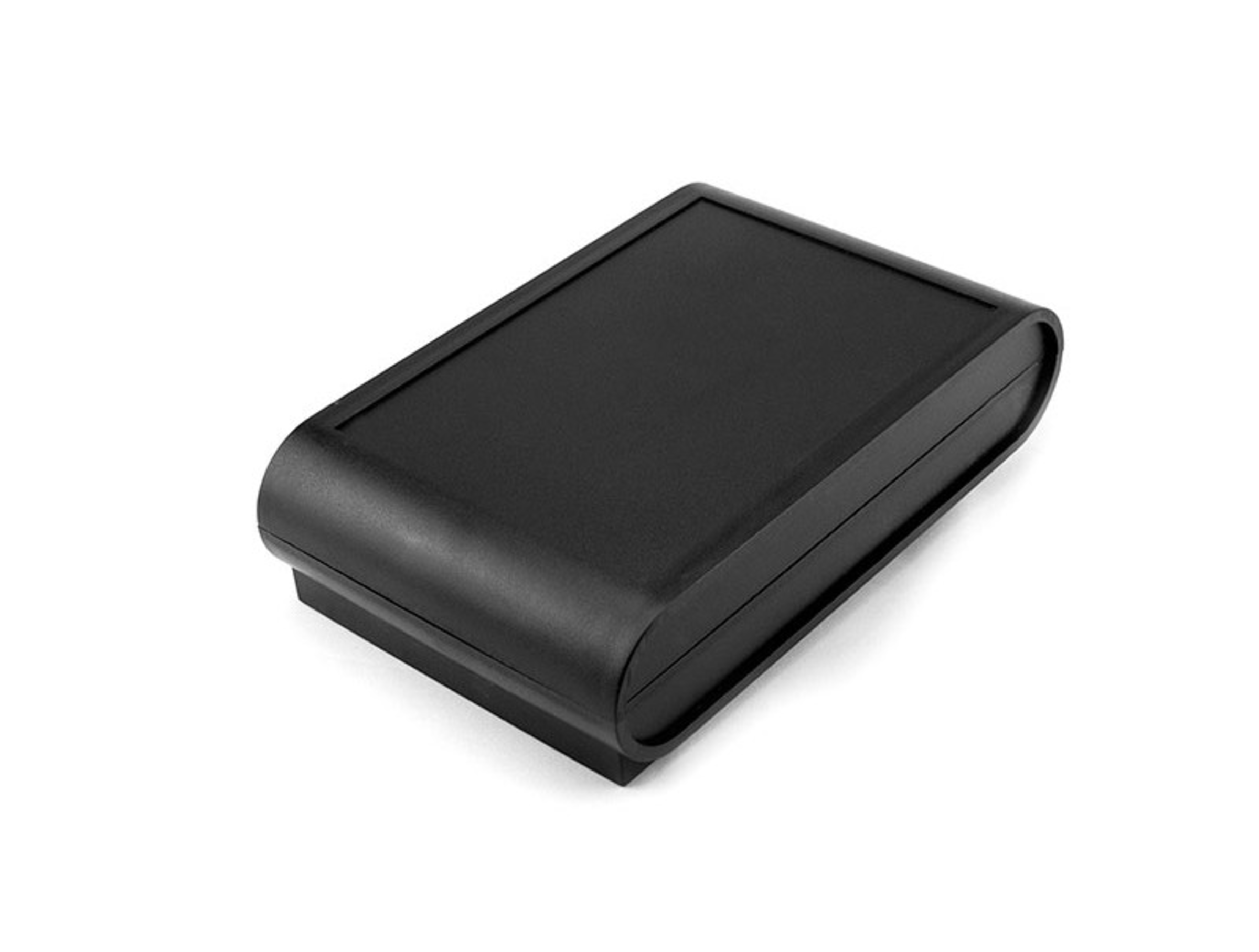

Supertronic PP70 Wall/table housing ABS (Acrylonitrile Butadiene Styrene) 218mmx140mmx55mm black IP65

PP70SWPP70SW
Manufacturer Part No.
PP070N-S
Schukat Part No.
PP70SW
Manufacturer
Supertronic
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

11 Pcs. in stock

Planned delivery time
Ø 4 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Notice
Cross-references:
Here you will find suitable Accessories for Enclosures.
Type
Wall/table housing
Dimension: Length
218 mm
Dimension: Width
140 mm
Dimension: Height
55 mm
Colour
black
Material
ABS (Acrylonitrile Butadiene Styrene)
Protection Class IP
IP65
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Supertronic
Series
  • PP70
Product group
  • G4550
Material
  • ABS (Acrylonitrile Butadiene Styrene)
Colour
  • black
Type
  • Wall/table housing
Type of Mounting
  • Screw
Product description

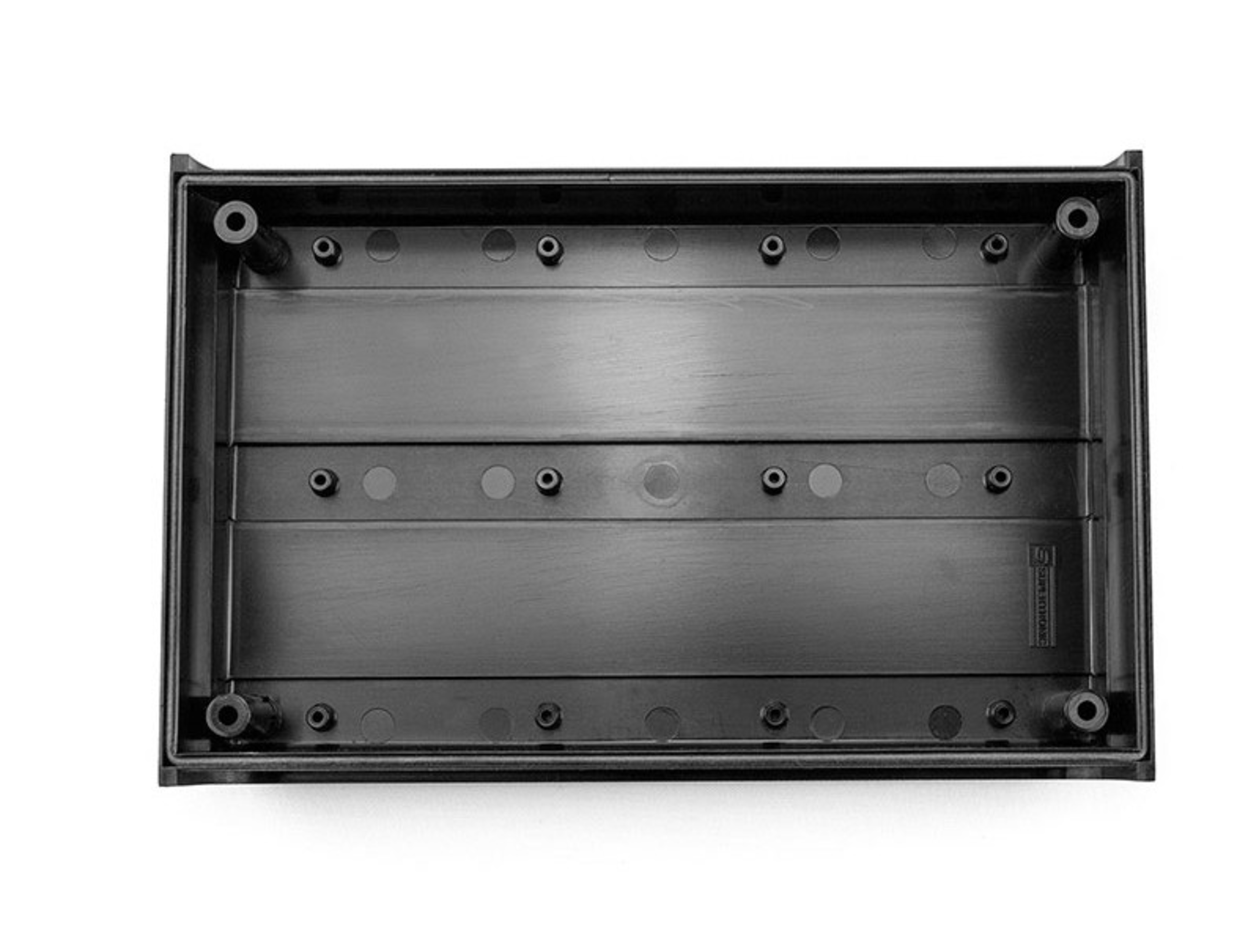

  • The PP70 model from Supertronic's Deskone series is a desktop enclosure made of plastic with IP65 water and dust resistance. This robust and elegant enclosure is constructed from UL94-HB-ABS, and its oval design is perfectly suited for larger desktop devices, especially those requiring a recessed surface for a membrane keypad or adhesive pad. With external dimensions of 218 x 140 x 55 mm and internal dimensions of 203 x 125 x 43 mm, the PP70 offers a spacious and secure solution. It rests on a solid base and consists of two parts: a housing and a cover, which are securely assembled with four M3 screws. The PP70 is ideal for a wide range of applications, including embedded systems, transmitters, barometers, and temperature and humidity measurement and control devices, providing excellent protection against the elements. True to Supertronics' commitment to customer-specific customization, the PP70 can also be adapted to specific requirements through CNC machining and UV digital printing services.
Features

  • - Desktop enclosures made of ABS in black, white or grey
    - Screw mounting or snap-in mounting
    - Consisting of lower part with base and upper part, partly with removable front panel
    - Front oval
    - Protection class IP65
    - Partly with a recessed area on the upper side to accommodate a membrane keyboard

Notice

Dimensions and Weights

Dimension: Length
  • 218 mm
Dimension: Width
  • 140 mm
Dimension: Height
  • 55 mm

Safety/Certifications

Protection Class IP
  • IP65
