PP069N-S

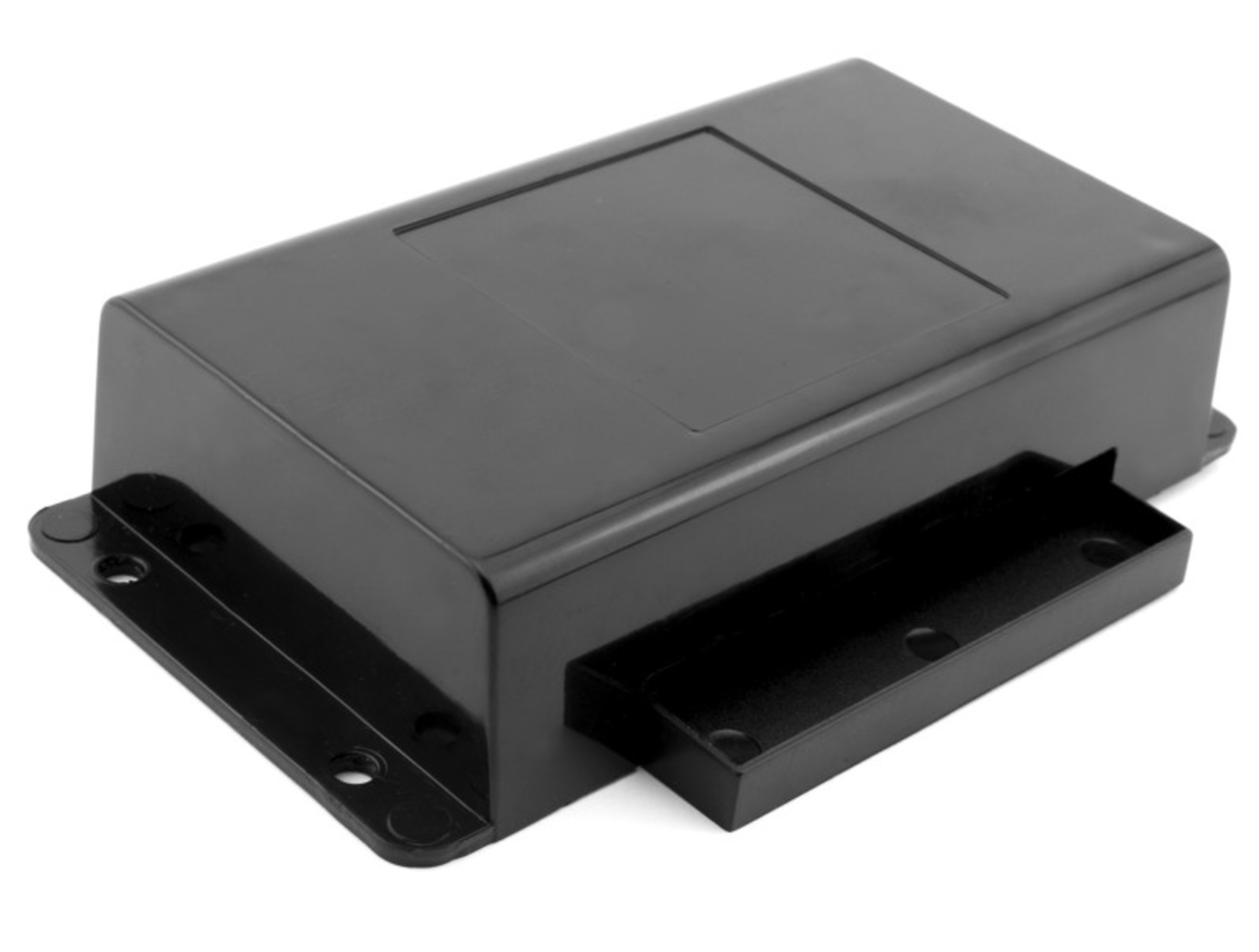

Supertronic PP69 Wall/table housing ABS (Acrylonitrile Butadiene Styrene) 133mmx78mmx30mm black

PP69SWPP69SW
Manufacturer Part No.
PP069N-S
Schukat Part No.
PP69SW
Manufacturer
Supertronic
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

33 Pcs. in stock

Planned delivery time
Ø 4 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Notice
Cross-references:
Here you will find suitable Accessories for Enclosures.
Type
Wall/table housing
Assembly Type
Screw mounting
Dimension: Length
133 mm
Dimension: Width
78 mm
Dimension: Height
30 mm
Design
Flange
Colour
black
Material
ABS (Acrylonitrile Butadiene Styrene)
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Supertronic
Series
  • PP69
Product group
  • G4518
Material
  • ABS (Acrylonitrile Butadiene Styrene)
Colour
  • black
Type
  • Wall/table housing
Assembly Type
  • Screw mounting
Type of Mounting
  • Screw
Design
  • Flange
Product description

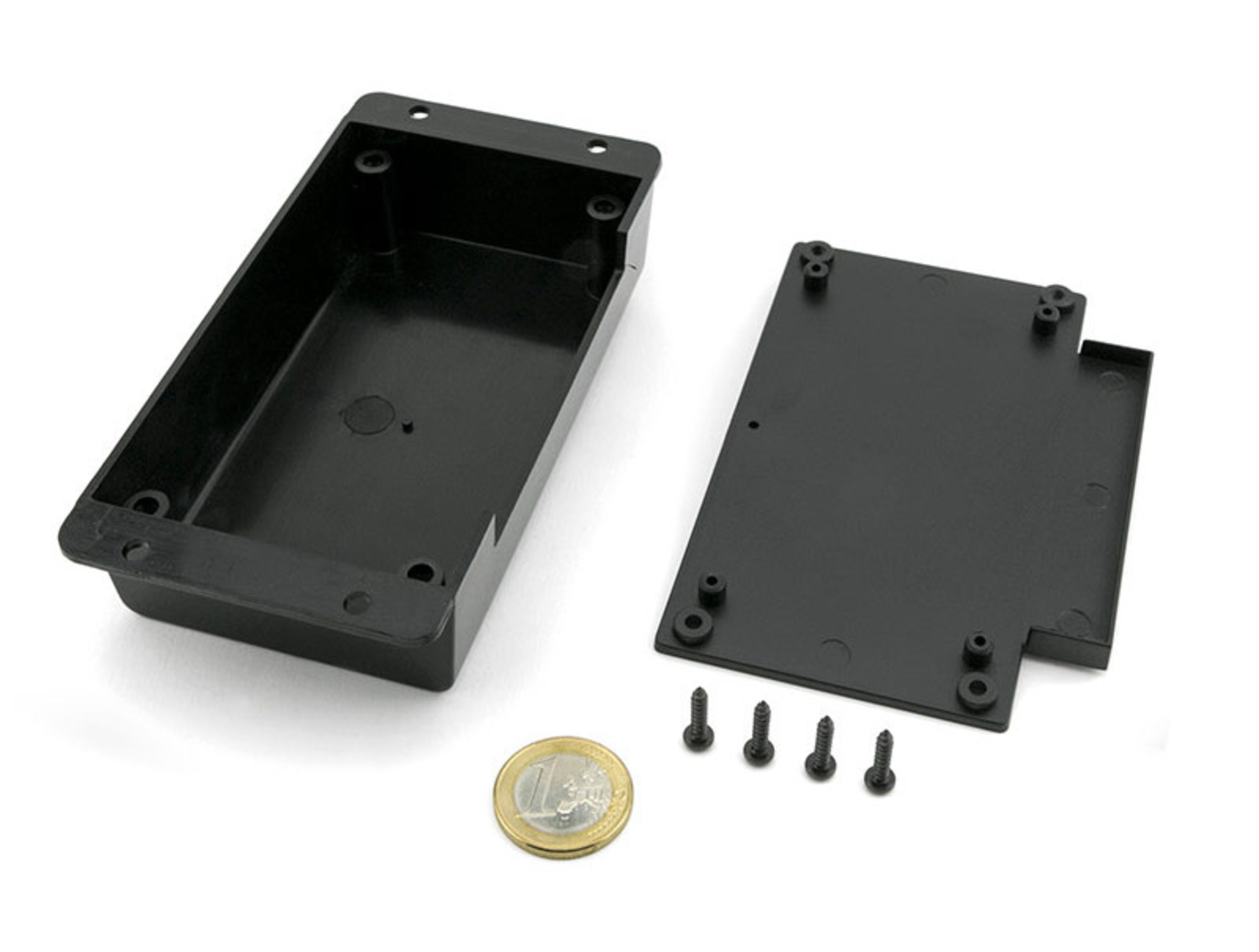

  • The PP69 model from Supertronic's Alebox series is a plastic enclosure that combines functionality and robustness. Made of durable UL94-HB-ABS, it features smoothed corners and is ideally suited for wall mounting. It has perforated side ribs for easy installation and a bottom panel secured with four M3 screws, facilitating the integration of an external terminal block. With external dimensions of 133 x 78 x 30 mm and internal dimensions of 109 x 64 x 20 mm, this enclosure is perfectly suited for housing a wide variety of electronic devices. It also features a top cutout, ideal for attaching covers or keypads, and a side opening, further enhancing its versatility. Each unit comes with screws for closing and securely holding the circuit, ensuring the integrity of the enclosed components. And true to Supertronics' commitment to adaptability, the PP69 can be customized to specific requirements using CNC machining and UV digital printing.
Features

  • - Wall mounting enclosures made of ABS with flanged lid in black, white or grey
    - Consisting of lower and upper part
    - Partly with a recessed area on the upper side to accommodate a membrane keyboard
    - with side opening

Notice

Dimensions and Weights

Dimension: Length
  • 133 mm
Dimension: Width
  • 78 mm
Dimension: Height
  • 30 mm

Other Products

All Products of the Series
Loading...

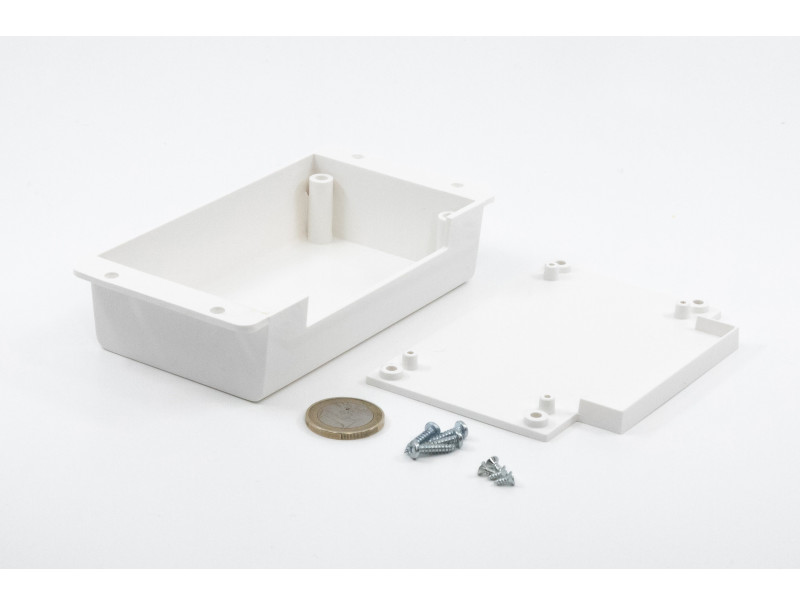

PP069W-S
