PP021N-S

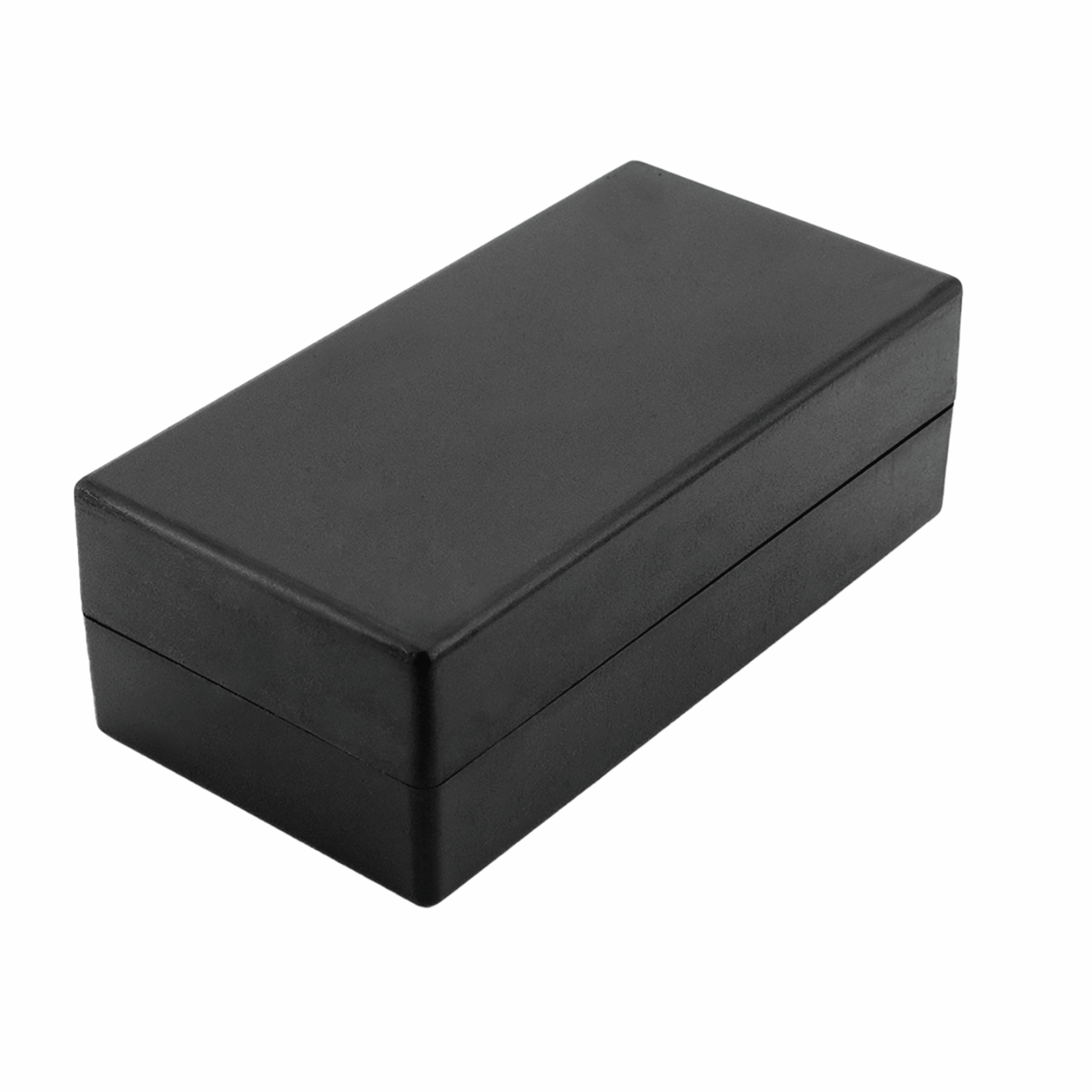

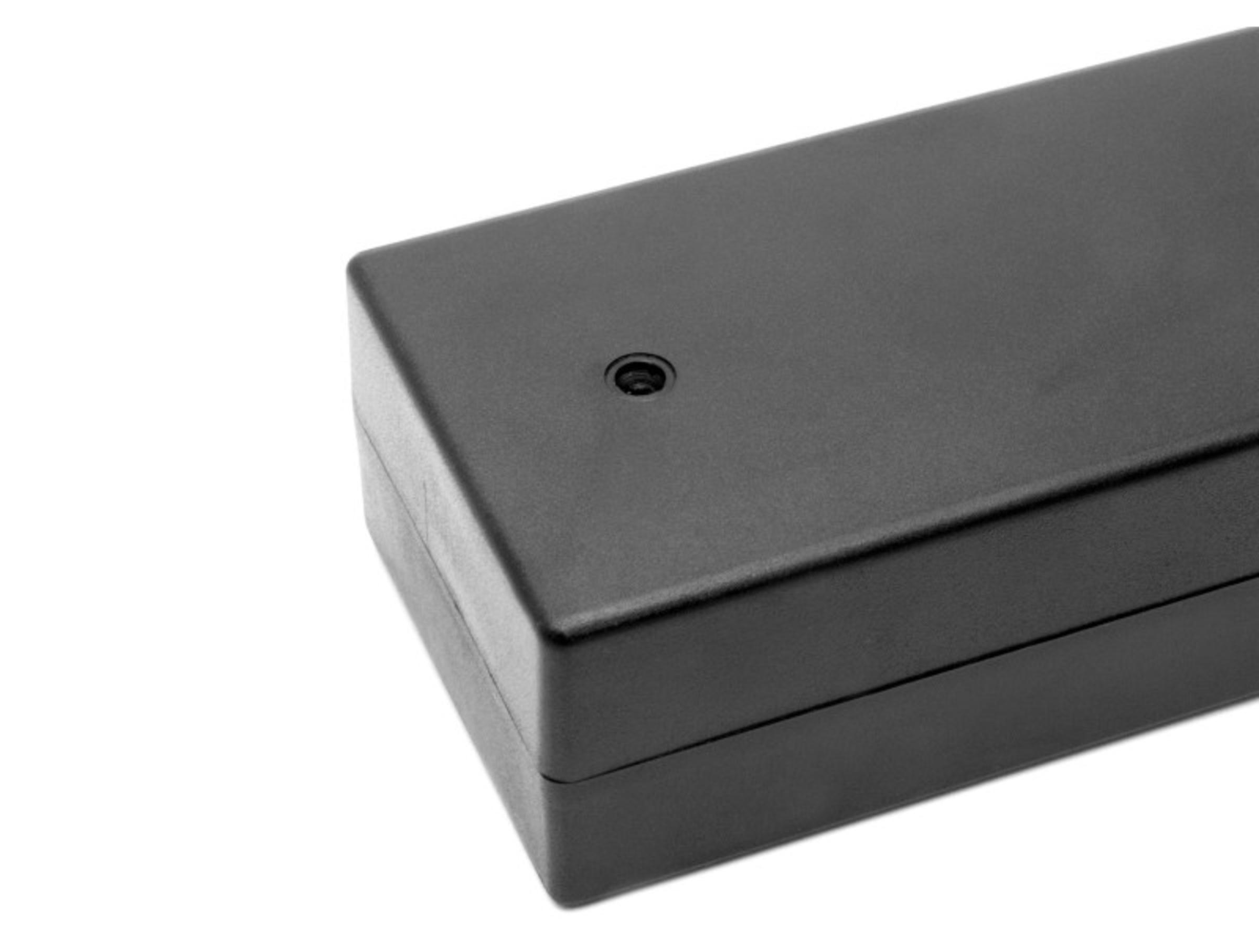

Supertronic PP21 Plastic Enclosure ABS (Acrylonitrile Butadiene Styrene) 107mmx55mmx36mm black

PP21SWPP21SW
Manufacturer Part No.
PP021N-S
Schukat Part No.
PP21SW
Manufacturer
Supertronic
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

11 Pcs. in stock

Planned delivery time
Ø 4 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Notice
Cross-references:
Here you will find suitable Accessories for Enclosures.
Type
Plastic Enclosure
Dimension: Length
107 mm
Dimension: Width
55 mm
Dimension: Height
36 mm
Colour
black
Material
ABS (Acrylonitrile Butadiene Styrene)
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Supertronic
Series
  • PP21
Product group
  • G4312
Material
  • ABS (Acrylonitrile Butadiene Styrene)
Colour
  • black
Type
  • Plastic Enclosure
Type of Mounting
  • Screw
Product description
  • The PP21 model from Supertronic's Roundel series is a versatile enclosure distinguished by its robustness and functional design. Constructed from ABS UL94-HB, a material renowned for its durability and strength, this enclosure measures 107 x 55 x 36 mm externally and boasts a spacious internal dimension of 102 x 50 x 28 mm, making it an ideal option for housing a wide variety of electronic devices. It is particularly well-suited for sensors, controllers, monitoring systems, IoT solutions, automation, smart building systems, and HVAC applications. A mounting screw is included to ensure secure and stable installation of internal components. As part of Supertronic's customization program, the PP21 model can be further customized through CNC machining and UV digital printing, providing a fully bespoke solution to meet the specific needs of each customer.
Features

  • - Small enclosure made of ABS in black, white or grey
    - Consisting of lower and upper part
    - Screw mounting or snap-in mounting

Notice

Dimensions and Weights

Dimension: Length
  • 107 mm
Dimension: Width
  • 55 mm
Dimension: Height
  • 36 mm
