PP017N-S

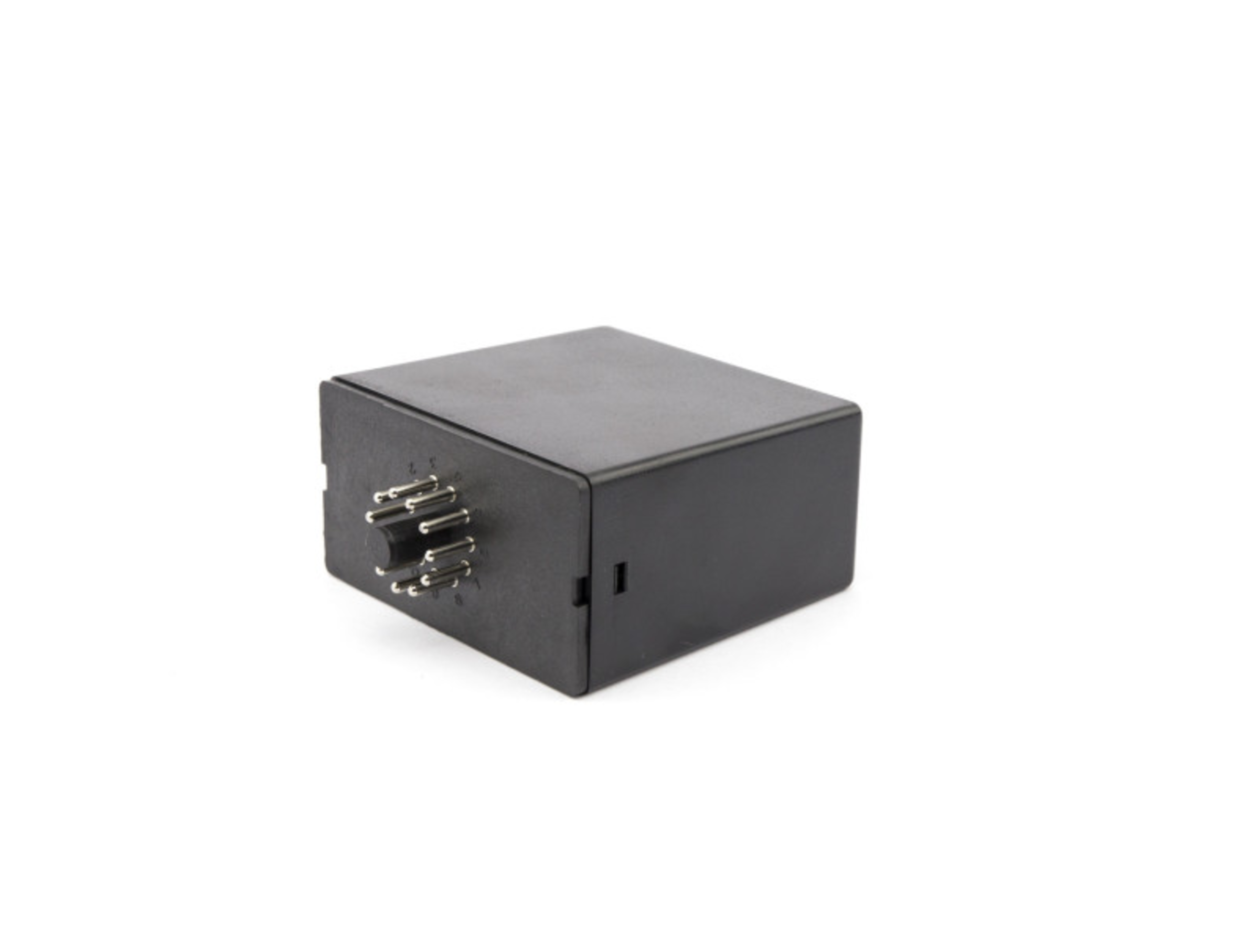

Supertronic PP17 Plug housing PPE (polyphenylene ether) 92mmx81mmx42mm black

PP17SWPP17SWPP17SW
Manufacturer Part No.
PP017N-S
Schukat Part No.
PP17SW
Manufacturer
Supertronic
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

20 Pcs. in stock

Planned delivery time
Ø 4 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Notice
Cross-references:
Here you will find suitable Accessories for Enclosures.
Type
Plug housing
Dimension: Length
92 mm
Dimension: Width
81 mm
Dimension: Height
42 mm
Specifications
removable side panel
Colour
black
Material
PPE (polyphenylene ether)
RoHS-Conform

Specifications

Close all

General

Manufacturer
  • Supertronic
Series
  • PP17
Product group
  • G4812
Material
  • PPE (polyphenylene ether)
Colour
  • black
Type
  • Plug housing
Specifications
  • removable side panel
Product description

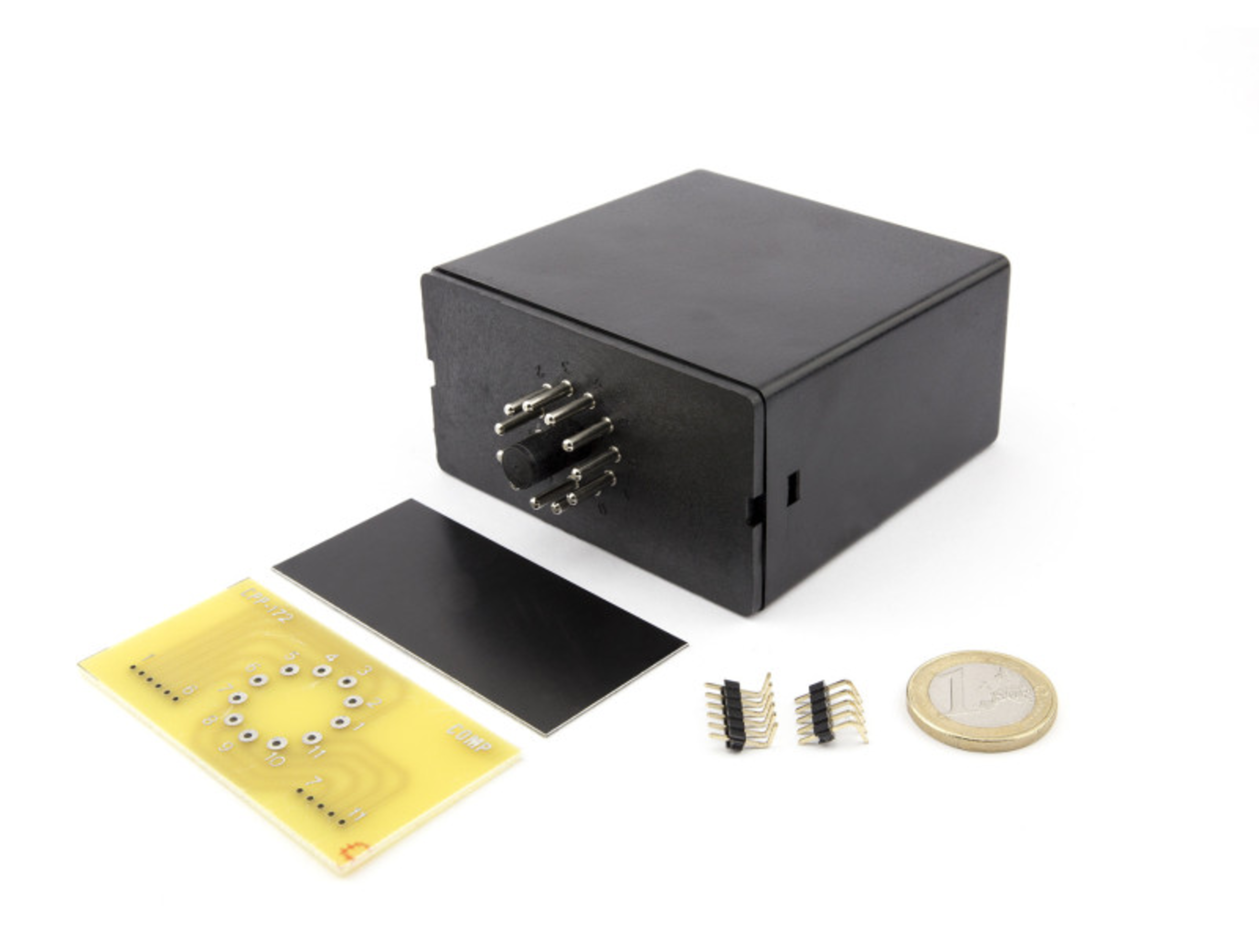

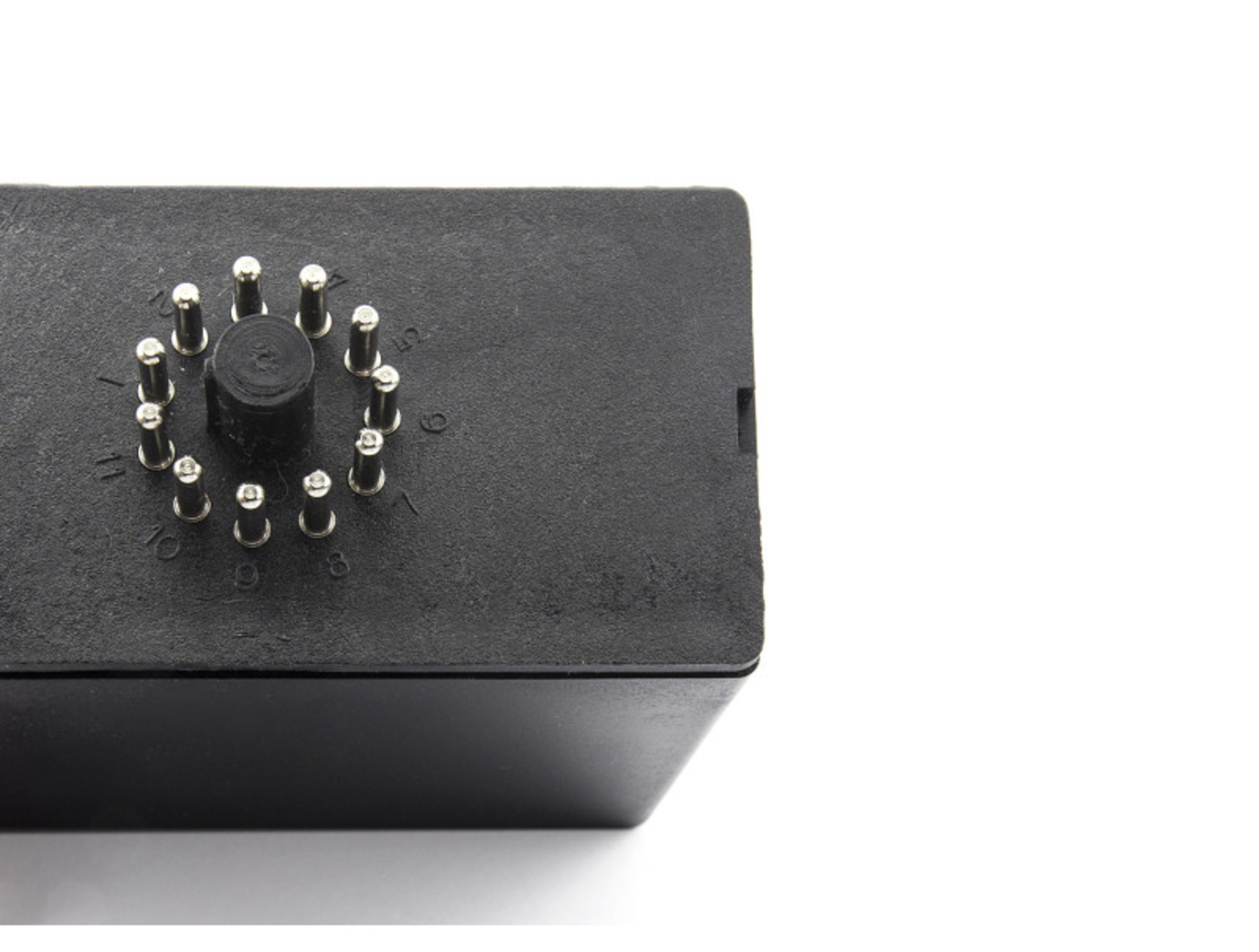

  • The PP17 model from Supertronic’s Pins series is a plastic enclosure for analogue and digital control applications. This enclosure is made from ABS UL94-HB for the body and NORYL V.0 for the base, combining durability with a sophisticated design. Its external dimensions of 92 x 81 x 42 mm and an internal space of 74 x 62 x 36 mm make it ideal for housing a wide range of components. The highlight is the 11-pin plug, which is soldered to the socket to ensure a secure and efficient connection. It is supplied with a standard circuit and additional 5 and 6 (2.54) pins for soldering into the circuit, demonstrating exceptional versatility. The locking cover, fitted with 11 pigtail connectors, guarantees optimal contact. The PP17 model has been specially developed for measuring time, temperature and other key parameters, and is perfectly suited to a wide range of applications across various industries. This model is available in an elegant black finish (RAL 9005) and not only meets functional expectations but also adds a touch of elegance to any environment. In line with the Supertronic philosophy, this model can be customised using CNC machining and UV digital printing to meet the specific requirements of each customer.
Features

  • - Enclosure made of ABS and Noryl in black
    - Solution for electrical devices with standard connectors
    - Removable front plate with 8-pole (PP50SW) eg. 11-Pole (PP50USW, PP17SW) brass pins, which is mounted with 2 clips
    - Integrated circuit included

Notice

Dimensions and Weights

Dimension: Length
  • 92 mm
Dimension: Width
  • 81 mm
Dimension: Height
  • 42 mm
