PP011N-S

Supertronic PP11 DIN installation housing 134mm x 97mm x 48mm black

Manufacturer Part No.
PP011N-S
Schukat Part No.
PP11SW
Manufacturer
Supertronic
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

10 Pcs. in stock

Planned delivery time
Ø 4 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Type
DIN installation housing
Assembly Type
Screw mounting
Dimension: Length
134 mm
Dimension: Width
97 mm
Dimension: Height
48 mm
Colour
black
Material
PPE (polyphenylene ether)
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Supertronic
Series
  • PP11
Material
  • PPE (polyphenylene ether)
Colour
  • black
Type
  • DIN installation housing
Assembly Type
  • Screw mounting
Features

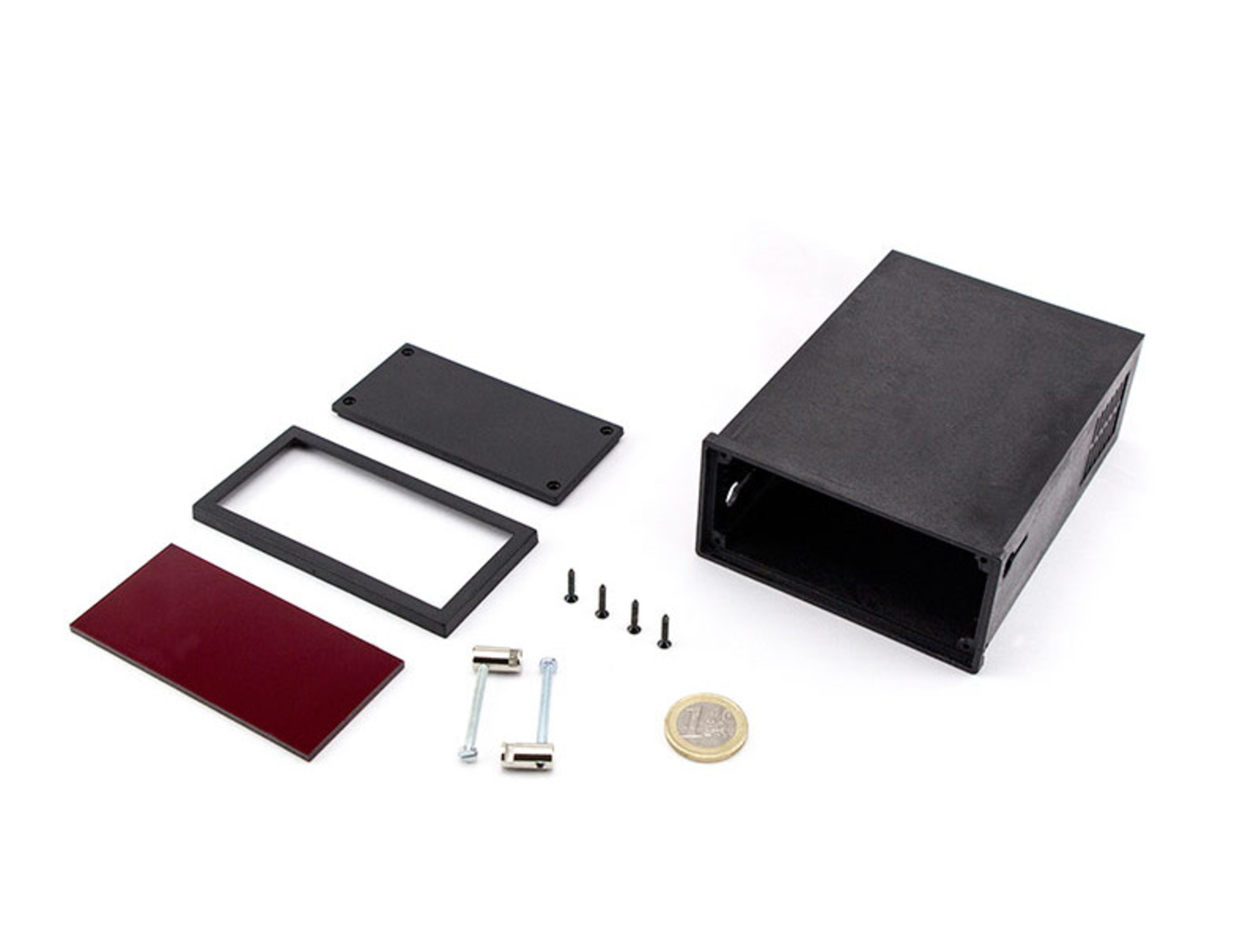

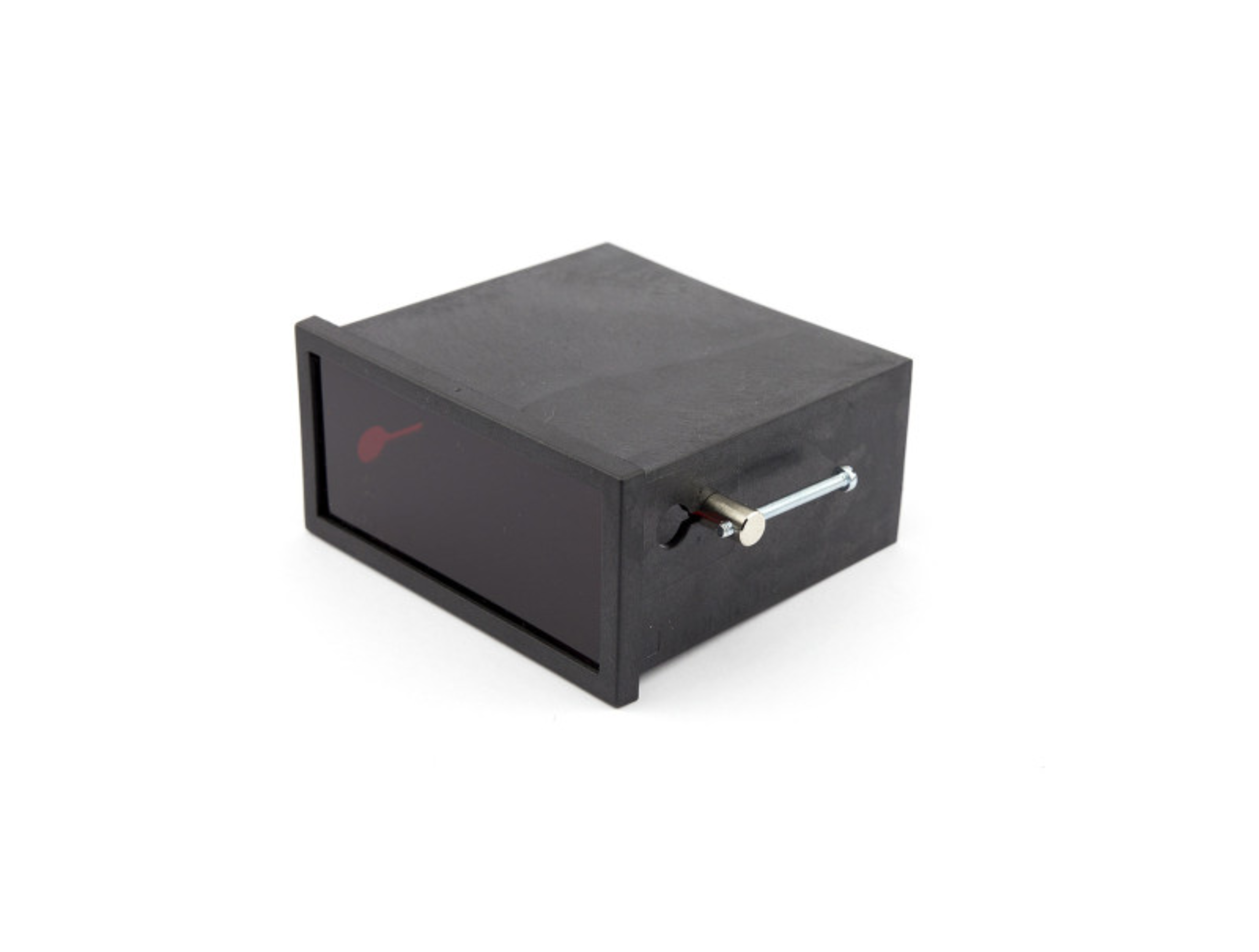

  • - Enclosure made of Noryl, compliant with DIN 43700, self-extinguishing
    - 134x97x48mm
    - Rear side removable black panel

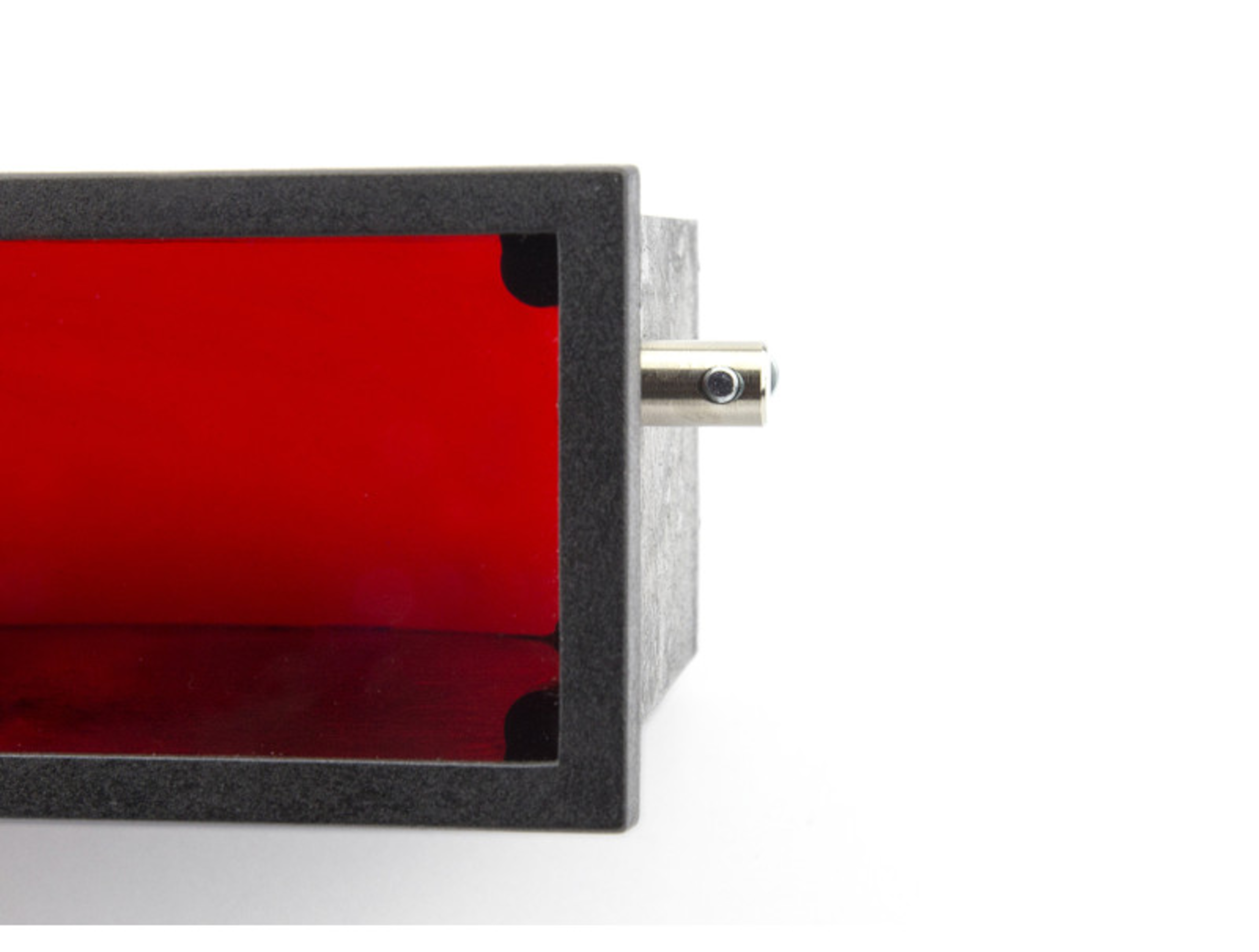

    - Front side black frame and removable red plexiglass panel
    - Vertical rails inside, in order to make circuit placing easier
    - Lateral tabs for fixing the case
    - Vent grille on each side of the case
    - The lower part of the case has a locking lid with 4 screws which makes its machining easier (output for cables, connectors, etc.)

Dimensions and weights

Dimension: Length
  • 134 mm
Dimension: Width
  • 97 mm
Dimension: Height
  • 48 mm

Safety/Certifications

Standards
  • DIN 43700
