PP009N-S

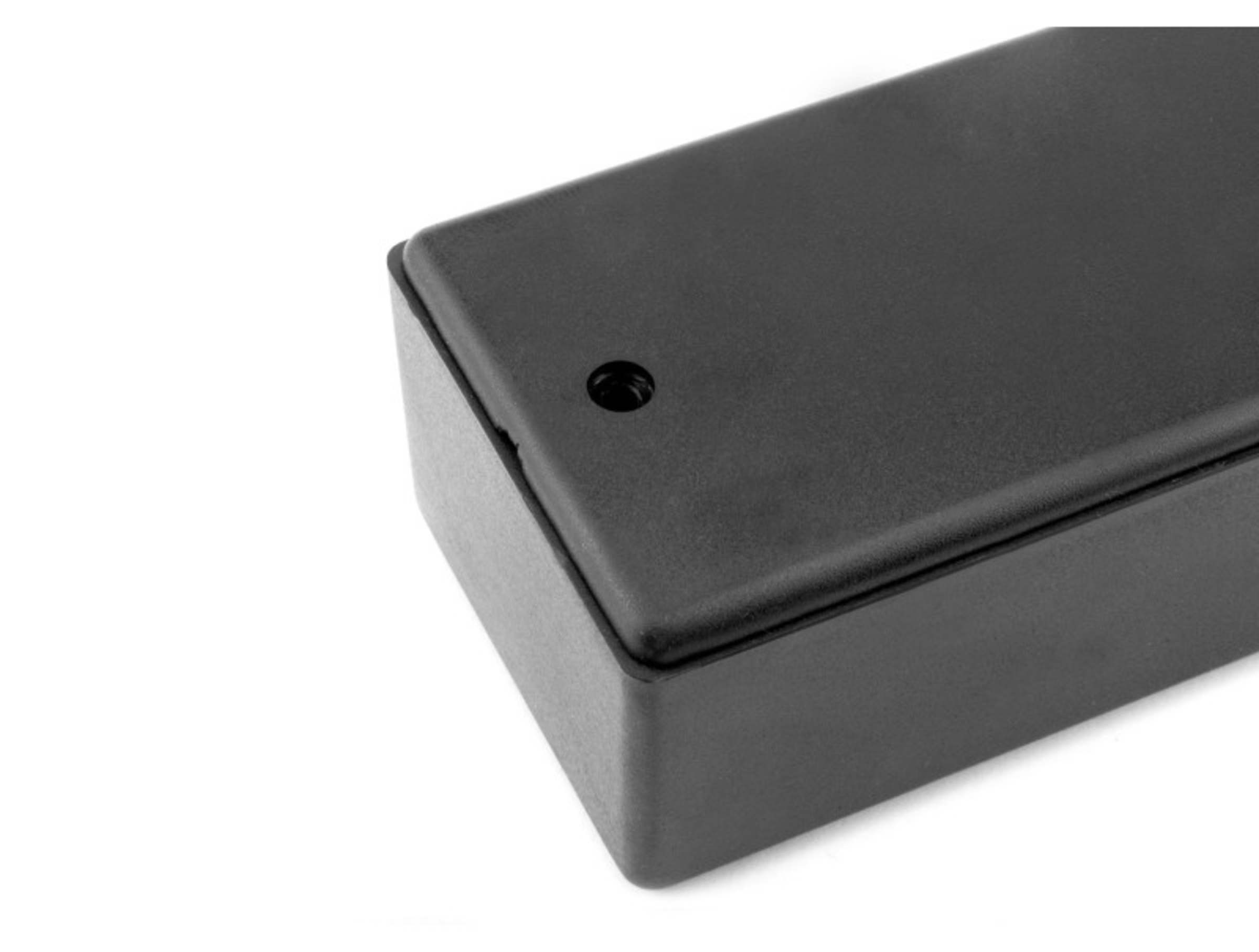

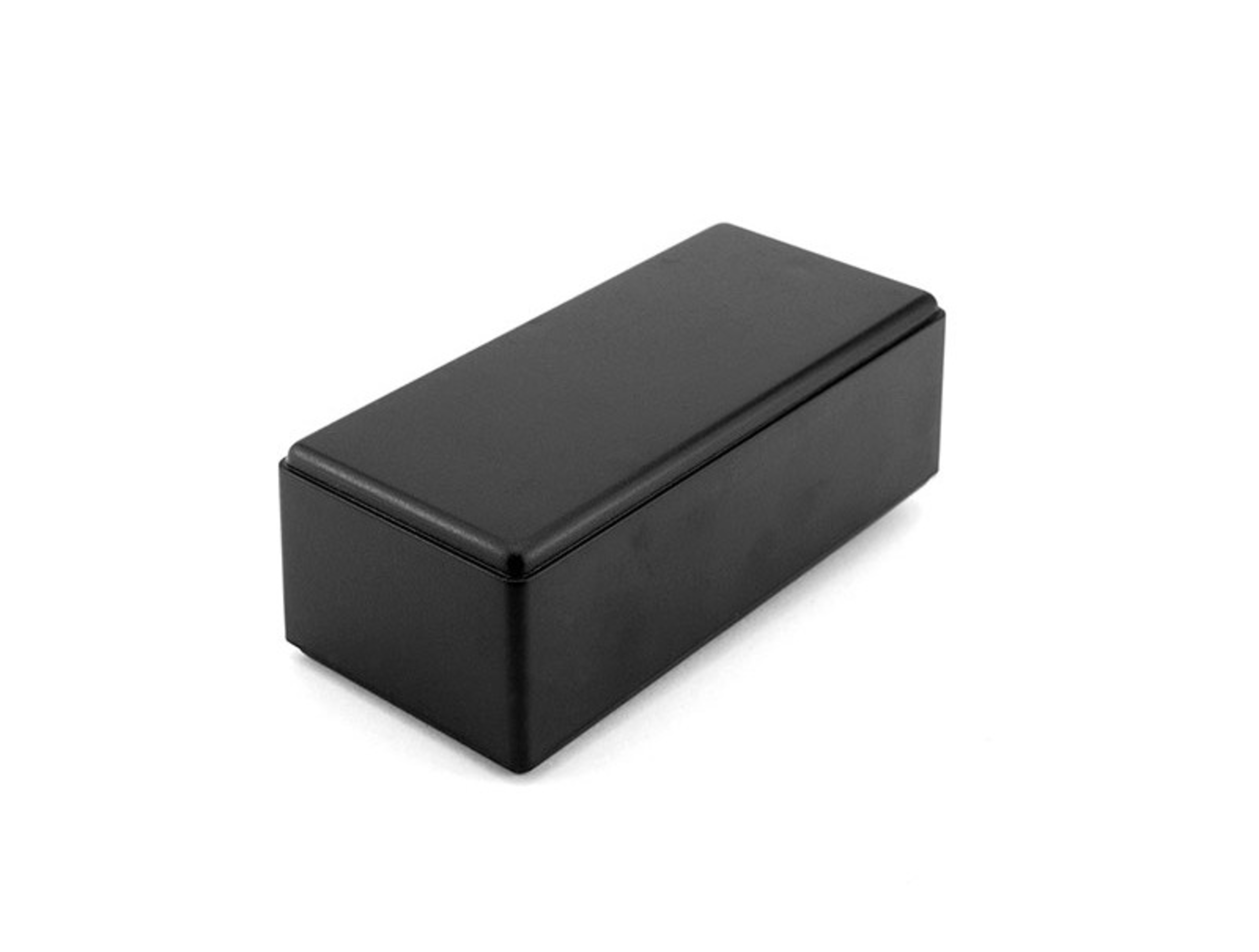

Supertronic PP9 Plastic housing ABS (Acrylonitrile Butadiene Styrene) 121mmx56mmx42mm black

PP9SWPP9SW
Manufacturer Part No.
PP009N-S
Schukat Part No.
PP9SW
Manufacturer
Supertronic
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

285 Pcs. in stock

Planned delivery time
Ø 4 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Notice
Cross-references:
Here you will find suitable Accessories for Enclosures.
Type
Plastic housing
Dimension: Length
121 mm
Dimension: Width
56 mm
Dimension: Height
42 mm
Colour
black
Material
ABS (Acrylonitrile Butadiene Styrene)
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Supertronic
Series
  • PP9
Product group
  • G4312
Material
  • ABS (Acrylonitrile Butadiene Styrene)
Colour
  • black
Type
  • Plastic housing
Type of Mounting
  • Screw
Product description

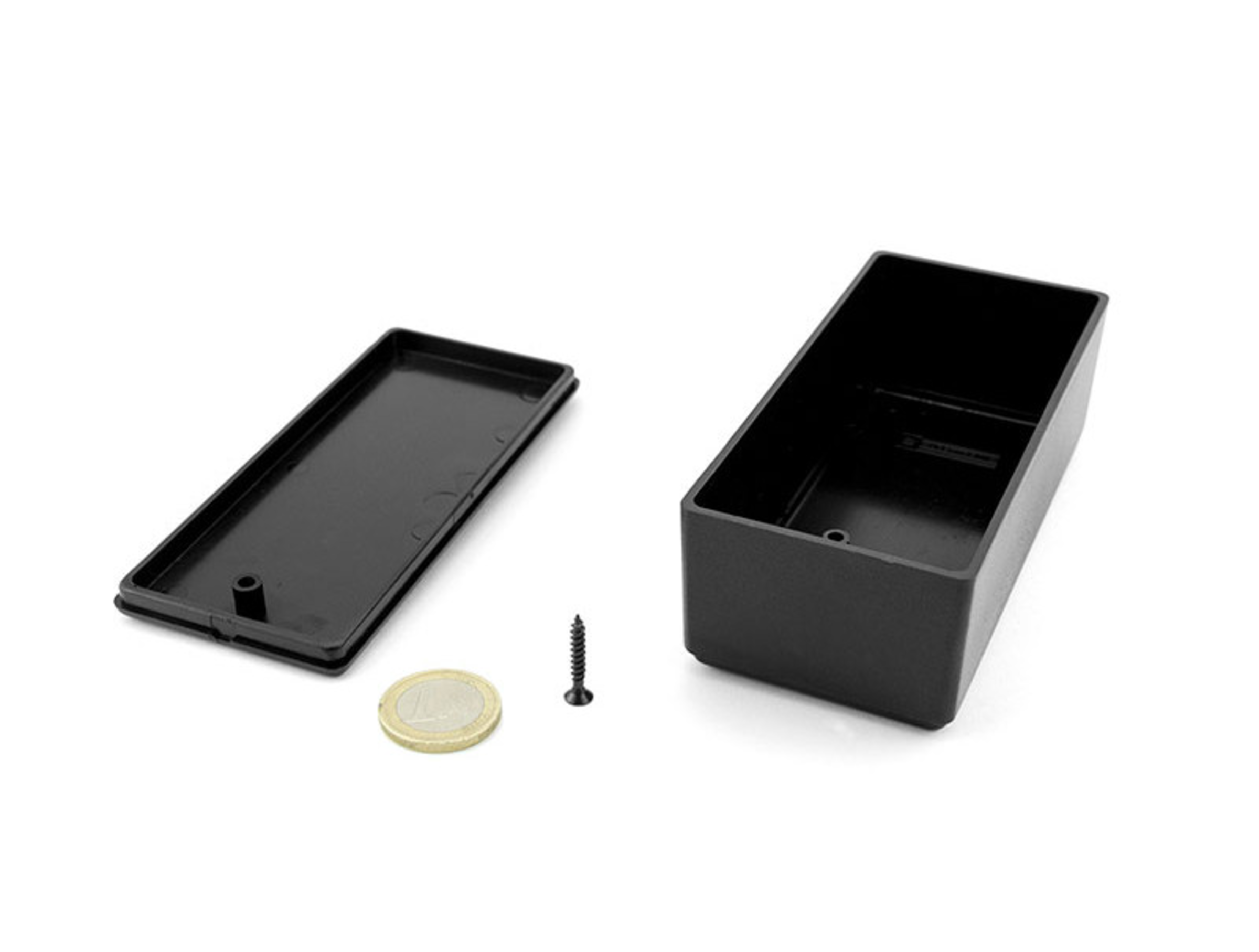

  • The PP9 model from Supertronic's Simplegant series is a universal plastic enclosure made of high-strength UL94 HB ABS. Its design with gently rounded corners, consisting of a housing and lid, is characterised by a generous interior volume and considerable height, allowing it to adapt to a variety of mounting requirements. Its external dimensions of 121 x 56 x 42 mm and internal dimensions of 115 x 52 x 31 mm offer sufficient space for accommodating various components. Each unit comes with screws for secure closure and proper circuit board mounting. This enclosure is a versatile solution for a wide range of applications, including sensors, controllers, monitoring systems, IoT projects, automation, smart building systems, remote control and HVAC. The PP9 model offers customisation options through CNC machining and UV digital printing, allowing you to tailor the box to your specific requirements and provide a personalised and efficient solution.
Features

  • - Small enclosure made of ABS in black, white or grey
    - Consisting of lower and upper part
    - Screw mounting or snap-in mounting

Notice

Dimensions and Weights

Dimension: Length
  • 121 mm
Dimension: Width
  • 56 mm
Dimension: Height
  • 42 mm
