PO360N-S

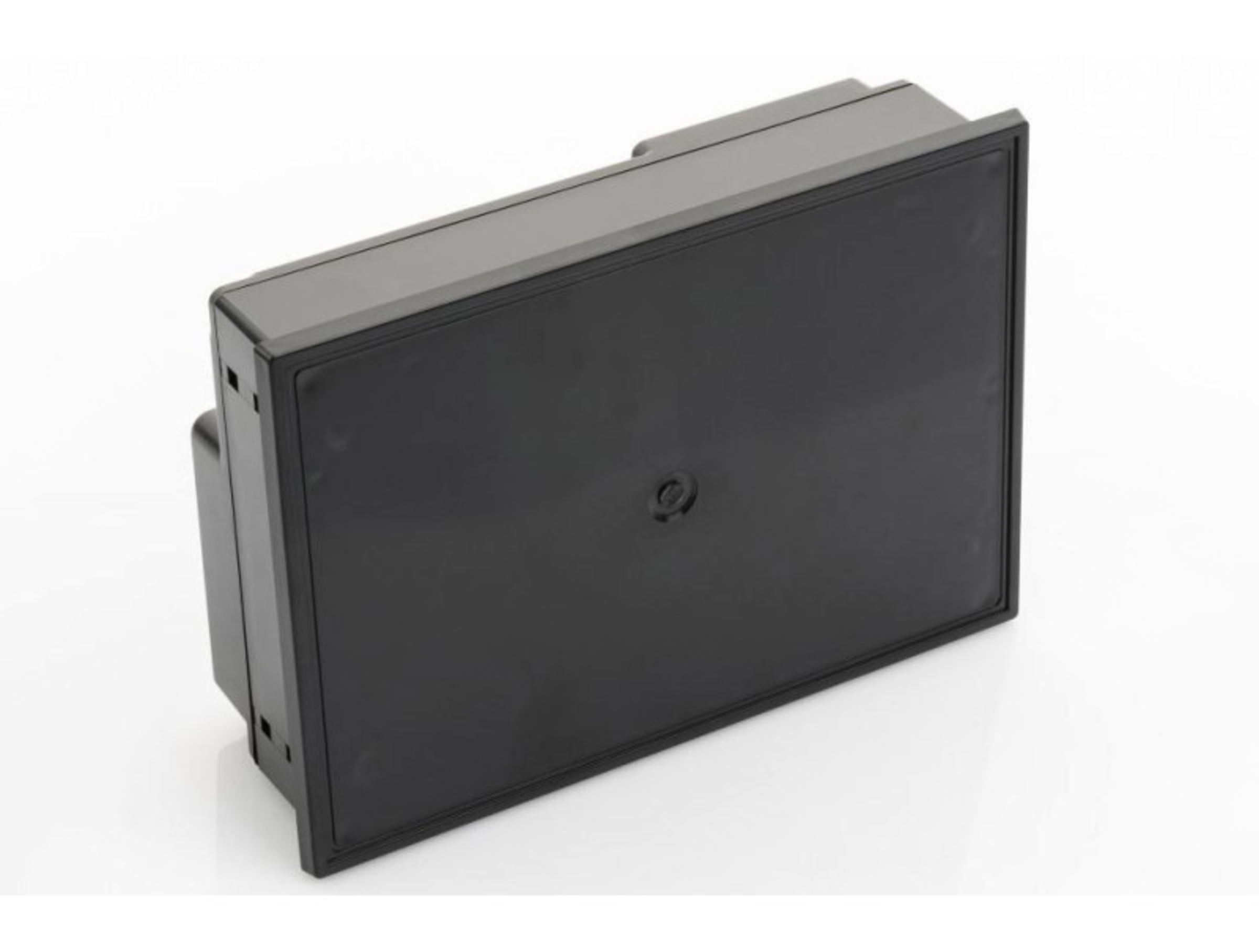

Supertronic PO360 Panel mounting housing ABS (Acrylonitrile Butadiene Styrene) 210mmx146mmx66mm black IP54

PO360N-S
Manufacturer Part No.
PO360N-S
Schukat Part No.
PO360N-S
Manufacturer
Supertronic
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

1 Pcs. in stock

Planned delivery time
Ø 3 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Notice
Cross-references:
Here you will find suitable Accessories for Enclosures.
Type
Panel mounting housing
Assembly Type
Panel mounting
Dimension: Length
210 mm
Dimension: Width
146 mm
Dimension: Height
66 mm
Design
completely closed
Colour
black
Colour: lid/panel/handle
black
Material
ABS (Acrylonitrile Butadiene Styrene)
Protection Class IP
IP54
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Supertronic
Series
  • PO360
Product group
  • G4728
Material
  • ABS (Acrylonitrile Butadiene Styrene)
Colour
  • black
Type
  • Panel mounting housing
Colour: lid/panel/handle
  • black
Assembly Type
  • Panel mounting
Design
  • completely closed
Product description
  • The PO360 model from the Supertronic Panel series is a wall-mounted enclosure ideal for housing control units in industrial environments. Constructed from high-quality, self-extinguishing UL94-V0 ABS, this enclosure ensures both durability and safety thanks to its fire resistance. With external dimensions of 210 x 146 x 66 mm and internal dimensions of 200 x 140 x 60 mm, the PO360 offers ample and secure space for a variety of electronic components. The versatile front panel can be configured as either fully closed or open, adapting to diverse application needs. Furthermore, integrated ventilation holes provide effective airflow to maintain stable component temperatures, crucial for the safety and optimal performance of control units in industrial machinery and equipment. The PO360 combines functionality with an aesthetically pleasing design. Like all Supertronic enclosures, the PO360 can be customized through CNC machining and UV digital printing, allowing the product to be adapted to the specific requirements of each project while always maintaining high quality and design standards.
Notice

Dimensions and Weights

Dimension: Length
  • 210 mm
Dimension: Width
  • 146 mm
Dimension: Height
  • 66 mm

Safety/Certifications

Protection Class IP
  • IP54
