PTF/80A

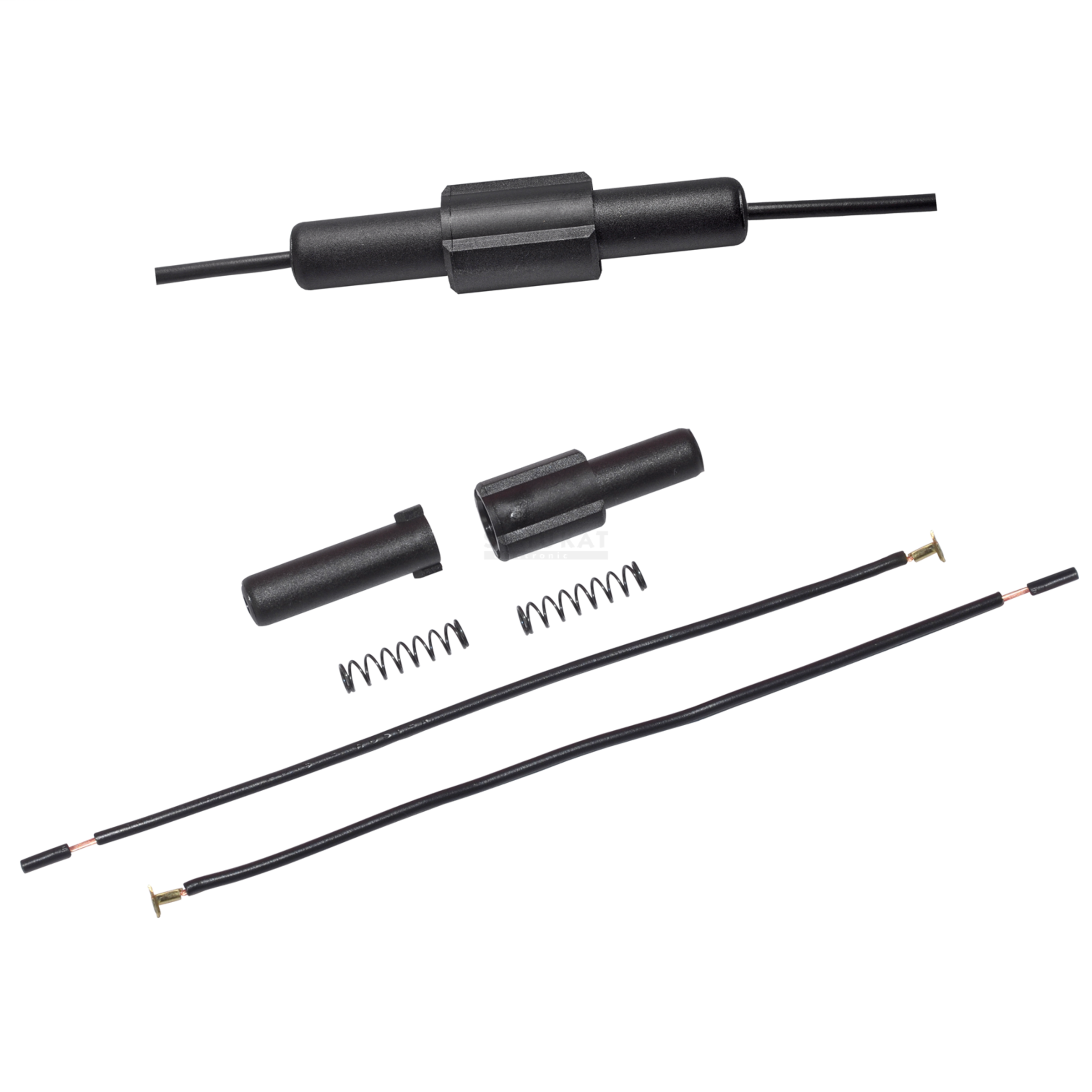

Stelvio Fuse holder 5x20 / 6.3x32 250VAC
TOP
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
22.050 Pcs. in stock
Next Stock Receipt
Week 49/2024
3.000 Pcs.
3.000 Pcs.
Planned delivery time
Ø 12 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Housing
- closed
- Rated voltage V AC
- 250 V AC
- Nominal power consumption
- 1.6 W
- RoHS-Conform
Specifications
Open all

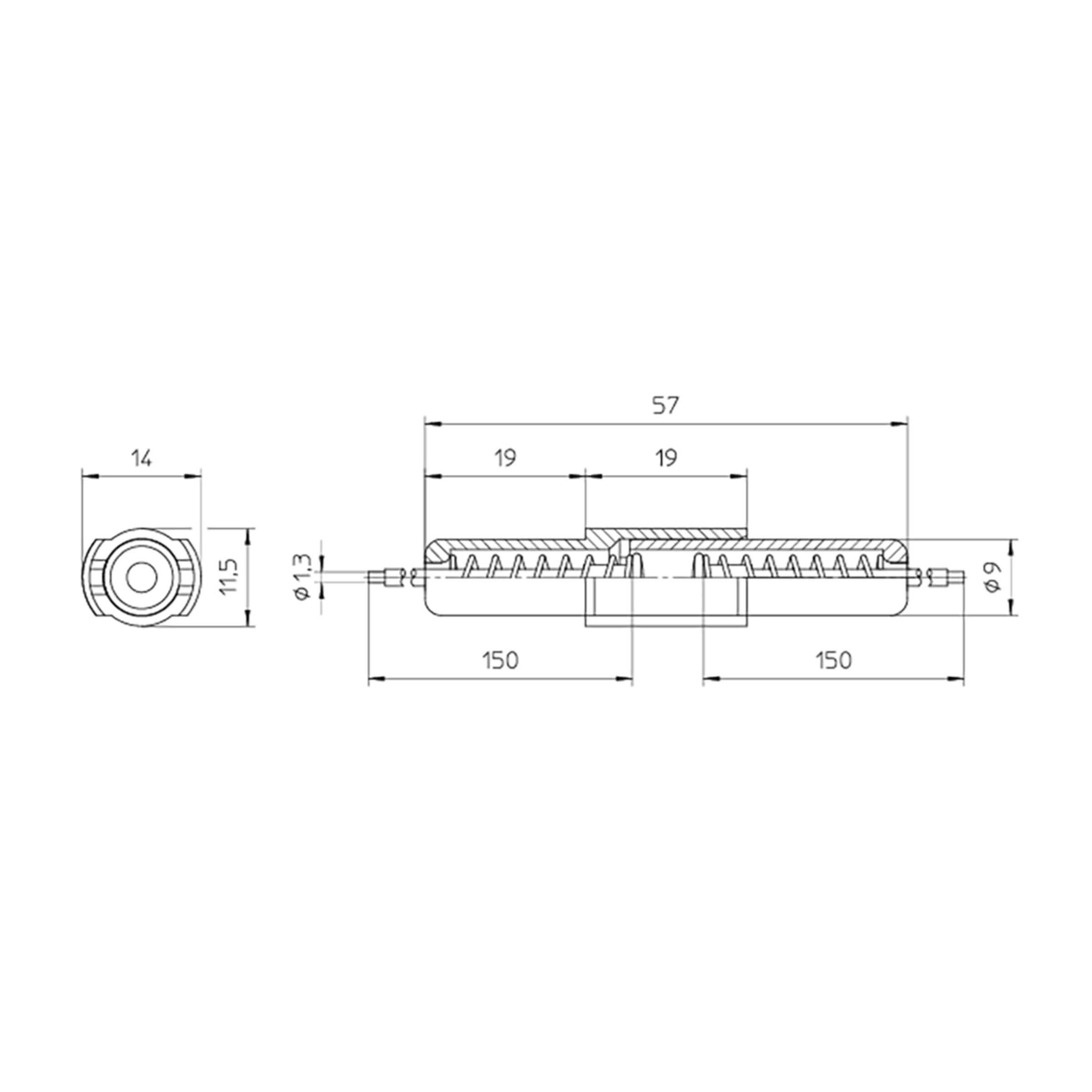

Dimensions and weights
- Dimension: Length
- 57 mm
Operating conditions
- Operating temperature range, min.
- -30 °C
- Operating temperature range, max.
- 85 °C
Technical features
- Rated current
- 6.3 A
- Rated voltage V AC
- 250 V AC
- Contact resistance, max.
- 5 mOhm
- Nominal power consumption
- 1.6 W
Safety/Certifications
- Approvals
- VDE
- cULus
- Standards
- EN 60127-6, UL 512 + C22.2 No. 39
- Insulation class
- IP00
- Contact hazard protection Category
- PC1
