PTF/77

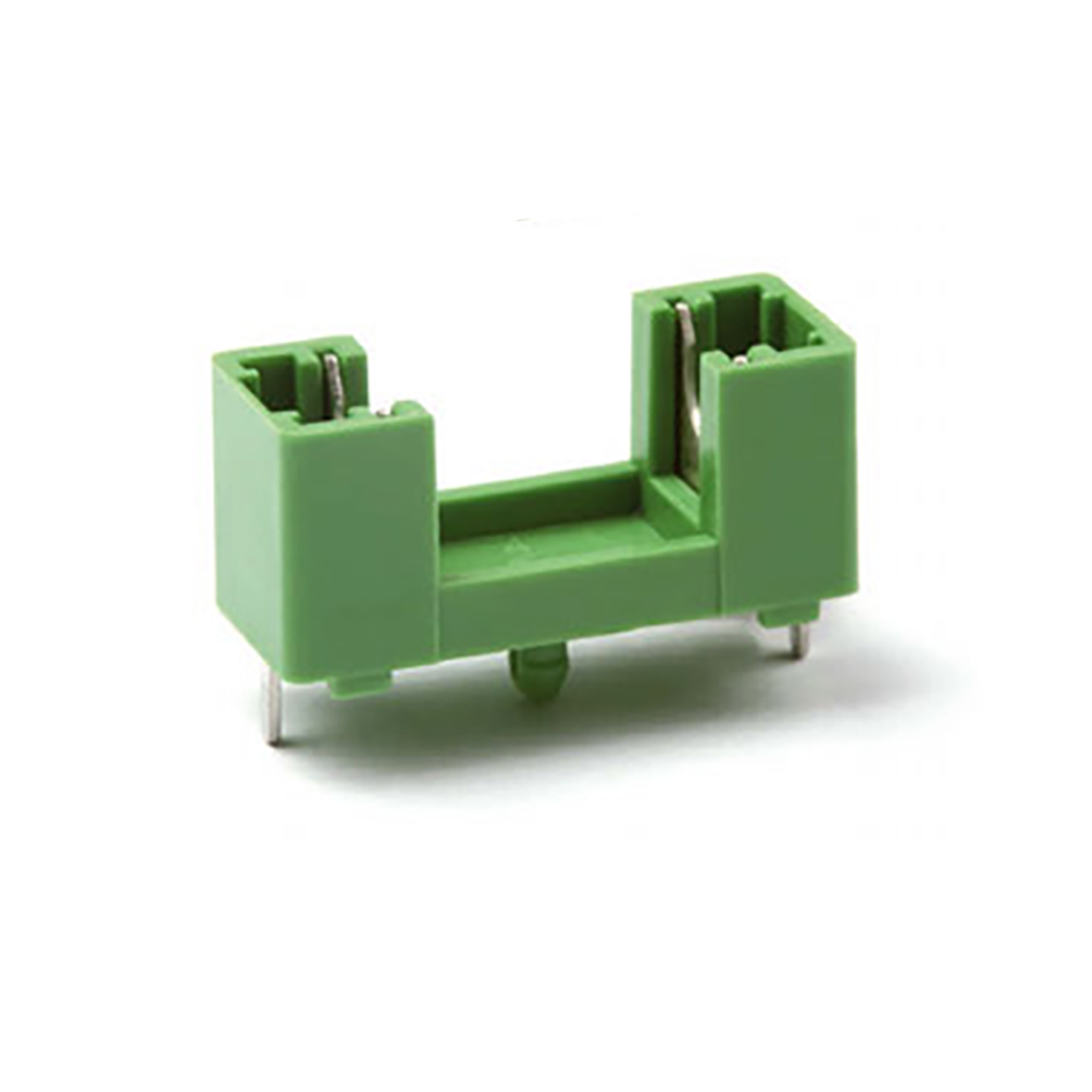

Stelvio Fuse holder 5x20 250VAC for G-fuses 5x20mm 6,3A PC1 IP00

PTF/77PTF/77
Manufacturer Part No.
PTF/77
Schukat Part No.
PTF/77
Manufacturer
Stelvio
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

0 Pcs. in stock

Next Stock Receipt
Week 23/2026
1.000 Pcs.
Planned delivery time
Ø 8 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 1000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Notice
Cross-references:
• Here you will find suitable device fuses and automotive fuses.
Type
Fuse holder 5x20
Series
PTF/77
Housing
open
Insulation class
IP00
Applications
for G-fuses 5x20mm
Rated voltage V AC
250 V AC
Rated current
6.3 A
Nominal power consumption
1.6 W
Contact hazard protection Category
PC1
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Stelvio
Series
  • PTF/77
Type
  • Fuse holder 5x20
Product group
  • E1825
Housing
  • open
Design
  • without cover
Assembly
  • Printed circuit board assembly
Fastening
  • Snap-in
Applications
  • for G-fuses 5x20mm
Housing material
  • Thermoplastic (UL94V-0)
Colour
  • green
Material Terminal
  • Copper Alloy Ni + Sn
Termination Style
  • Plug and solder connection
Features

  • • Open fuse holder made of green thermoplastic, self-extinguishing (UL94V-0)
    • Protection against electric shock (equipment): I - II
    • Schocksafe category: PC1
    • Overvoltage category: III
    • Pollution degree: 3
    • Cover BS232 must be ordered separately.

Notice

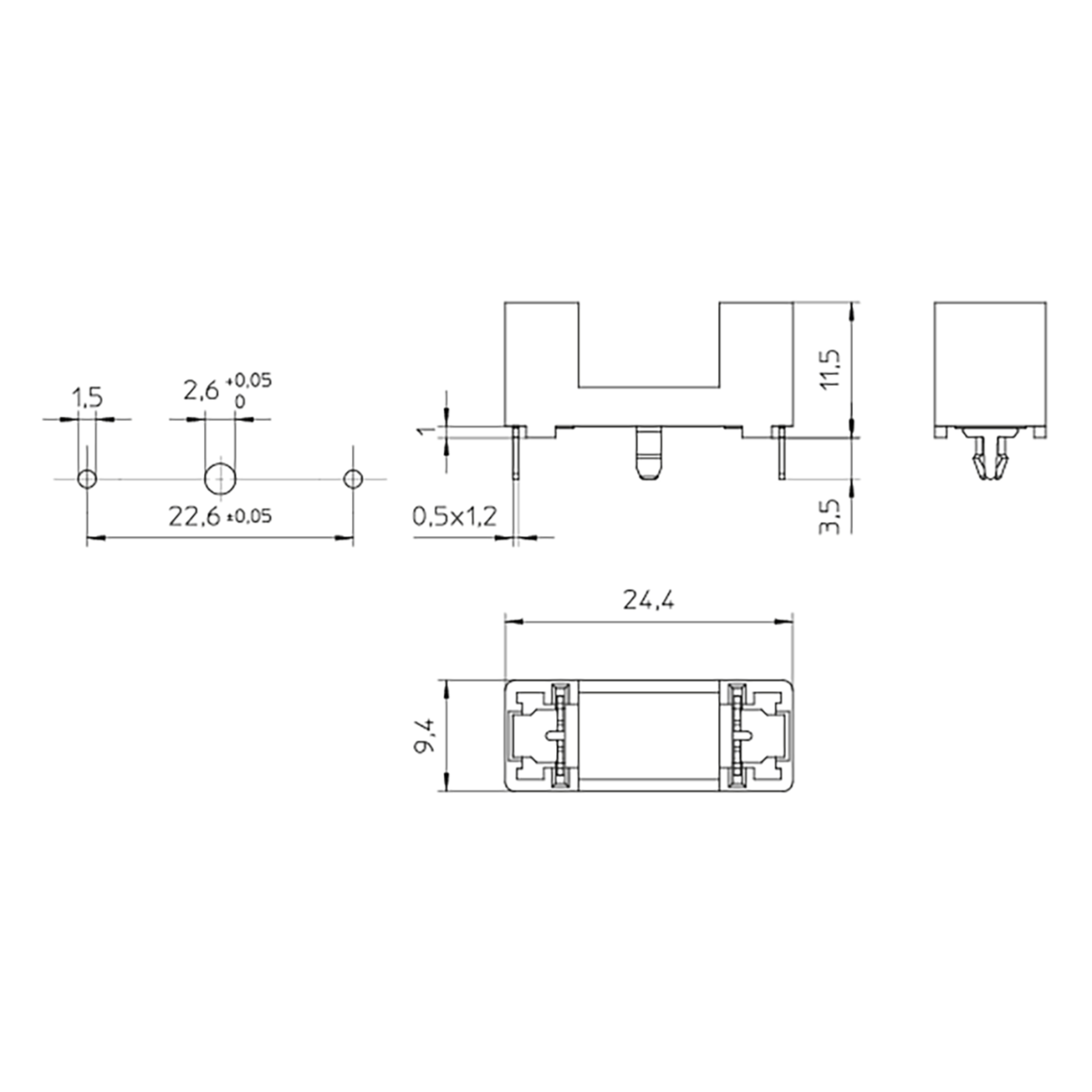

Dimensions and Weights

Dimension: Length
  • 24.4 mm
Dimension: Width
  • 9.4 mm
Dimension: Height
  • 11.5 mm
Pin length
  • 3.5 mm
Pitch
  • 22.6 mm

Operating conditions

Operating temperature range, min.
  • -30 °C
Operating temperature range, max.
  • 85 °C

Technical Features

Rated current
  • 6.3 A
Rated voltage V AC
  • 250 V AC
Contact resistance, max.
  • 5 mOhm
Insulation resistance
  • 10 MOhm
Nominal power consumption
  • 1.6 W

Mechanical Features

Drilling Dimensions
  • 2.6 mm

Safety/Certifications

Approvals
  • VDE
  • cULus
Standards
  • EN 60127-6, UL 4248-1, C22.2 no. 4248-1
Insulation class
  • IP00
Contact hazard protection Category
  • PC1

Documents

wesk_catalogo_ptf_singole_bassa.pdf
Download (pdf, 3.354 KB)
