397232

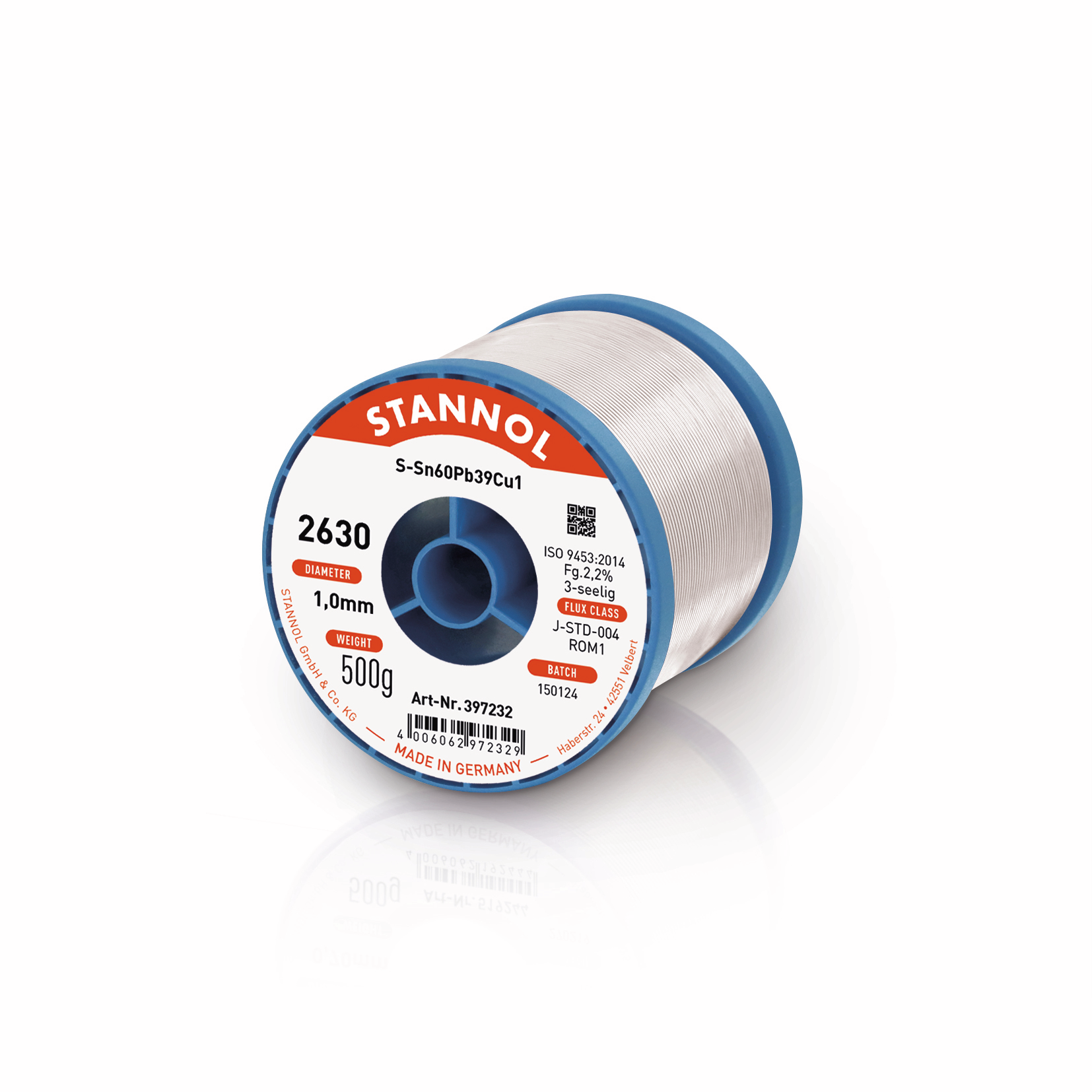

Stannol Soldering Wire 1mm 500g
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
59 Pcs. in stock
Next Stock Receipt
Week 45/2024
20 Pcs.
20 Pcs.
Planned delivery time
Ø 4 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 20 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Leaded
- true
- Alloy
- Sn60Pb39Cu1
- Flux type (IPC-J-STD-004)
- ROM1
- Flux content
- 2.2 %
- Halogen content
- 1.7 %
- Dimension: Diameter
- 1 mm
Specifications
Open all
Operating conditions
- Melting range, min.
- 183 °C
- Melting range, max.
- 190 °C
Documents
SDS___2630-Sn60Pb39Cu1___Germany_German.pdf
SDS___2630-Sn60Pb39Cu1___Germany_German.pdf
