164151

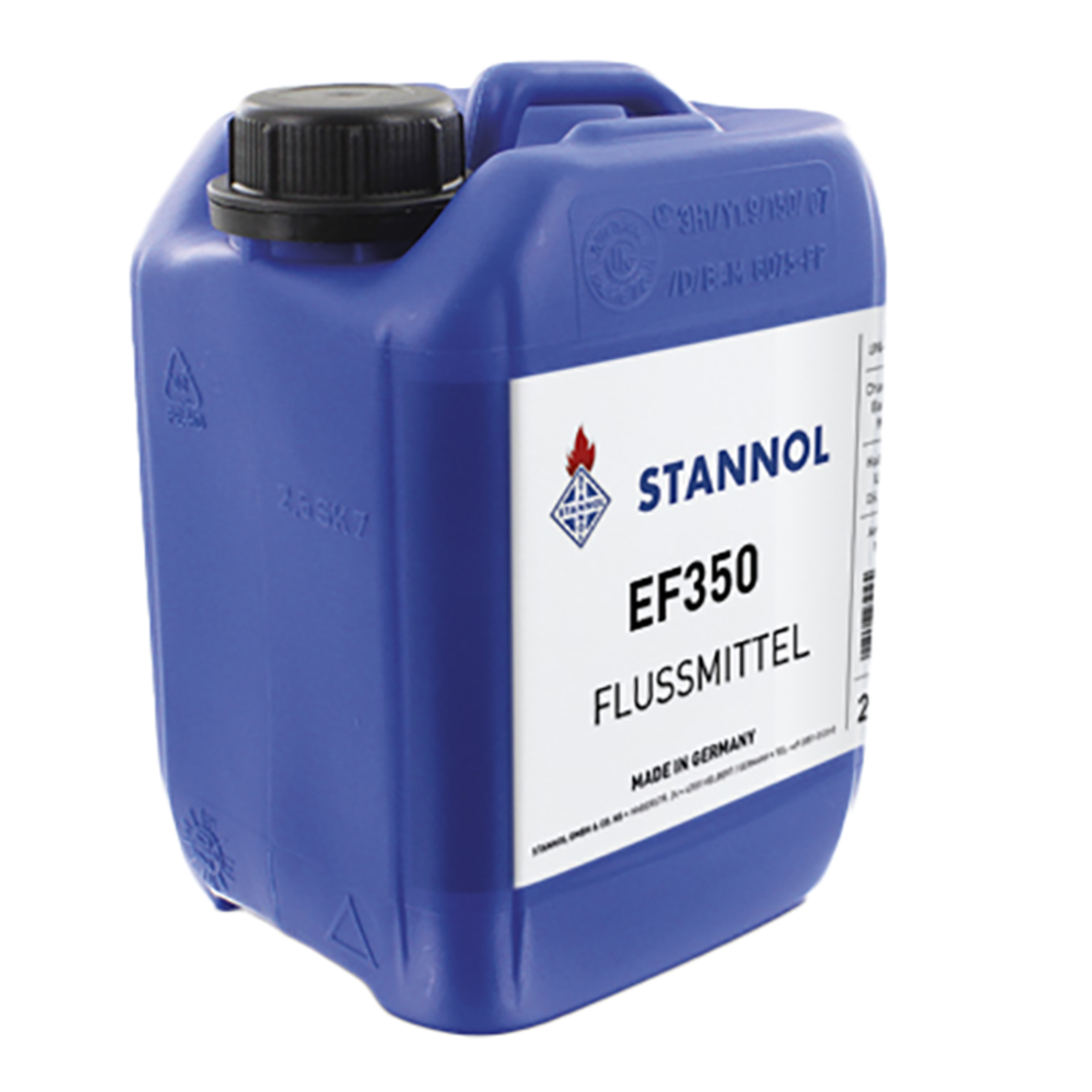

Stannol Flux 2.500ml
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
1 Pcs.
1 Pcs.
Planned delivery time
Ø 4 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Leaded
- false
- Flux type (IPC-J-STD-004)
- ORL0
- RoHS-Conform
Specifications
Open all
Operating conditions
- Density (20°C)
- 0.811 g/cm3
- Shelf Life
- 24 Monate
Electrical features
- Surface Insulation Resistance
- 10⁸ Ohm Ohm
Safety/Certifications
- Directions
The Stannol EasyFlux 350 has been developed for application with spray fluxers, but foam fluxers can also be used. The preheat temperature should be at least 90° C measured on the surface of the circuit board when entering the solder wave. This temperature ensures the evaporation of the solvent and a sufficient activation of the flux. Preheat temperatures up to 120-130°C for a short period of time may be tolerated by the flux. Evaporation of solvent can change the composition. Evaporation causes an increase of the solid content and therefore the density increases. This can be checked with the Stannol Mini-Titration-Kit.
- Standards
EN 29454-1, Typ 2.2.3.A
Documents
Hauptkatalog_Flussmittel_DE.pdf
SDS___EF350___EF350UV___500-3431___Germany_German.pdf
Hauptkatalog_Flussmittel_DE.pdf
SDS___EF350___EF350UV___500-3431___Germany_German.pdf
Other Products
All Products of the Series
