SIL24-1A75-71L

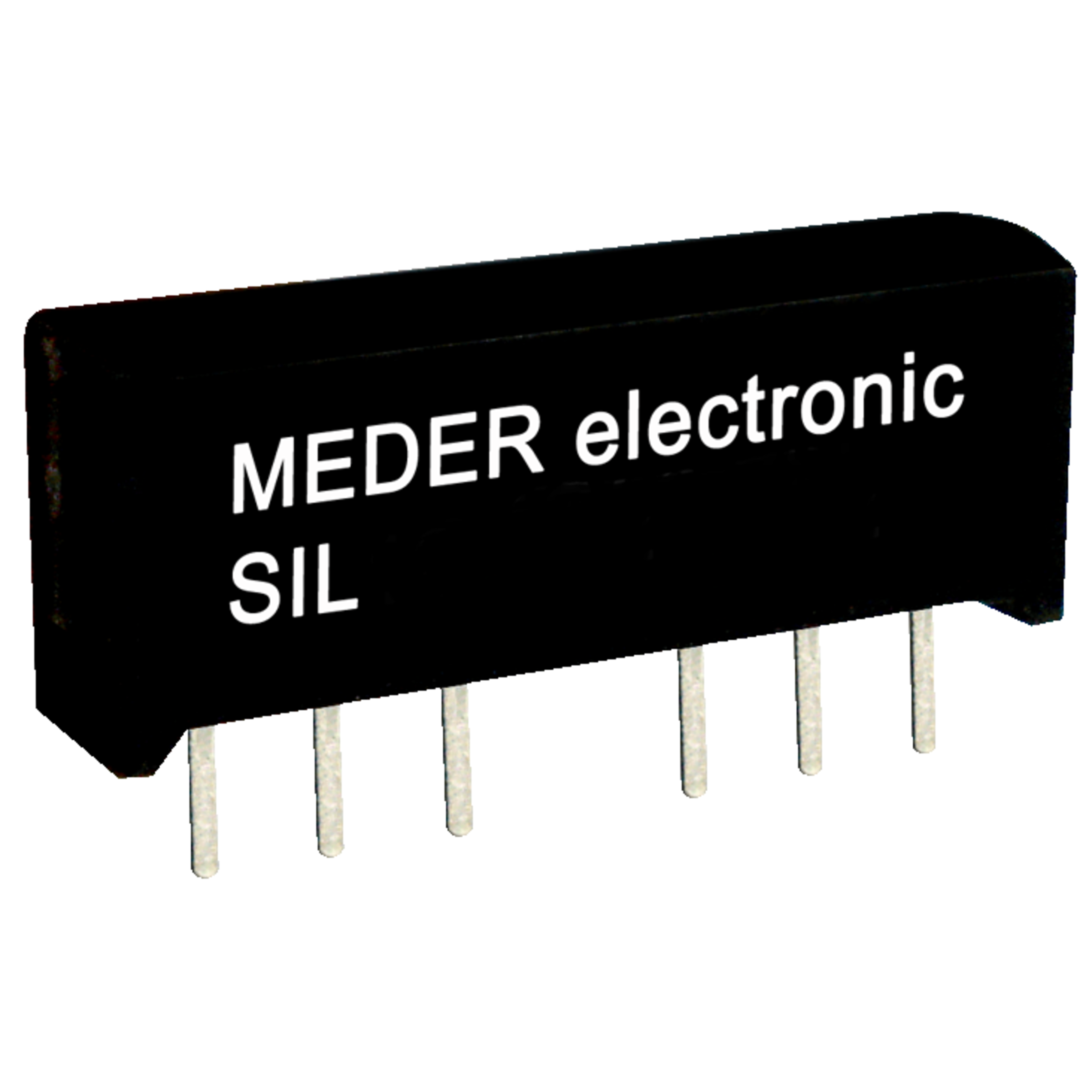

Standex Electronics THT Reed relay SIP SIL Series SIL SPST-NO 24VDC 0,5A 2.000Ohm Solder connection

SIL24-1A75-71LSIL24-1A75-71LSIL24-1A75-71L
Manufacturer Part No.
SIL24-1A75-71L
Schukat Part No.
SIL24-1A75-71L
Manufacturer
Standex Electronics
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

100 Pcs. in stock

Planned delivery time
Ø 26 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 25 or multiple of 25)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Series
SIL
Termination Style
Solder connection
contacts
SPST-NO
Contact: Switching Current (min/typ/max)
0.5 A
Coil: Nominal Voltage DC
24 V DC
Coil resistance
2,000 Ohm
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Standex Electronics
Type
  • Reed relay SIP SIL
Series
  • SIL
Product group
  • E4452

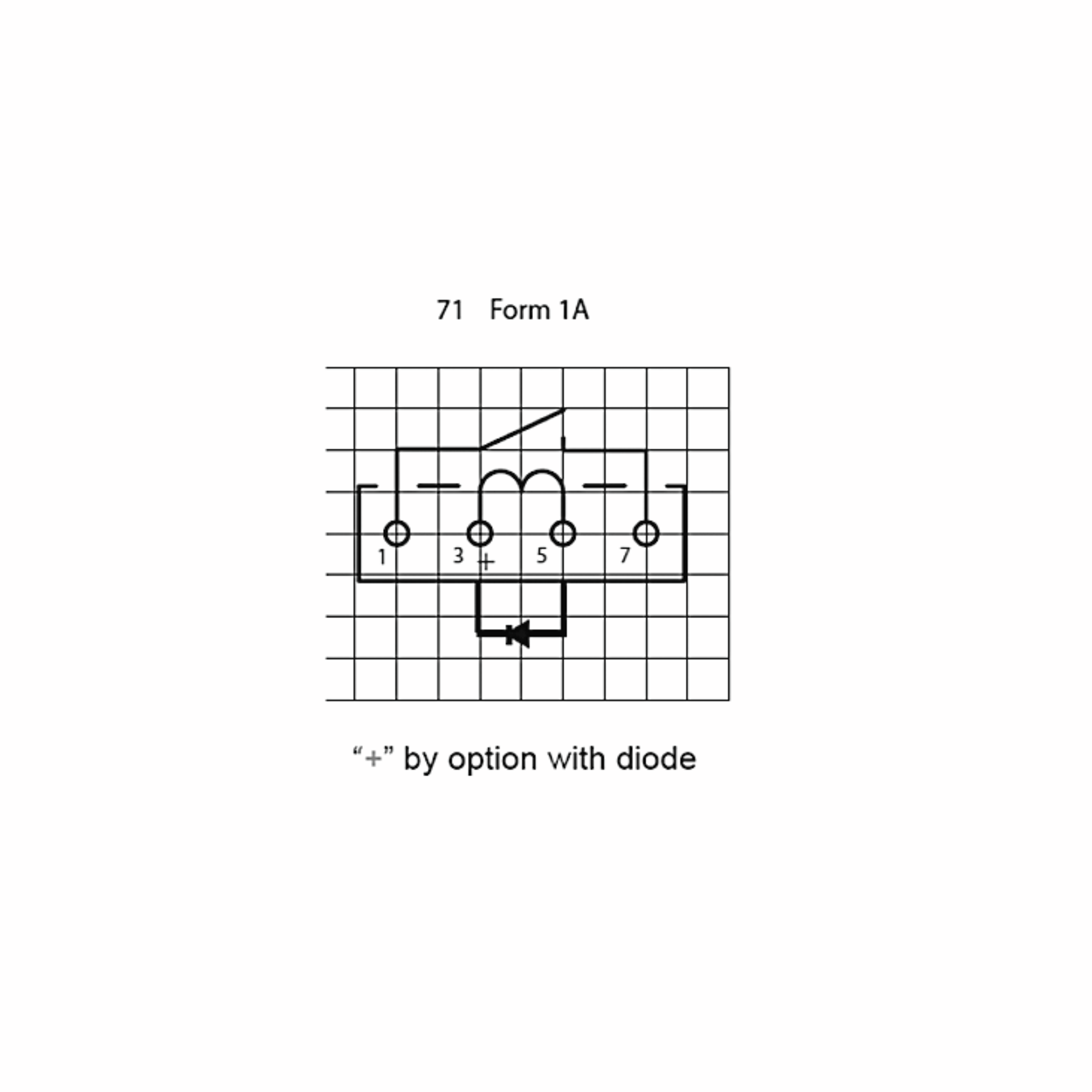

contacts
  • SPST-NO
Assembly Type
  • THT
Termination Style
  • Solder connection
Application

  • • General-purpose, measuring and testing equipment and others
    • for telecommunications, testing and measurement, security, etc.

Features

  • • Dual inline IC-compatible relay
    • Molded
    • Flux-tight design
    • High coil resistance

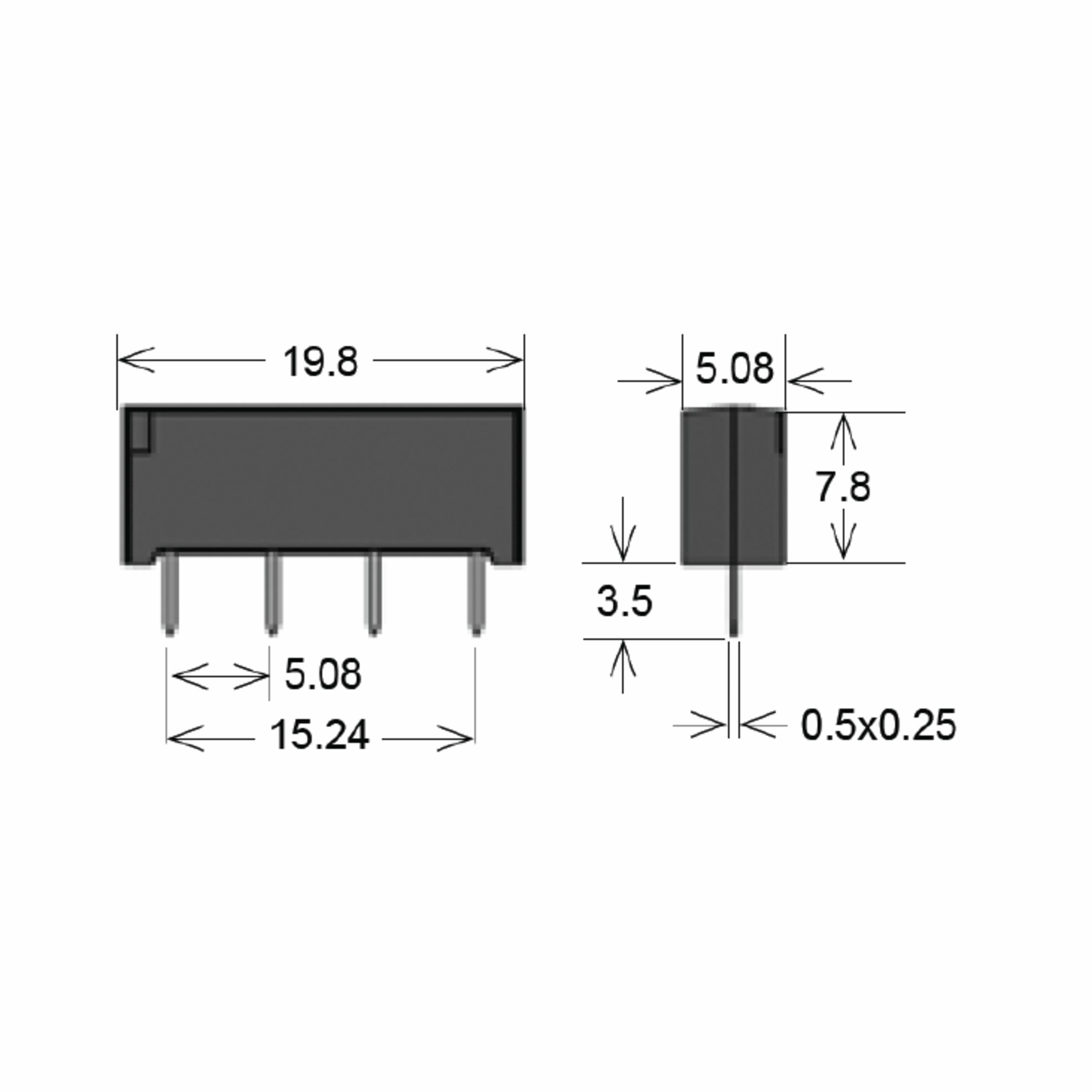

Dimensions and Weights

Dimension: Length
  • 19.8 mm
Dimension: Width
  • 5.08 mm
Dimension: Height
  • 7.8 mm

Operating conditions

Operating Temperature Min.
  • -40 °C
Operating Temperature Max.
  • 100 °C

Technical Features

Contact: Switching Current (min/typ/max)
  • 0.5 A
Contact: Switching Voltage, max. DC
  • 500 V DC
Contact: Carry Current
  • 1 A
Contact: Switching Load (W)
  • 10 W
Contact resistance
  • 200 mOhm
Coil resistance
  • 2,000 Ohm
Inductor power
  • 290 mW
Coil: Nominal Voltage DC
  • 24 V DC
Coil: Pick-up voltage
  • 16.8 V
Coil: Drop-out Voltage
  • 3.6 V
Response time
  • 0.4 ms
Drop-out time
  • 0.05 ms
Insulation resistance
  • 10 GOhm
Vibration resistance
  • 20 g

Safety/Certifications

Approvals
  • cULus
