SIL05-1A72-71DHR

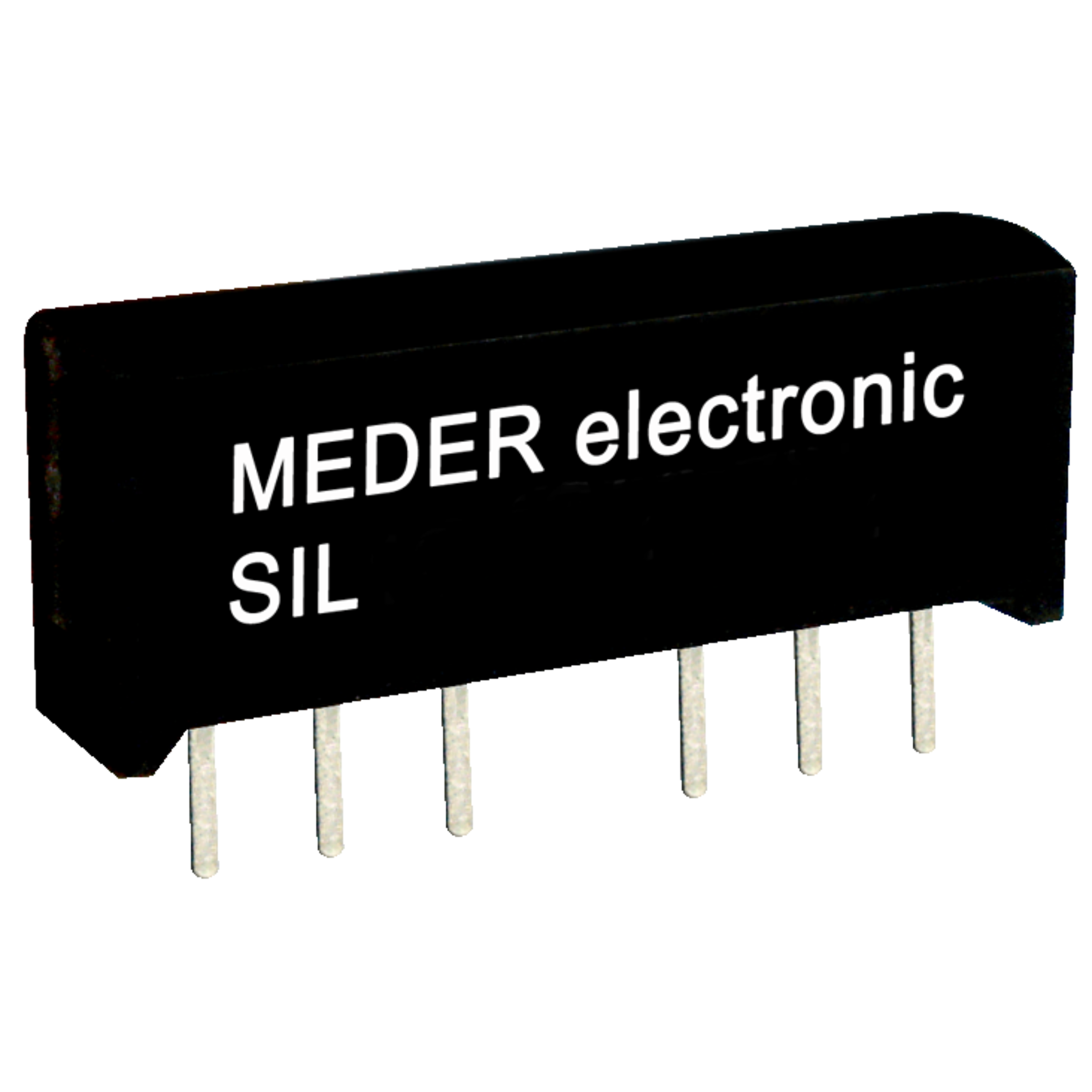

Standex Electronics THT Reed relay SIP SIL Series SIL SPST-NO SIP/SIL07 5VDC 0,5A 500Ohm Solder connection
Manufacturer Part No.
SIL05-1A72-71DHR
Schukat Part No.
SIL05-1A72-71DHR
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
75 Pcs. in stock
Planned delivery time
Ø 26 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 25 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 25 or multiple of 25)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- SIL
- Termination Style
- Solder connection
- contacts

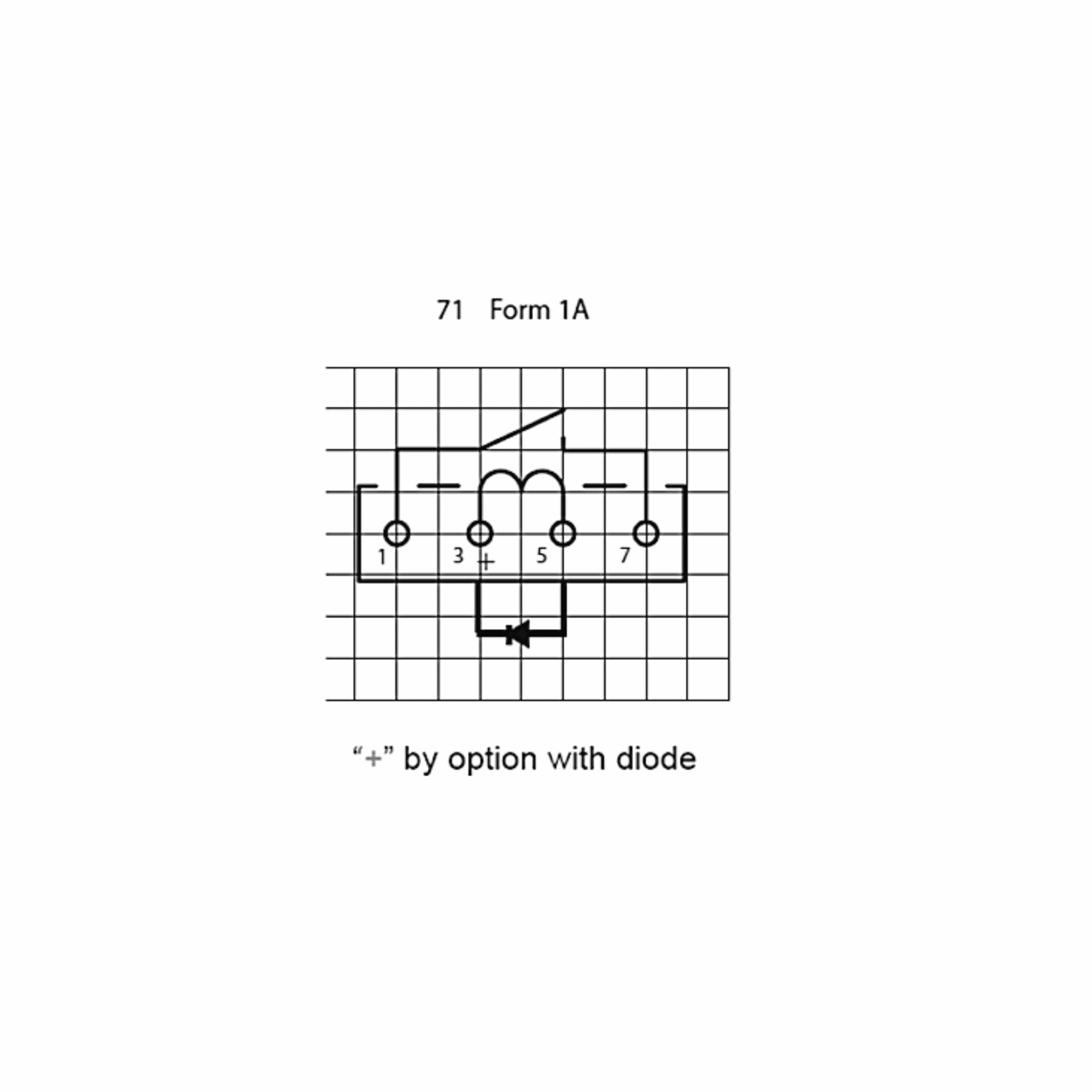

- SPST-NO
- Contact: Switching Current (min/typ/max)
- 0.5 A
- Coil: Nominal Voltage DC
- 5 V DC
- Coil resistance
- 500 Ohm
- RoHS-Conform
Specifications
Open all

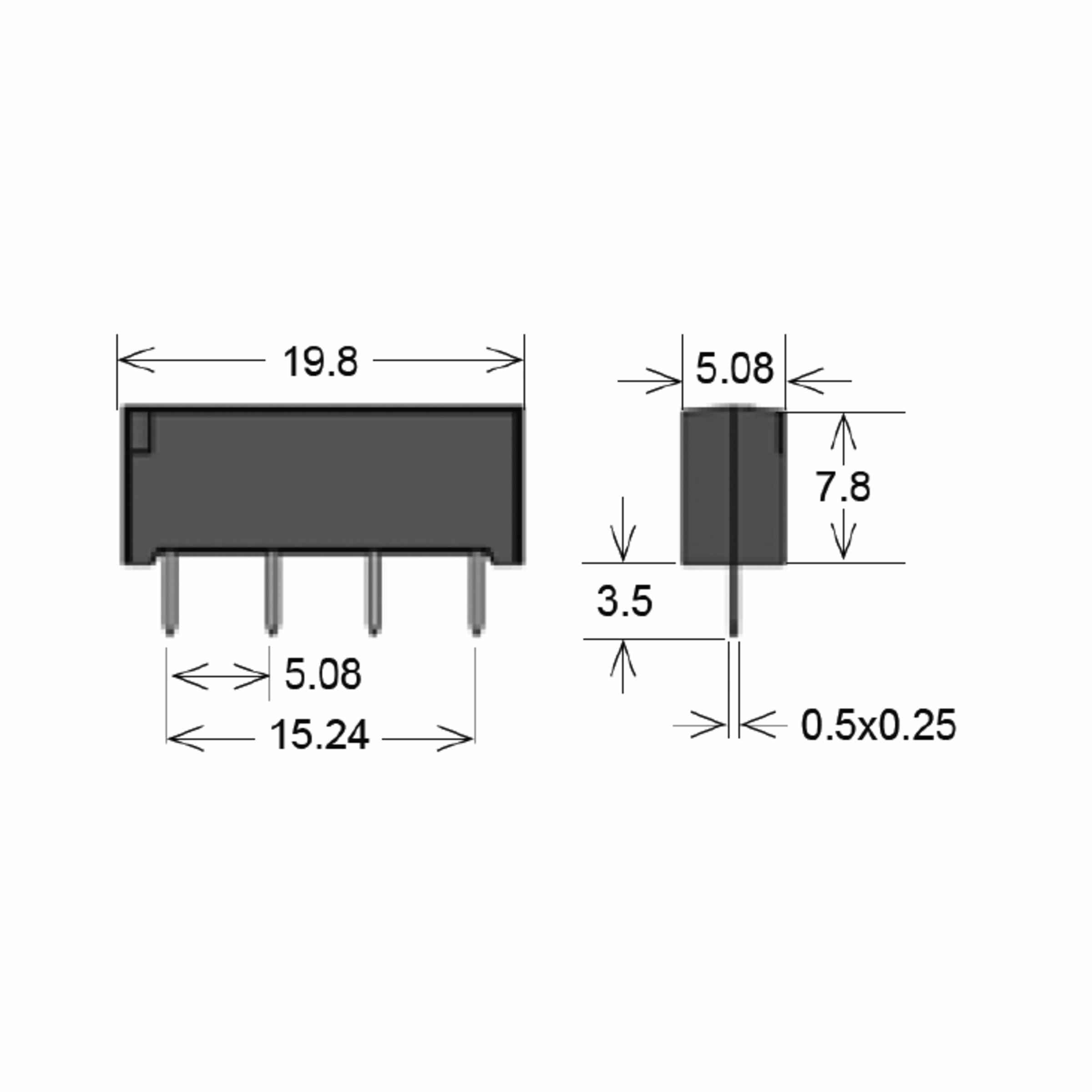

Dimensions and Weights
- Dimension: Length
- 19.8 mm
- Dimension: Width
- 5.08 mm
- Dimension: Height
- 7.8 mm
Operating conditions
- Operating Temperature Min.
- -20 °C
- Operating Temperature Max.
- 70 °C
Technical Features
- Contact: Switching Current (min/typ/max)
- 0.5 A
- Contact: Switching Voltage, max. DC
- 200 V DC
- Contact: Carry Current
- 1 A
- Contact: Switching Load (W)
- 10 W
- Contact resistance
- 100 mOhm
- Coil resistance
- 500 Ohm
- Inductor power
- 50 mW
- Coil: Nominal Voltage DC
- 5 V DC
- Coil: Pick-up voltage
- 3.5 V
- Coil: Drop-out Voltage
- 0.75 V
- Response time
- 0.5 ms
- Drop-out time
- 0.1 ms
- Insulation resistance
- 10^10 GOhm
- Vibration resistance
- 20 g
Safety/Certifications
- Approvals
- cUL
