MM520

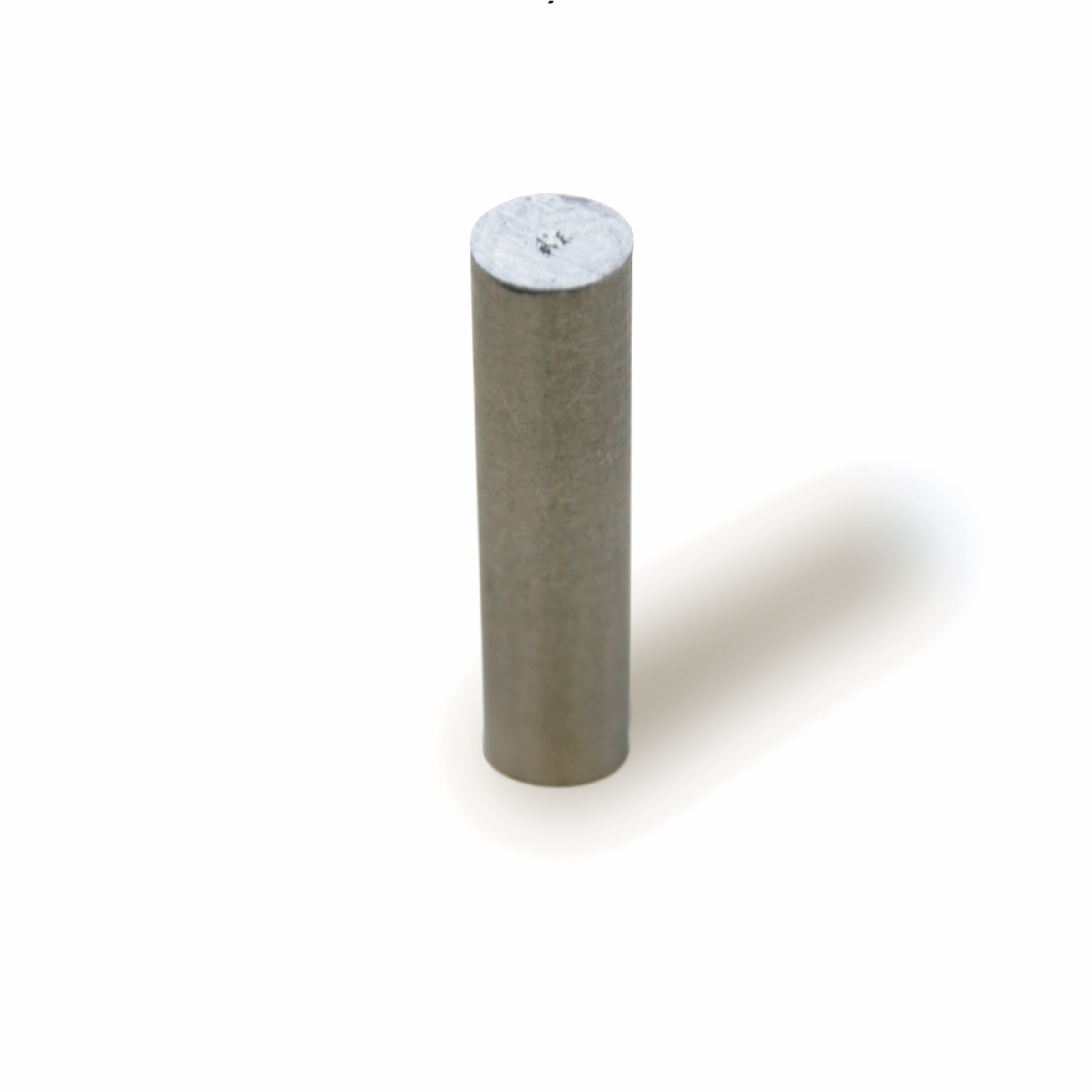

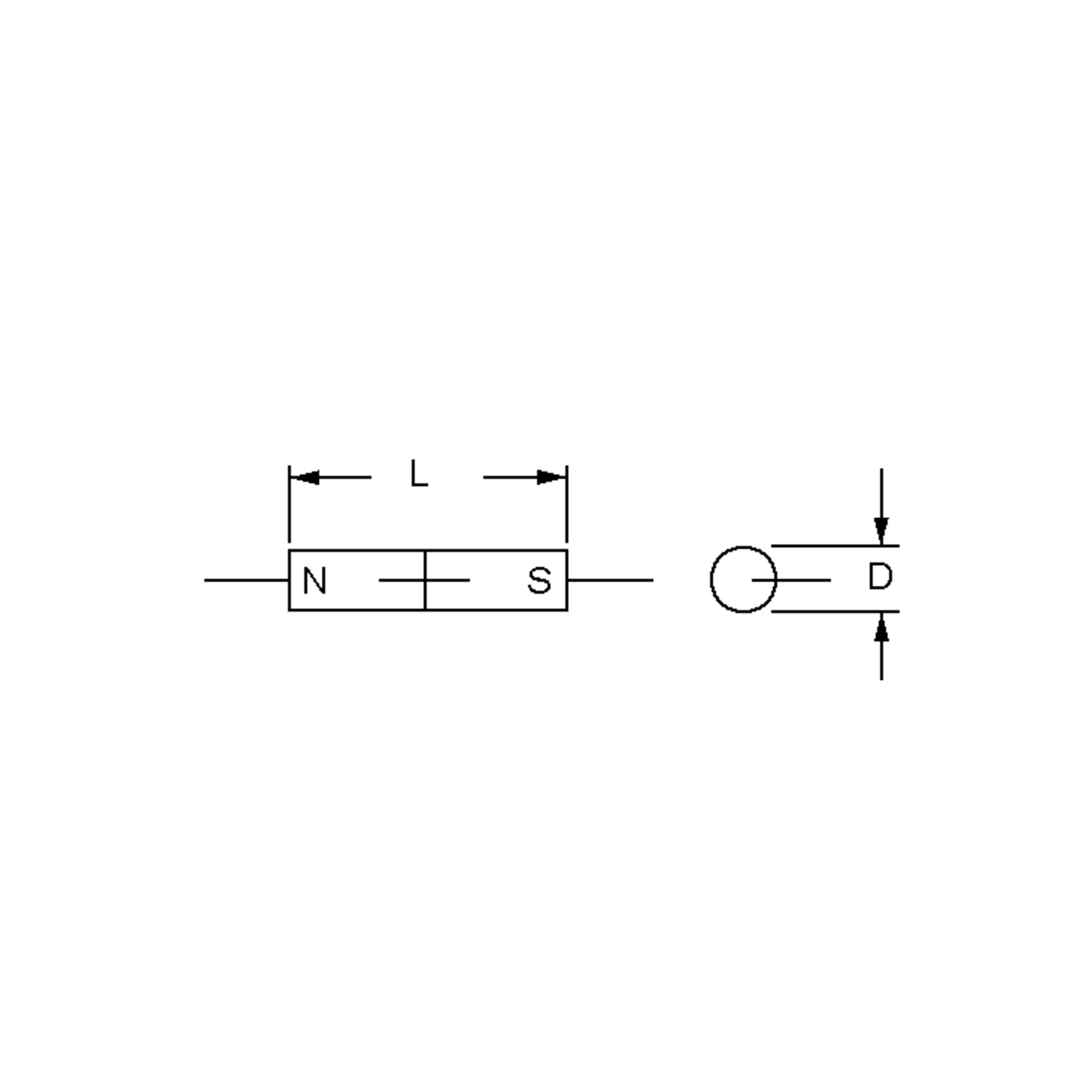

Standex Electronics Permanent magnet AlNiCo Round bar magnet • Magnetic values according to DIN IEC 60404-8-1 • Magnetization direction: axial • Magnetic moment (including 5% tolerance), typ.: 32.4 x 10^-6 Vs*cm Ø5,0mm 20,0mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
90 Pcs. in stock
Planned delivery time
Ø 21 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Notice
- Cross-references:
• Here you will find suitable reed contacts and reed sensors. - Type
- Permanent magnet
- Series
- MM
- Housing
- Round bar magnet
- Material
- AlNiCo
- Remanence
- 1,240 mT
- Working temperature, max.
- 450 °C
- Diameter
- 5 mm
- Dimension: Length
- 20 mm
- RoHS-Conform
Specifications
Open all
Dimensions and Weights
- Dimension: Length
- 20 mm
- Diameter
- 5 mm
Operating conditions
- Working temperature, max.
- 450 °C
Technical Features
- Material density
- 7.4 g/cm3
- Coercive field strength
- 51.3 kA/m
- Remanence
- 1,240 mT
