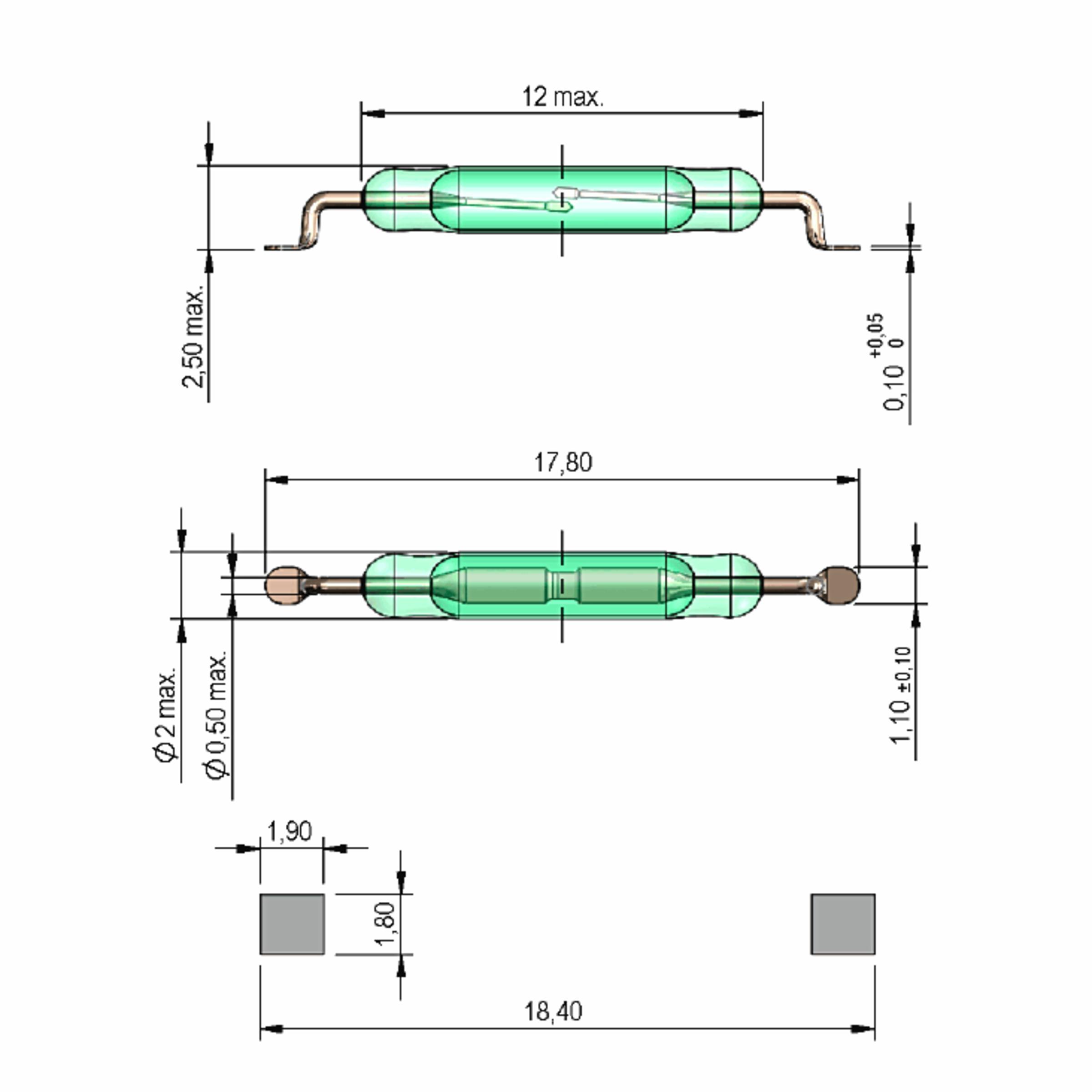

MK23-46-B-2
Standex Electronics Reed sensor MK23 SPST-NO 0,5A 200V 10W AT10...15 SMD
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Planned delivery time
Ø 21 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 2500 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 2500 or multiple of 2500)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Notice
- Cross-references:
• Here you will find suitable actuating magnets. - Type
- Reed sensor
- Series
- MK23
- contacts
- SPST-NO
- Switching current
- 0.5 A
- Switching voltage, max.
- 200 V
- Switching capacity, max.
- 10 W
- Initial Excitation
- 10...15 AT
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 130 °C
Technical Features
- Switching voltage, max.
- 200 V
- Breakdown voltage, min.
- 200 V DC
- Switching current
- 0.5 A
- Transport current, max.
- 1 A
- Switching capacity, max.
- 10 W
- Contact resistance, max.
- 150 mOhm
- Initial Excitation
- 10...15 AT
Safety/Certifications
- Approvals
- UL
- cULus
