LS03-1A66-PA-500W

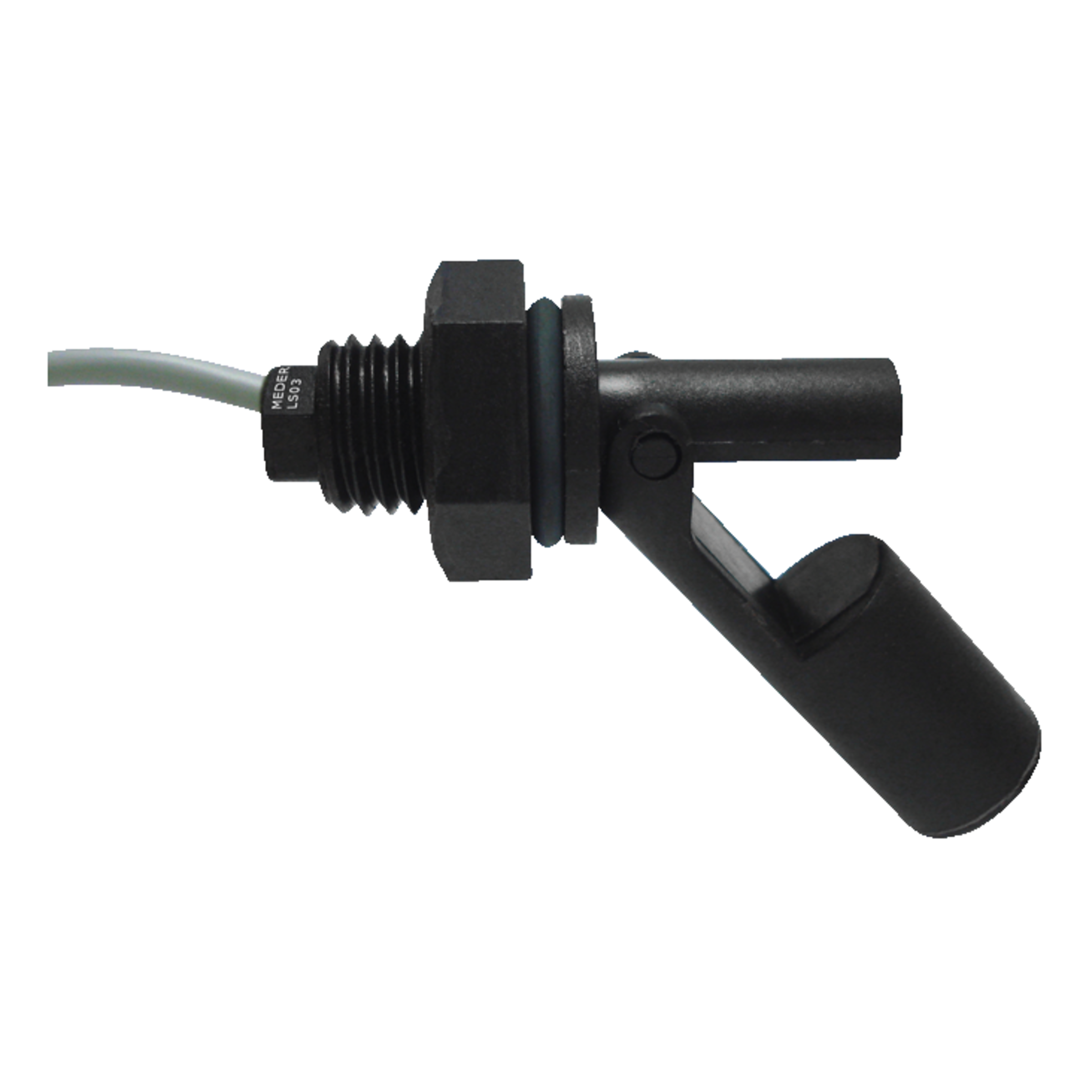

Standex Electronics Level sensor LS03-1A66 SPST-NO 0,5A 200V 10W with magnet float
Manufacturer Part No.
LS03-1A66-PA-500W
Schukat Part No.
LS03-1A66-PA-500W
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
220 Pcs. in stock
Planned delivery time
Ø 31 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 50 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Notice
- Cross-references:
• Here you will find suitable actuating magnets. - Type
- Level sensor
- Series
- LS03-1A66
- contacts
- SPST-NO
- Switching current
- 0.5 A
- Switching voltage, max.
- 200 V
- Switching capacity, max.
- 10 W
- Protection Class
- IP68
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -20 °C
- Operating Temperature Max.
- 80 °C
Technical Features
- Switching voltage, max.
- 200 V
- Switching current
- 0.5 A
- Switching current, max.
- 0.5 A
- Transport current, max.
- 1.25 A
- Switching capacity, max.
- 10 W
Safety/Certifications
- Protection Class
- IP68
