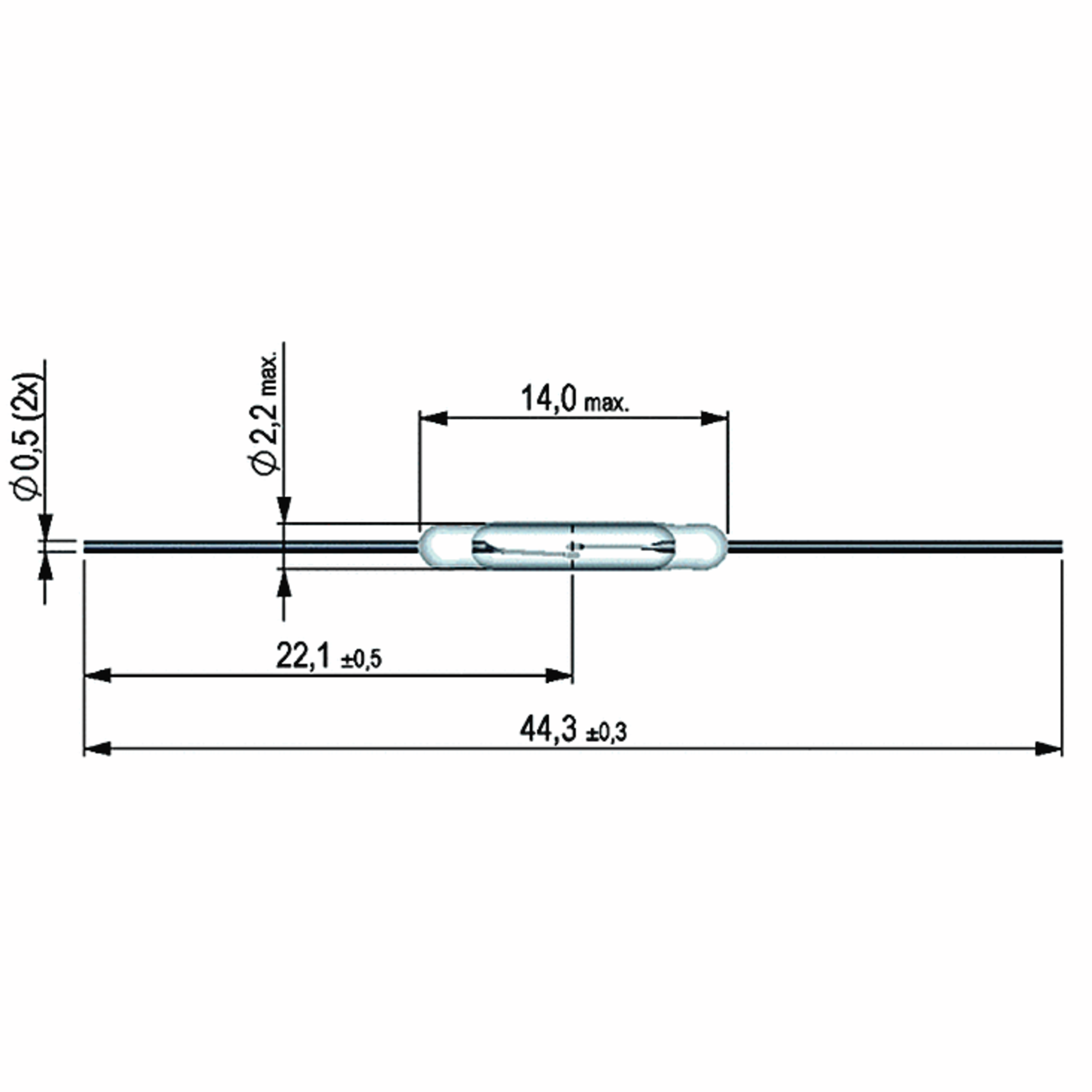

KSK-1A66-2030
Standex Electronics Reed contact KSK-1A66 SPST-NO 0,5A 180V 10W AT20...30
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
1.740 Pcs. in stock
Next Stock Receipt
Week 22/2026
1.000 Pcs.
1.000 Pcs.
Planned delivery time
Ø 21 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Notice
- Cross-references:
• Here you will find suitable actuating magnets. - Type
- Reed contact
- Series
- KSK-1A66
- contacts
- SPST-NO
- Switching current
- 0.5 A
- Switching voltage, max.
- 180 V
- Switching capacity, max.
- 10 W
- Initial Excitation
- 20...30 AT
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 130 °C
- Storage Temperature Min.
- -55 °C
- Storage Temperature Max.
- 130 °C
Technical Features
- Switching voltage, max.
- 180 V
- Breakdown voltage, min.
- 200 V DC
- Switching current
- 0.5 A
- Transport current, max.
- 1 A
- Switching capacity, max.
- 10 W
- Static contact resistance, max.
- 150 mOhm
- Insulation resistance
- 10¹⁰ Ohm
- Initial Excitation
- 20...30 AT
- Switching time incl. bounce
- 0.5 ms
- Drop-out time
- 0.1 ms
