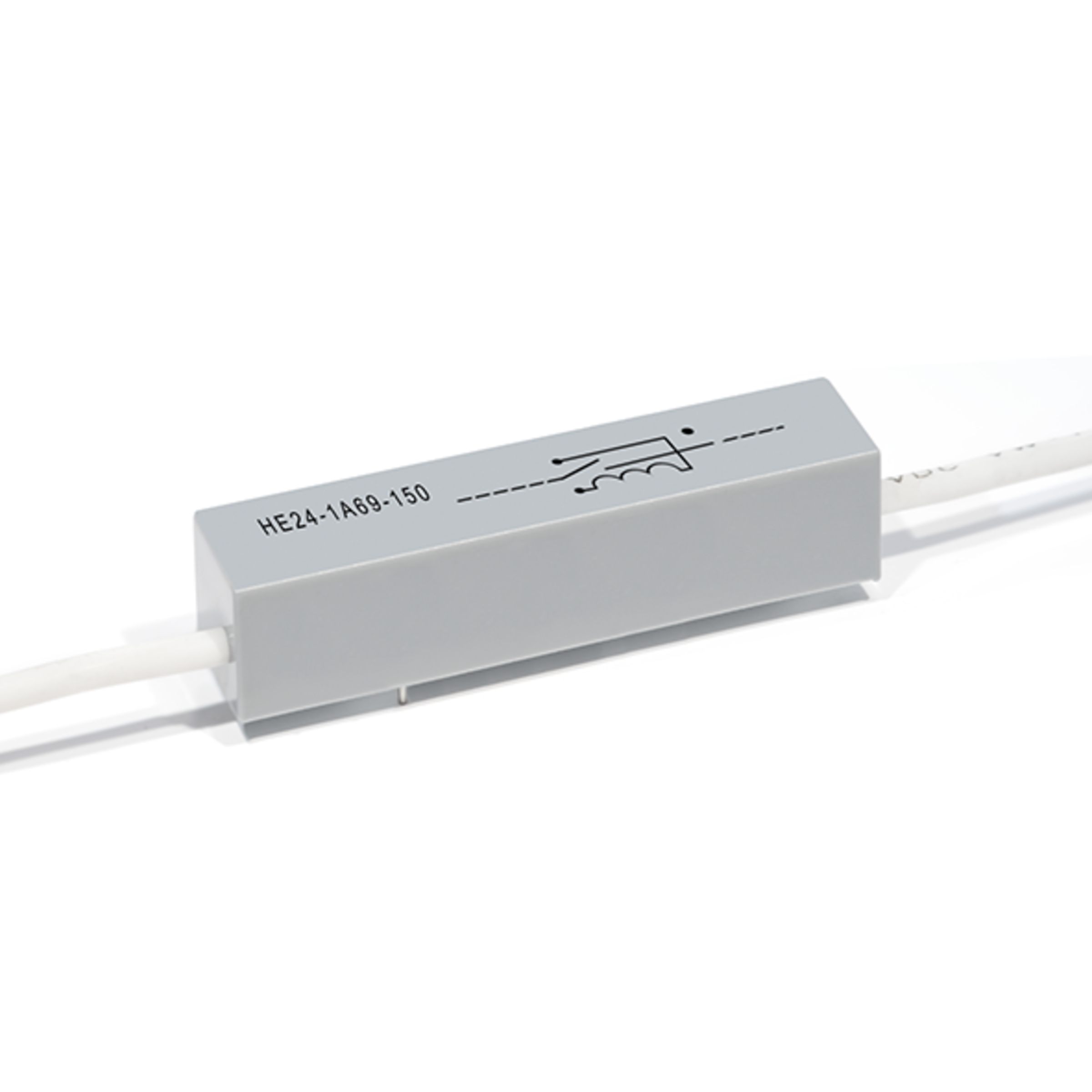

HE05-1A83-150
Standex Electronics THT Reed relay Series HE SPST-NO 5VDC 3A 48Ohm Connection cable
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
25 Pcs. in stock
Planned delivery time
Ø 31 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 34 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- HE
- Termination Style
- Connection cable
- contacts
- SPST-NO
- Contact: Switching Current (min/typ/max)
- 3 A
- Coil: Nominal Voltage DC
- 5 V DC
- Coil resistance
- 48 Ohm
- RoHS-Conform
Specifications
Open all

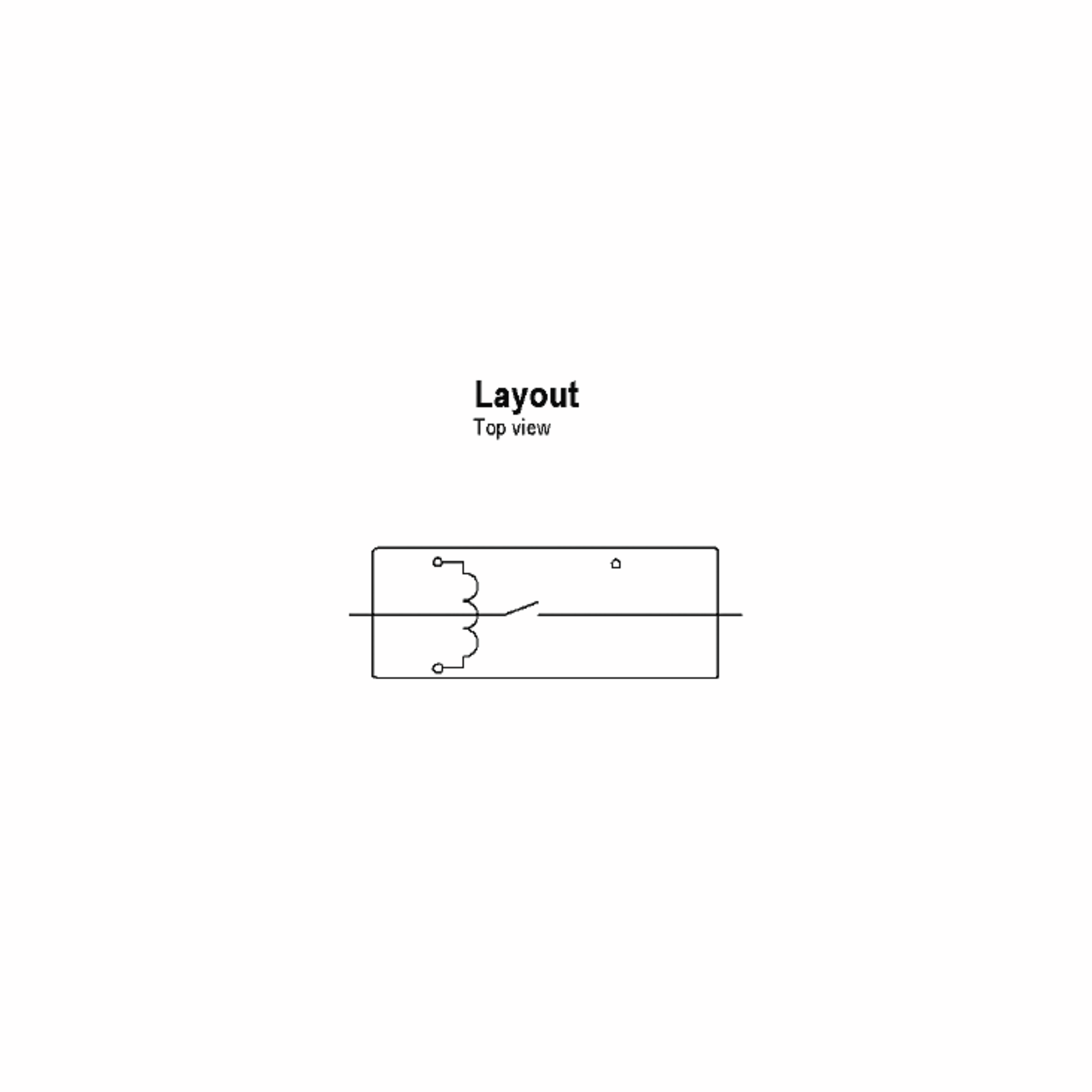

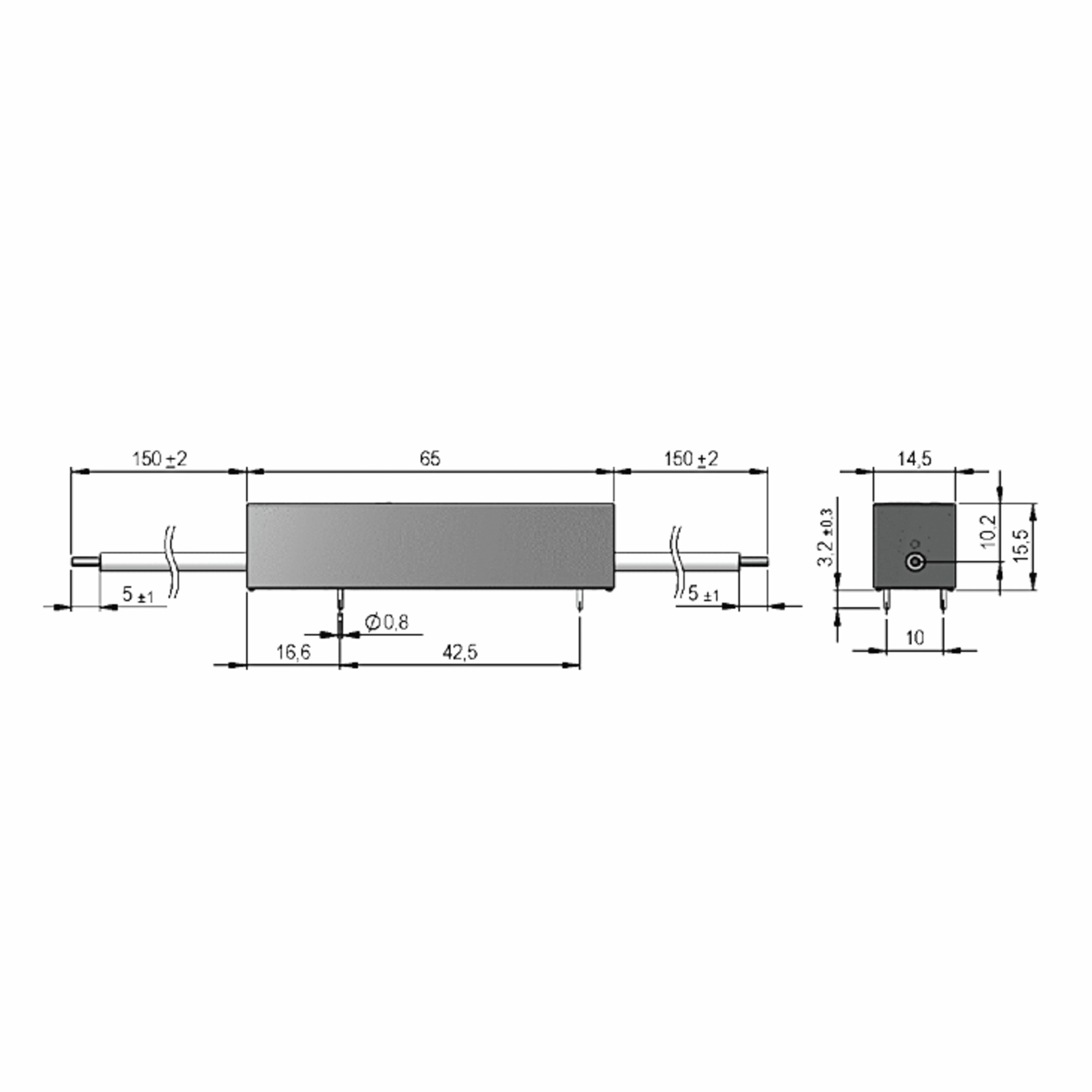

Dimensions and Weights
- Dimension: Length
- 65 mm
- Dimension: Width
- 14.5 mm
- Dimension: Height
- 15.5 mm
Operating conditions
- Operating Temperature Min.
- -20 °C
- Operating Temperature Max.
- 70 °C
Technical Features
- Contact: Switching Current (min/typ/max)
- 3 A
- Contact: Switching Voltage, max. DC
- 7,500 V DC
- Contact: Carry Current
- 5 A
- Contact: Switching Load (W)
- 50 W
- Contact resistance
- 150 mOhm
- Coil resistance
- 48 Ohm
- Inductor power
- 521 mW
- Coil: Nominal Voltage DC
- 5 V DC
- Coil: Pick-up voltage
- 3.8 V
- Coil: Drop-out Voltage
- 0.5 V
- Response time
- 3.2 ms
- Drop-out time
- 1.5 ms
- Insulation resistance
- 10.000 GOhm
- Vibration resistance
- 20 g
