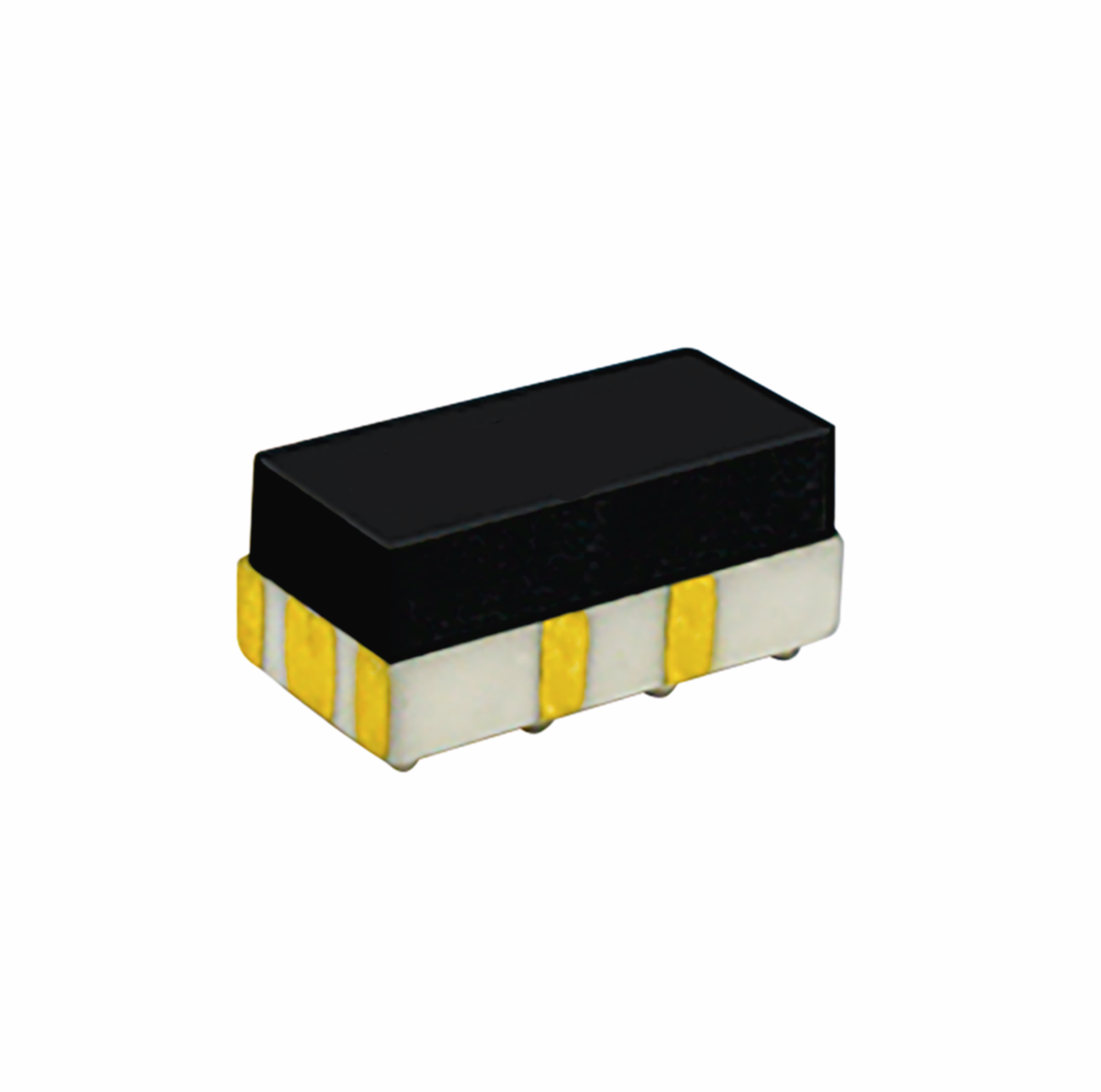

CRR05-1AS
Standex Electronics SMD Reed relay Series CRR SPST-NO 5VDC 0,5A 150Ohm with solder balls
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
520 Pcs. in stock
Planned delivery time
Ø 41 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- CRR
- Termination Style
- with solder balls
- contacts
- SPST-NO
- Contact: Switching Current (min/typ/max)
- 0.5 A
- Coil: Nominal Voltage DC
- 5 V DC
- Coil resistance
- 150 Ohm
- RoHS-Conform
Specifications
Open all

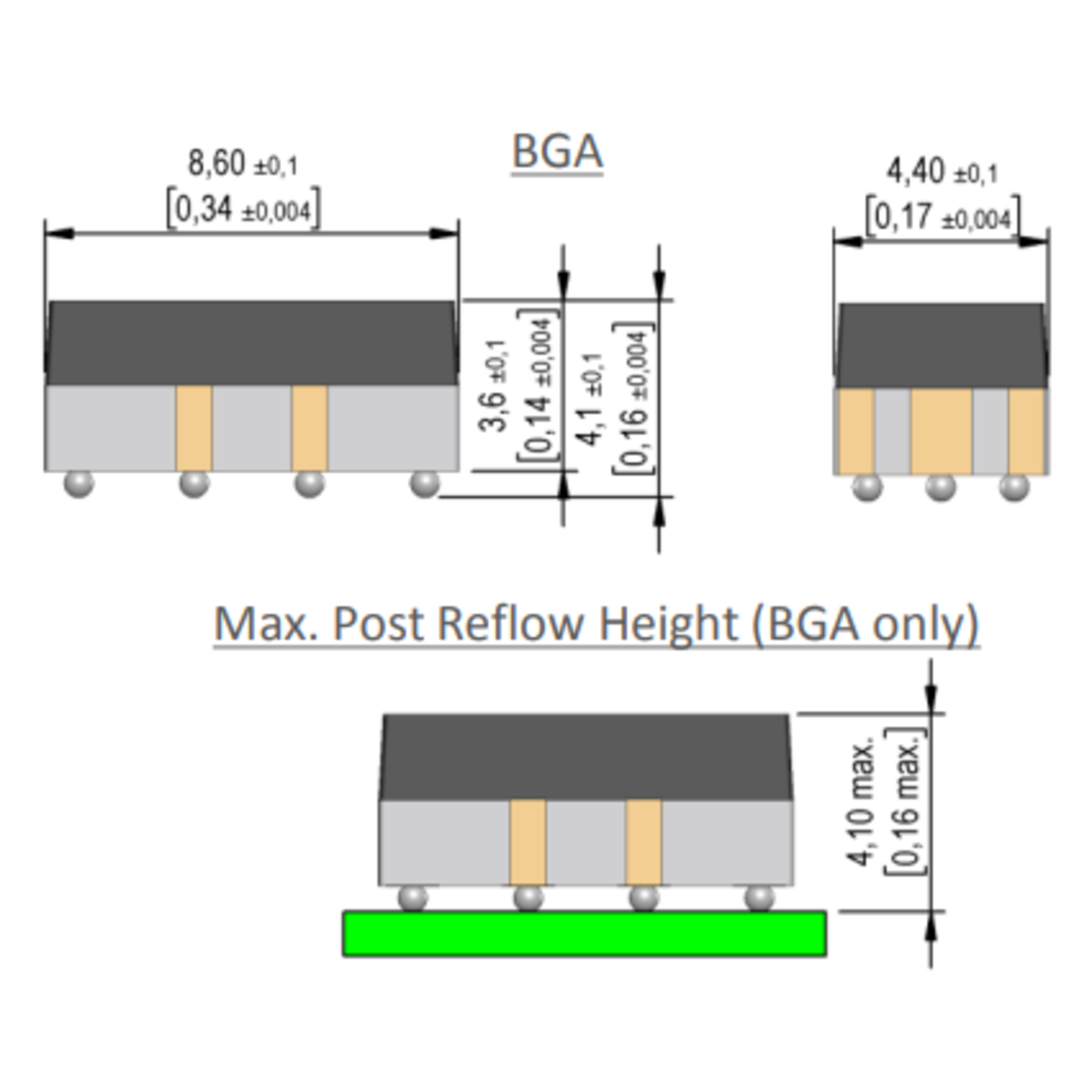

Dimensions and Weights
- Dimension: Length
- 8.6 mm
- Dimension: Width
- 4.4 mm
- Dimension: Height
- 3.6 mm
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 125 °C
Technical Features
- Contact: Switching Current (min/typ/max)
- 0.5 A
- Contact: Switching Voltage, max. DC
- 170 V DC
- Contact: Carry Current
- 0.5 A
- Contact: Switching Load (W)
- 10 W
- Contact: Voltage Resistance
- 0.21 kV
- Contact resistance
- 200 mOhm
- Coil design
- monostable
- Coil resistance
- 150 Ohm
- Inductor power
- 167 mW
- Coil: Nominal Voltage DC
- 5 V DC
- Coil: Operating Voltage, max.
- 7.5 V
- Coil: Pick-up voltage
- 3.75 V
- Coil: Drop-out Voltage
- 0.75 V
- Response time
- 0.6 ms
- Drop-out time
- 0.1 ms
- Insulation resistance
- 1 GOhm
- Vibration resistance
- 20 g
Safety/Certifications
- Approvals
- cULus
