SPTC60-4000

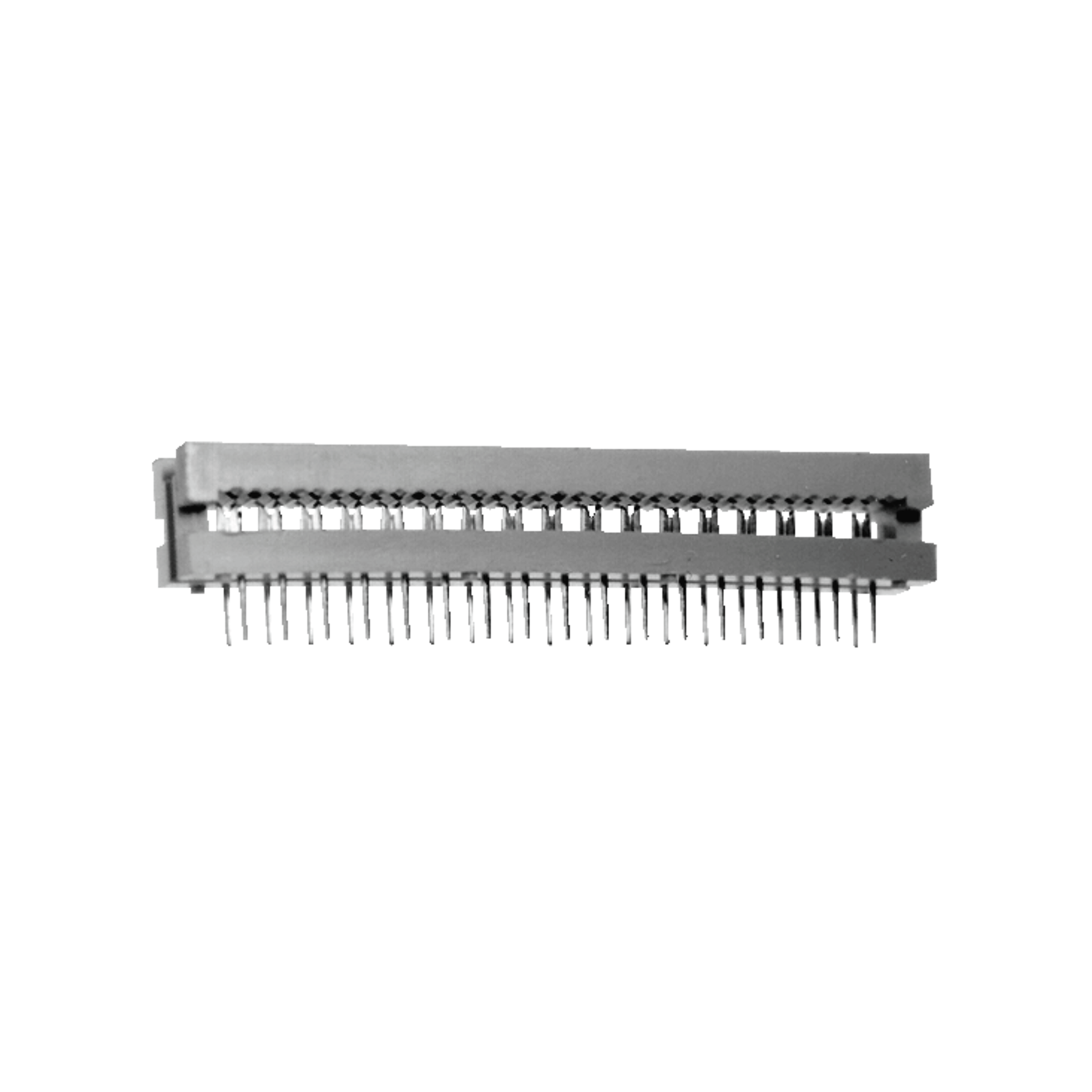

Speed IDC PCB connector SPTC-4000 60 Pole Pitch2,54mm verzinnt gray
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Planned delivery time
Ø 2 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 120 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 120 or multiple of 120)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- IDC PCB connector
- Connector Contact
- IDC
- Series
- SPTC-4000
- Colour
- gray
- Insulating body
- Polybutylenterephthalat (PBT) 20% GF
- Number of poles
- 60
- Pitch
- 2.54 mm
- Class of Inflammability
- UL 94 V-0
- Operating Temperature Max.
- 105 °C
- Rated current
- 1 A
- Operating Temperature Min.
- -40 °C
- RoHS-Conform
Specifications
Open all

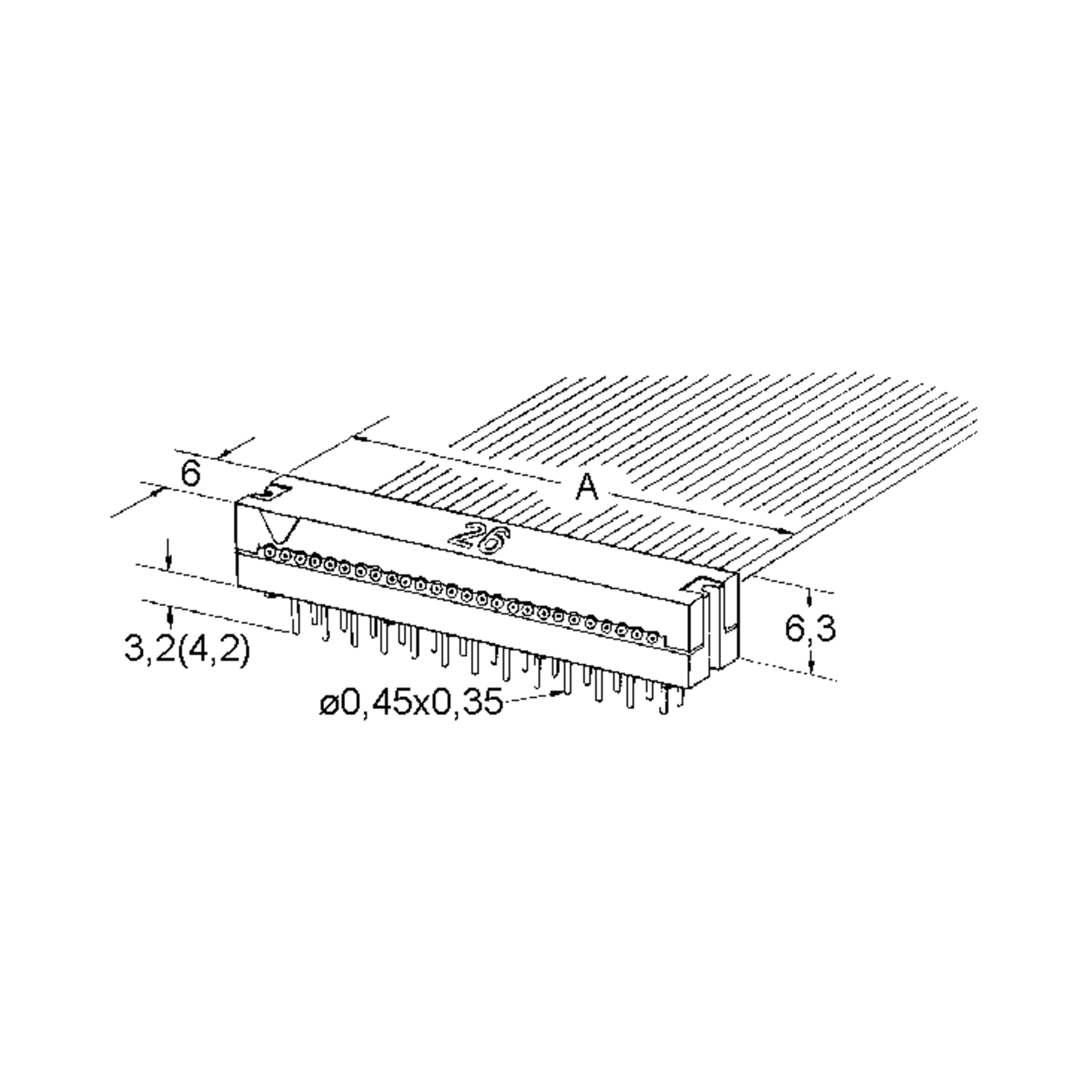

Dimensions and Weights
- Dimension: Length
- 81.2 mm
- Dimension: Width
- 6 mm
- Dimension: Height
- 6.3 mm
- Height (incl. pins)
- 9.5 mm
- Pitch
- 2.54 mm
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 105 °C
Technical Features
- Rated current
- 1 A
- Test voltage
- 1,000 V AC
- Insulation resistance
- 5.000 mOhm
- Contact resistance
- 20 mOhm
Mechanical Features
- Insulating body
- Polybutylenterephthalat (PBT) 20% GF
- Contact Surface Input
- verzinnt
Safety/Certifications
- Class of Inflammability
- UL 94 V-0
