SPMH20A-3000
Speed Tray pin strip SPMH_A 20 Pole Pitch2,54mm gray Gold über Nickel
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
180 Pcs. in stock
Planned delivery time
Ø 5 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 90 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Notice
- Interlocking latch not included in delivery
- Not suitable for the reflow soldering process- Series
- SPMH_A
- Type
- Tray pin strip
- Colour
- gray
- Number of poles
- 20
- Dimension: Length
- 34.54 mm
- Rated current
- 1 A
- Pitch
- 2.54 mm
- Operating Temperature Min.
- -25 °C
- Operating Temperature Max.
- 85 °C
- RoHS-Conform
Specifications
Open all

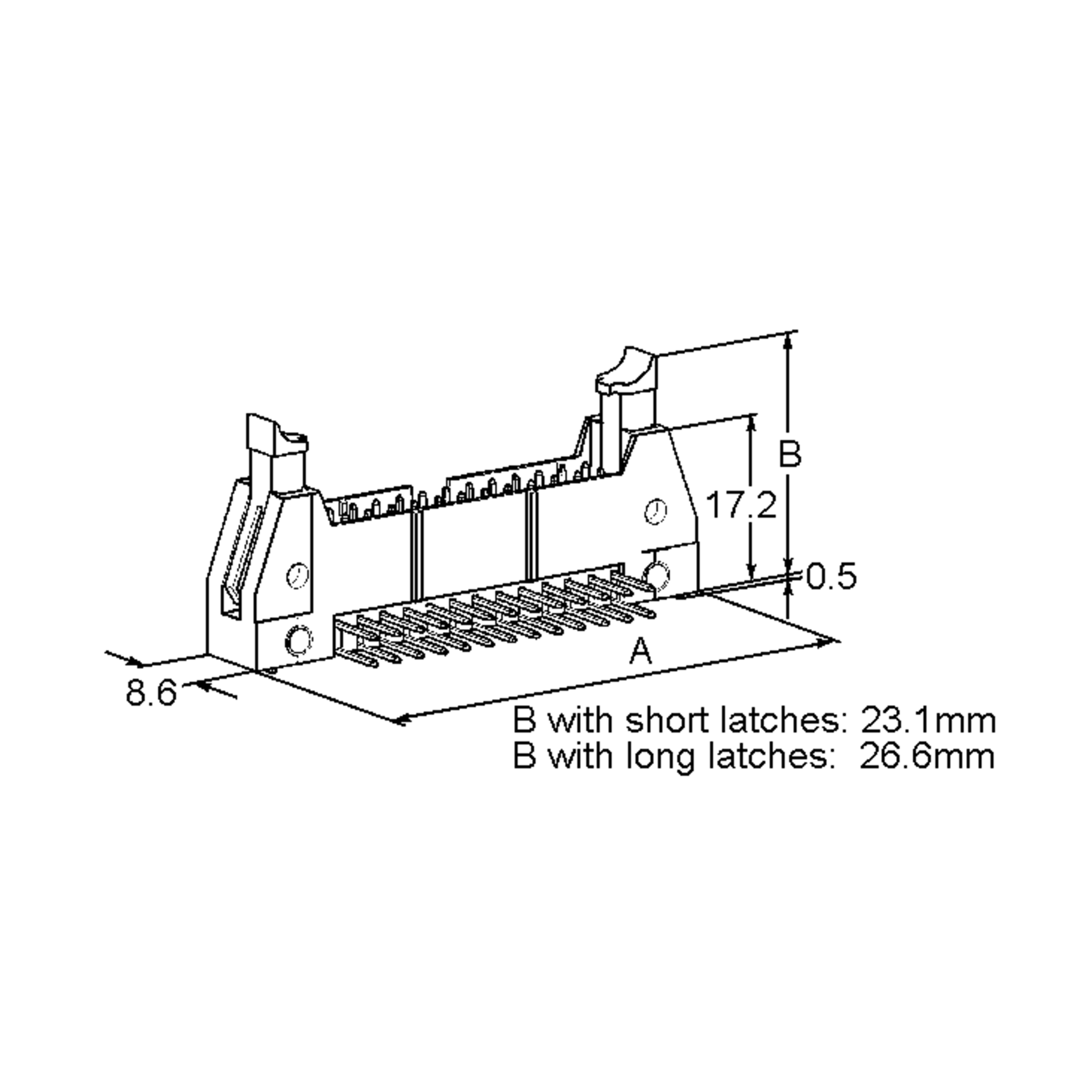

Dimensions and Weights
- Dimension: Length
- 34.54 mm
- Width (incl. pins)
- 8.6 mm
- Height (incl. pins)
- 17.2 mm
- Pitch
- 2.54 mm
- Cable length
- 8.6 mm
Operating conditions
- Operating Temperature Min.
- -25 °C
- Operating Temperature Max.
- 85 °C
Technical Features
- Rated current
- 1 A
- Dielectric strength
- 1,000 V RMS
- Insulation resistance
- 500 mOhm
- Contact resistance
- 20 mOhm
Mechanical Features
- Contact Surface Input
- Gold über Nickel
