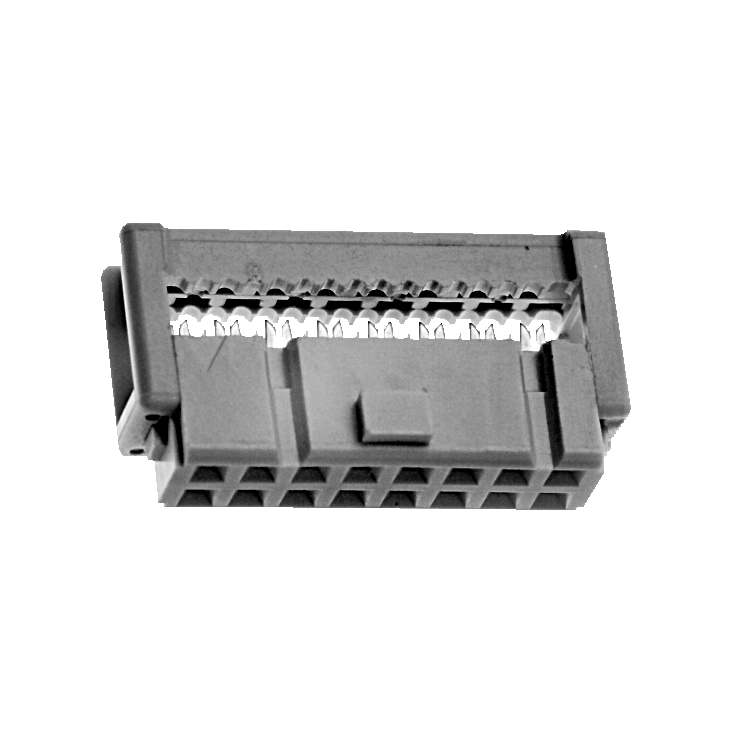

SPFH20-3000
Speed Post connector SPFH Socket Header Latching lug 2-row 20 Pole Pitch2,54mm gray
TOP
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
16.665 Pcs. in stock
Planned delivery time
Ø 2 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 250 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Contact Type
- Socket
- Type
- Post connector
- Connector Contact
- IDC
- Series
- SPFH
- Colour
- gray
- Housing material
- Polybutylenterephthalat (PBT) 20% GF
- Housing
- 2-row
- Connector Coating
- Nickel-plated
- Specifications
- Header
- Number of poles
- 20
- Pitch
- 2.54 mm
- Class of Inflammability
- UL 94 V-0
- Locking
- yes
- Locking Type
- Latching lug
- Operating Temperature Max.
- 105 °C
- Rated current
- 1 A
- Operating Temperature Min.
- -40 °C
- RoHS-Conform
