SPBH26S-300Y

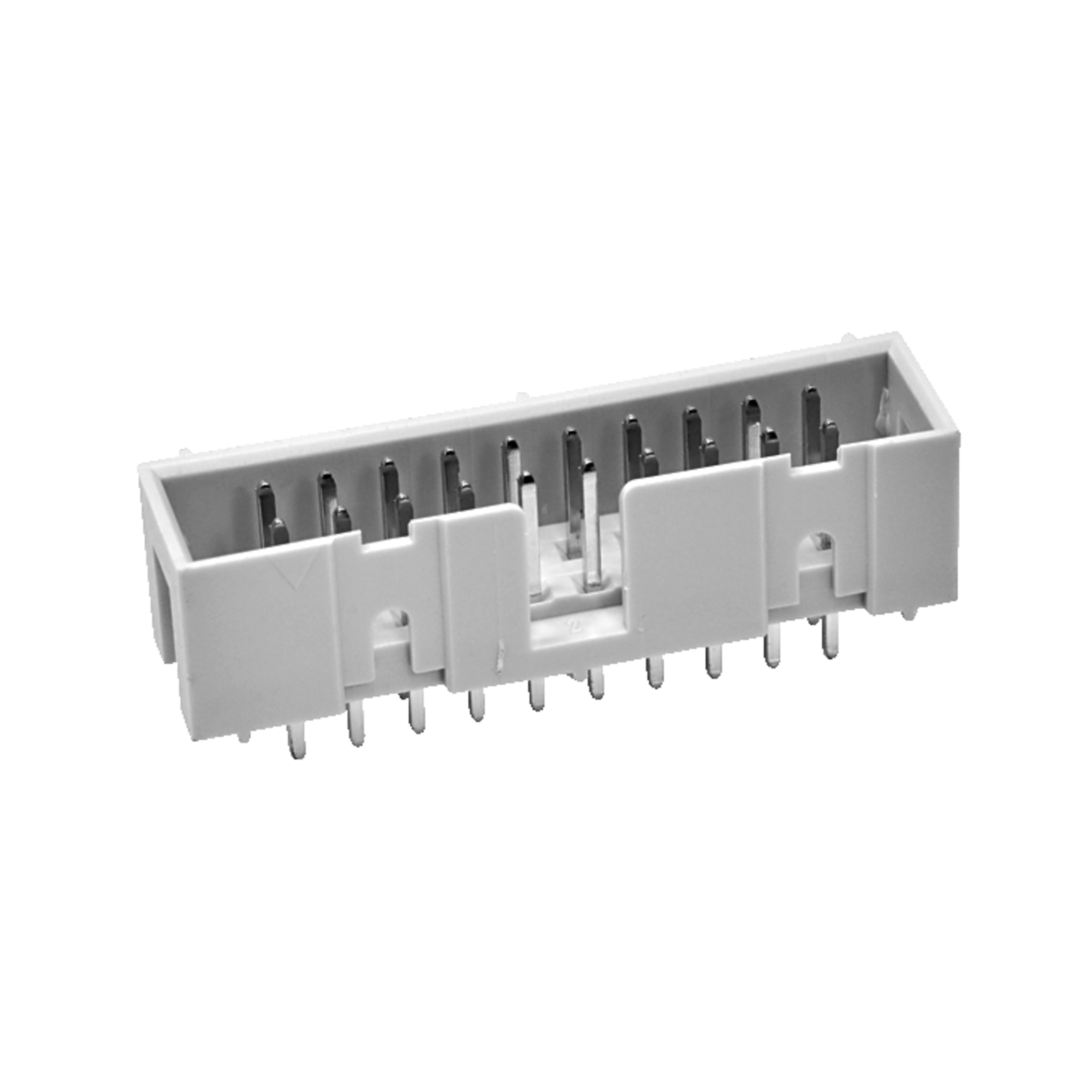

Speed Tray pin strip SPBHxxS Pin Box Header 2-row straight 26 Pole Pitch2,54mm gray vergoldet
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
54 Pcs. in stock
Planned delivery time
Ø 2 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 72 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 18 or multiple of 18)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Contact Type
- Pin
- Type
- Tray pin strip
- Connector Contact
- Solder
- Series
- SPBHxxS
- Colour
- gray
- Housing material
- Polybutylenterephthalat (PBT) 20% GF
- Housing
- 2-row
- Design
- Box Header
- Number of poles
- 26
- Pitch
- 2.54 mm
- Alignment
- straight
- Rated voltage AC
- 1,000 V AC
- Rated current
- 1 A
- Rated voltage DC
- 1,000 V DC
- RoHS-Conform
Specifications
Open all

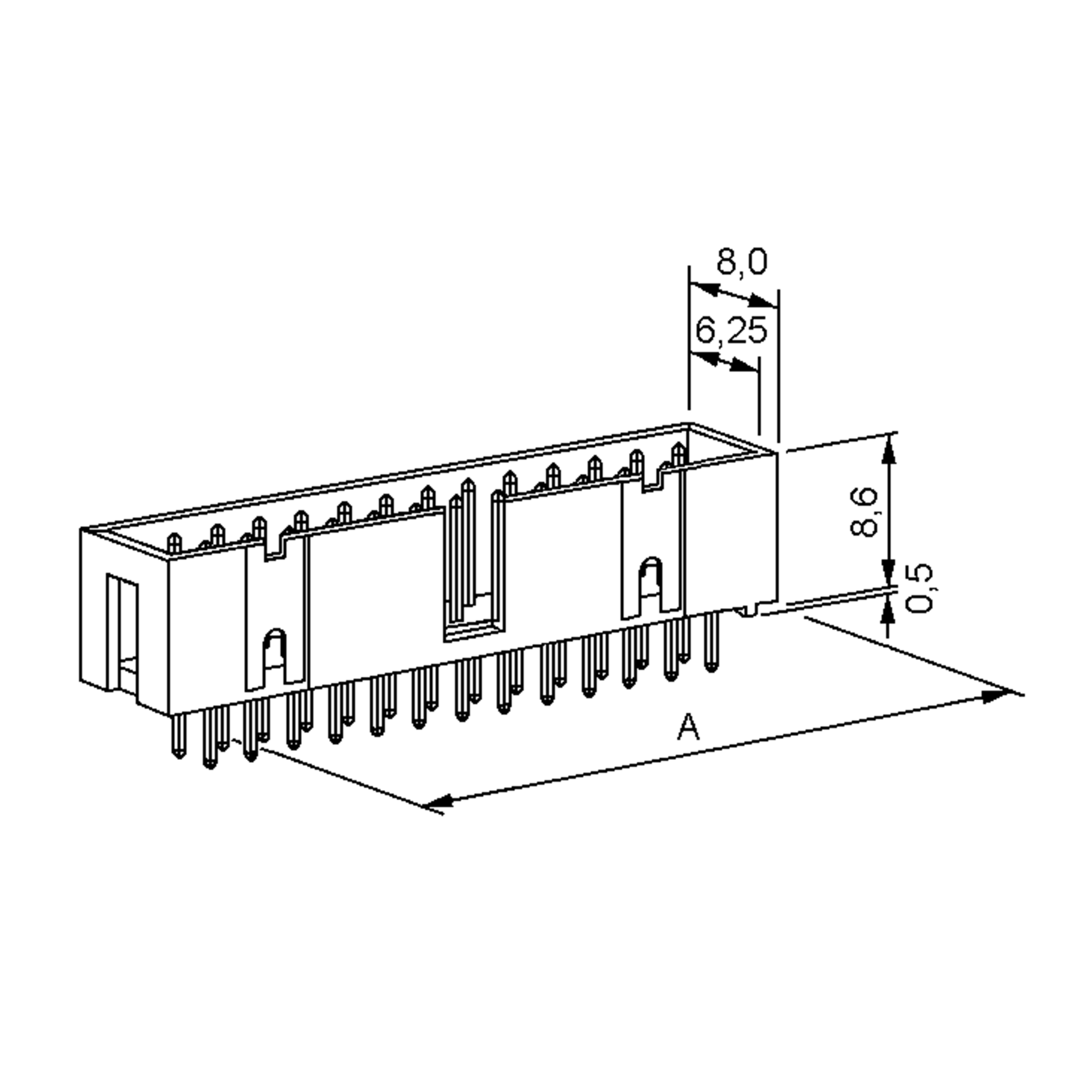

Dimensions and Weights
- Dimension: Width
- 39.9 mm
- Dimension: Height
- 11.5 mm
- Dimension: Depth
- 8 mm
- Pitch
- 2.54 mm
Technical Features
- Rated current
- 1 A
- Rated voltage AC
- 1,000 V AC
- Rated voltage DC
- 1,000 V DC
- Insulation resistance
- 5000 mOhm
- Contact resistance
- 20 mOhm
Mechanical Features
- Housing material
- Polybutylenterephthalat (PBT) 20% GF
- Contact Surface Input
- vergoldet
