EFR32BG22C112F352GM32-CR

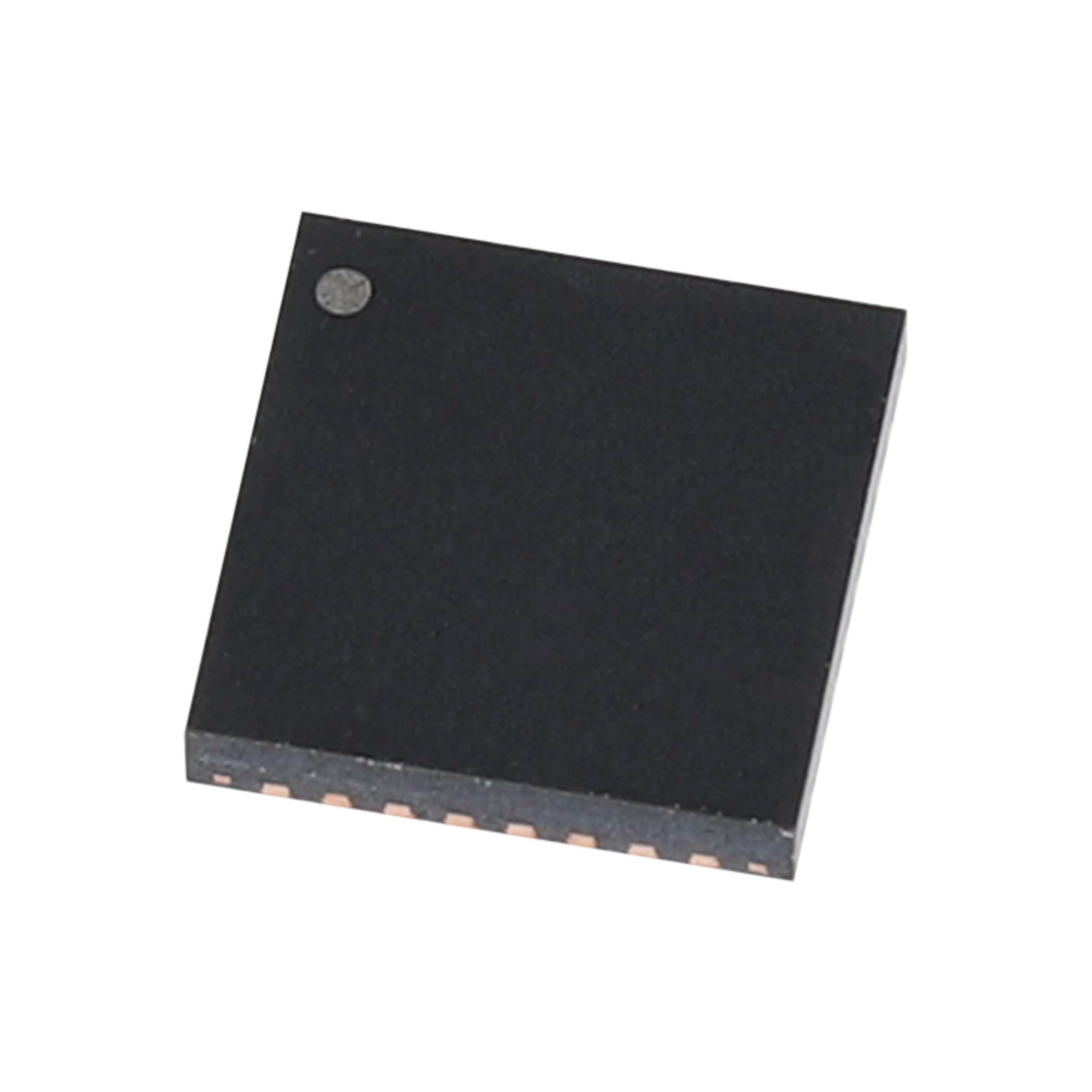

Silicon Laboratories SoC 38,4MHz ARM Cortex M33 QFN-32

32BG22112F35232-CR32BG22112F35232-CR
NEW
Manufacturer Part No.
EFR32BG22C112F352GM32-CR
Schukat Part No.
32BG22112F35232-CR
Manufacturer
Silicon Laboratories
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

0 Pcs. in stock

Planned delivery time
Ø 4 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 2500 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Manufacturer Package
QFN-32
CPU Core
ARM Cortex M33
CPU clock frequency Max.
38.4 MHz
Supply Voltage Min.
1.71 V
Supply Voltage Max.
3.8 V
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Silicon Laboratories
Product Family
  • Wireless Gecko
Type
  • SoC
Series
  • EFR32BG22
Product group
  • Y5728
Dimension: Length
  • 4 mm
Dimension: Width
  • 4 mm
Dimension: Height
  • 0.85 mm
Packaging
  • Reel
Assembly Type
  • SMD/SMT
Pin Count
  • 32
Manufacturer Package
  • QFN-32

Operating conditions

Operating Temperature, min. (TA)
  • -40 °C
Operating Temperature, max. (TA)
  • 85 °C
Storage Temperature Min.
  • -50 °C
Storage Temperature Max.
  • 150 °C

Electrical Properties

Number of Processor Core
  • 1
GPIO
  • 18
CPU Core
  • ARM Cortex M33
Bluetooth
  • Bluetooth 5 - 2M PHY, Bluetooth 5.2, Bluetooth 5.1
Security
  • RTSL, Hardware Cryptographic Acceleration for AES128/256, SHA-1, SHA-2, ECC, ECDSA, ECDH, TRNG, NIST SP800-90, AIS-31, ARM TrustZone, Secure Debug
Transmission Frequency
  • 2.4 GHz
CPU clock frequency Max.
  • 38.4 MHz
Supply Voltage Min.
  • 1.71 V
Supply Voltage Max.
  • 3.8 V
Flash
  • 0.352 MB
Real-Time Clock
Crypto Engine
USB OTG
