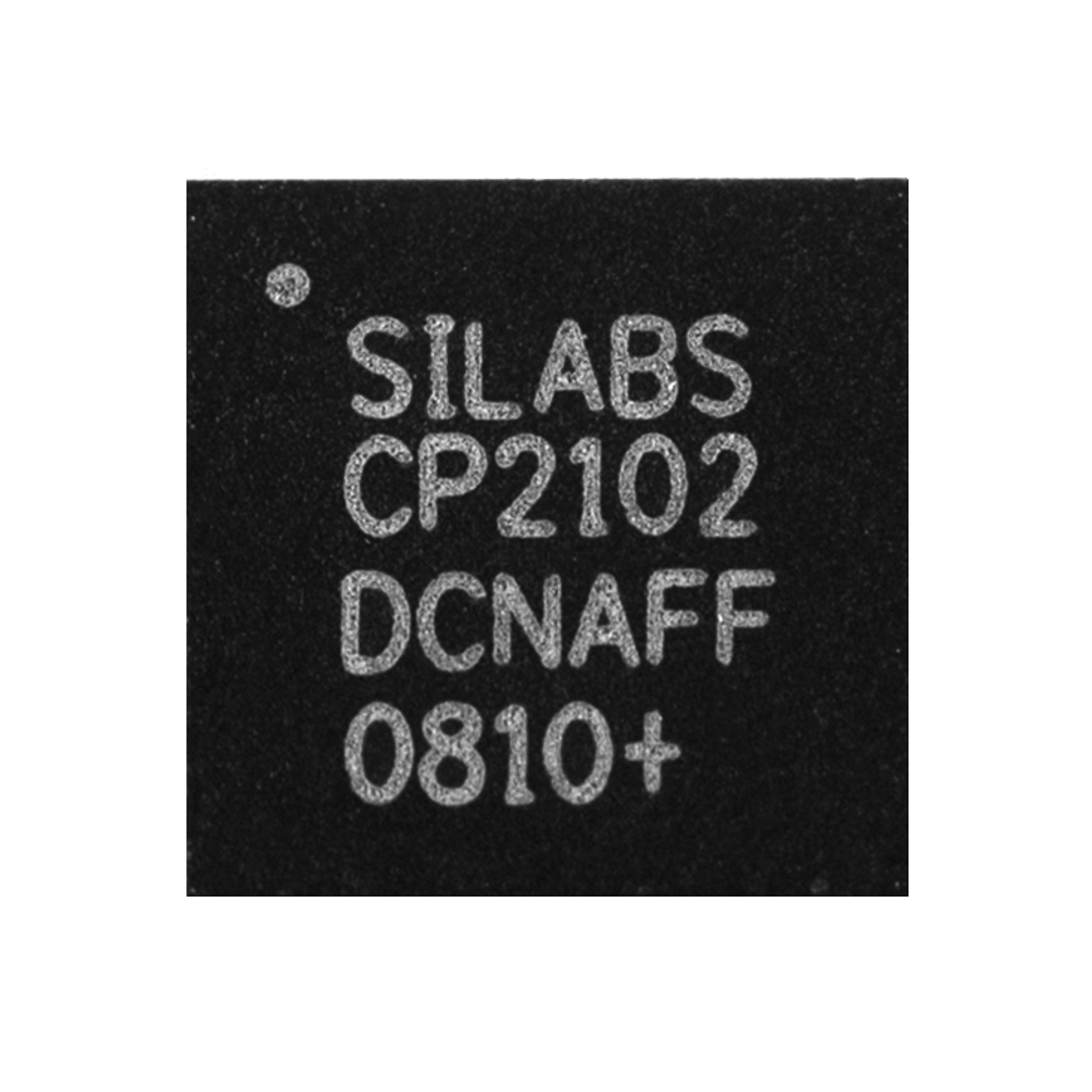

CP2102N-A02-GQFN28
Silicon Laboratories USB to UART Bridge IC 12Mbps 13.700µA QFN-28
Manufacturer Part No.
CP2102N-A02-GQFN28
Schukat Part No.
CP2102N-A02-GQFN28
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
146 Pcs. in stock
Planned delivery time
Ø 50 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 73 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- USB to UART Bridge IC
- Supply Voltage Min.
- 3 V
- Supply Voltage Max.
- 3.6 V
- USB Speed
- 12 Mbps
- Supply Current
- 13,700 µA
- Manufacturer Package
- QFN-28
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
- Storage Temperature Min.
- -65 °C
- Storage Temperature Max.
- 150 °C
Electrical properties
- Supply Current
- 13,700 µA
- Supply Voltage Min.
- 3 V
- Supply Voltage Max.
- 3.6 V
- USB Speed
- 12 Mbps
