R13112AAAA

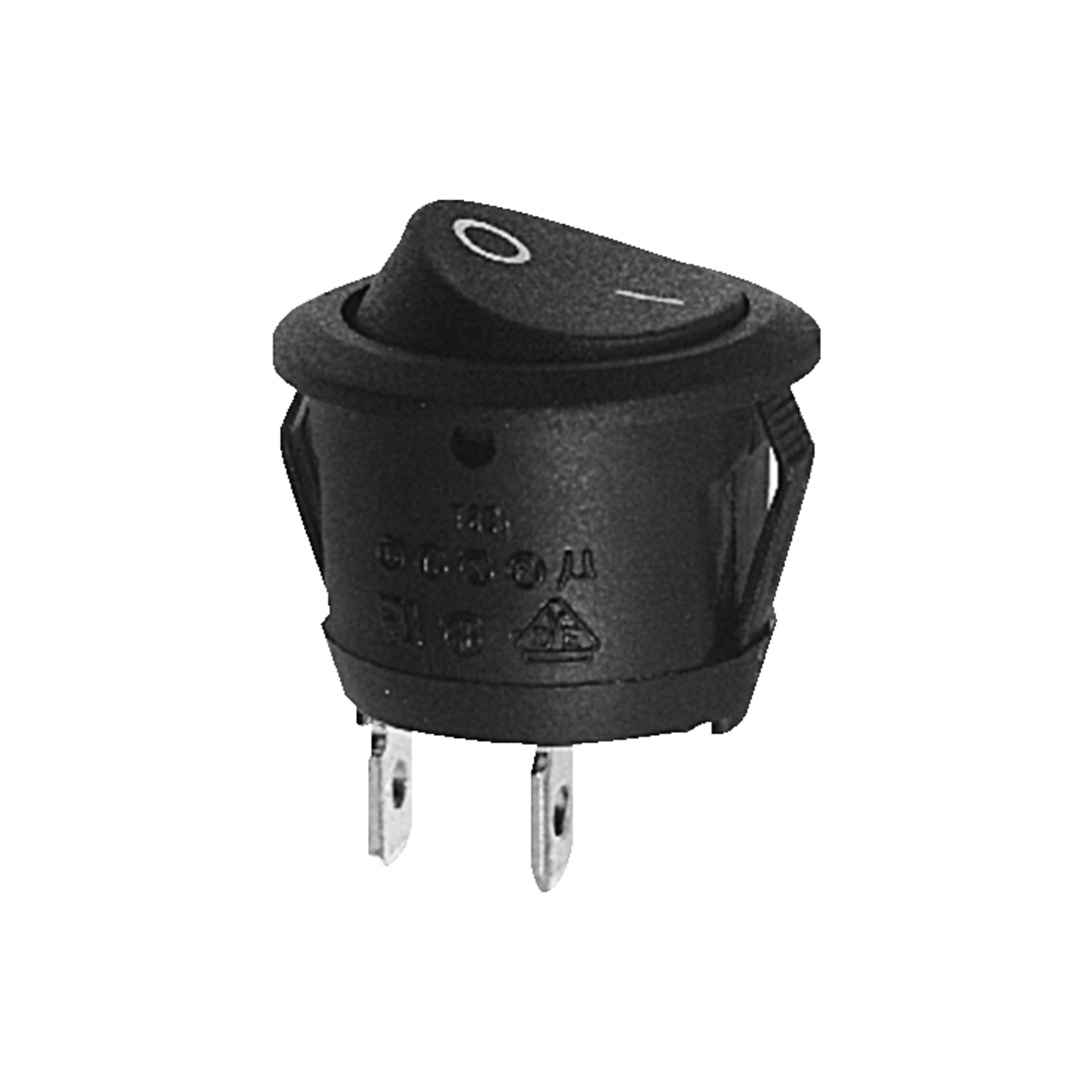

Shin Chin Rocker Switches R13-112 1x0-E black I/O Ø20,2mm 250VAC 10A unlit
TOP
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
9.670 Pcs. in stock
Next Stock Receipt
Week 02/2025
2.000 Pcs.
2.000 Pcs.
Planned delivery time
Ø 19 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 200 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Rocker Switches
- Series
- R13-112
- Body colour
- black
- contacts
- 1xNO
- Type of actuator
- Rocker
- Function
- 1x0-E
- Imprint
- I/O
- Actuator colour
- black
- Diameter
- 20.2 mm
- illumination
- unlit
- Operating voltage AC
- 250 V AC
- Switching current, max.
- 10 A
- Panel cut out
- Ø20,2mm
- Operating temperature range, max.
- 85 °C
- Approvals
- CE
ENEC15
UL
VDE
cCSA - Flammability
- UL94V2
- RoHS-Conform
Specifications
Open all

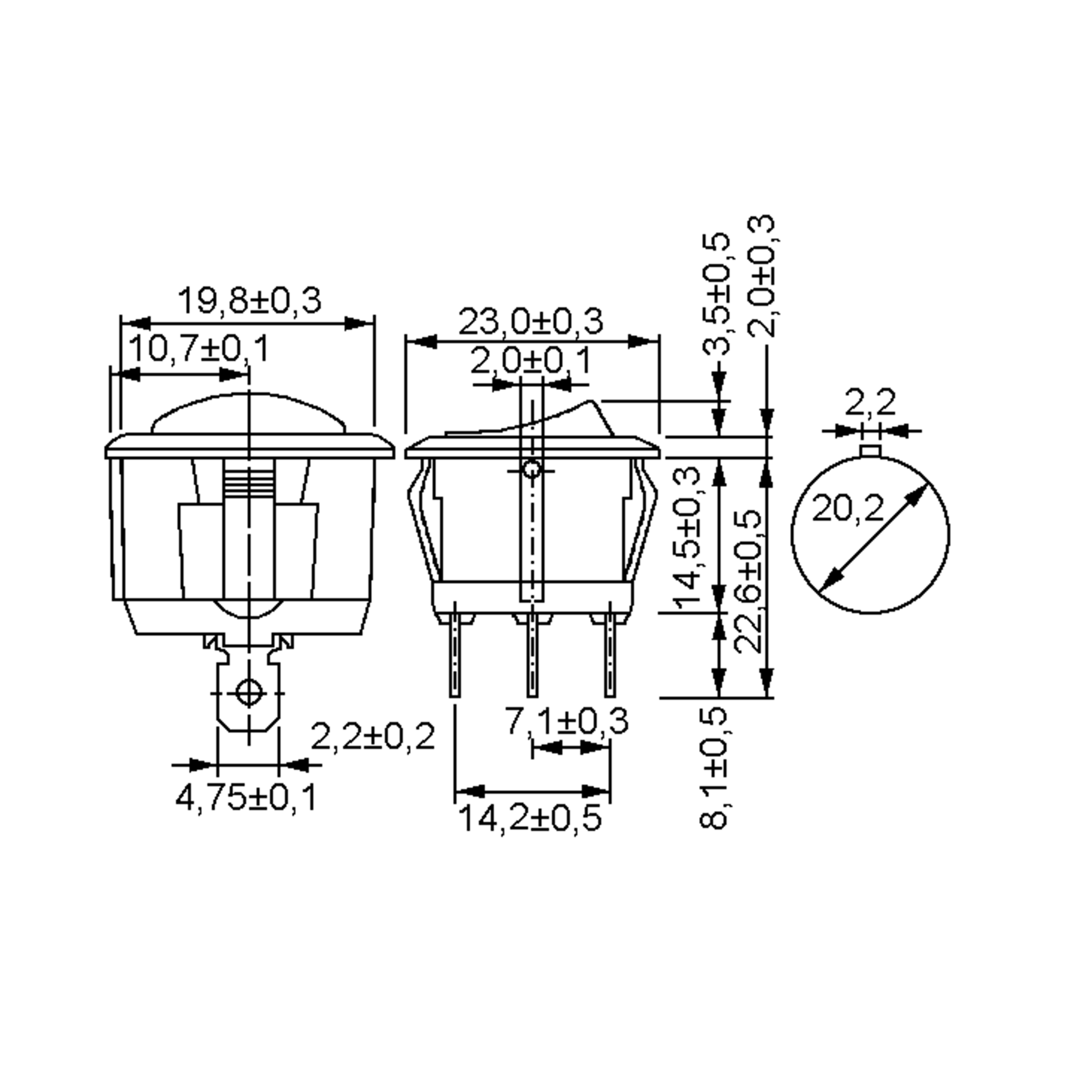

Dimensions and weights
- Dimension: Height
- 18 mm
- Diameter
- 20.2 mm
- Panel cut out
- Ø20,2mm
Operating conditions
- Operating temperature range, max.
- 85 °C
Technical features
- Operating voltage AC
- 250 V AC
- Switching current, max.
- 10 A
- Insulation resistance, min.
- 100 MOhm
- Material: Body
- Nylon 6.6
- Material: Actuator
- Nylon 6.6
- Material: Terminals
- silver, plated
Safety/Certifications
- Approvals
- CE
- ENEC15
- UL
- VDE
- cCSA
- Flammability
- UL94V2
