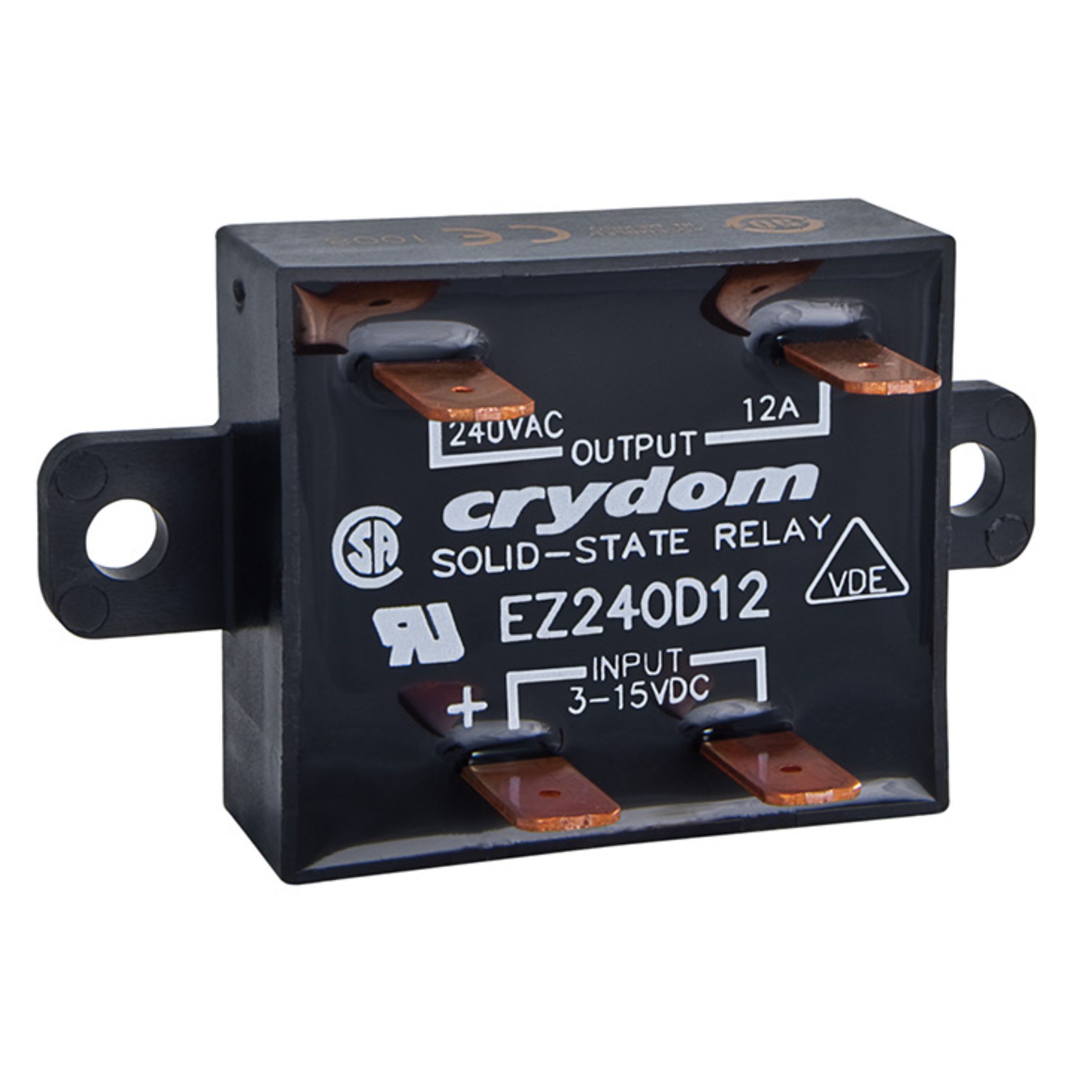

EZ240D12S
Sensata/Crydom Electronic Solid State Relays 24V 12A Mini-Puck
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
28 Pcs. in stock
Planned delivery time
Ø 24 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 20 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Load voltage min.
- 24 V
- Rated load current
- 12 A
- Control voltage min.
- 3 V
- Control voltage max.
- 15 V
- Manufacturer Package
- Mini-Puck
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 80 °C
Electrical properties
- Rated load current
- 12 A
- Control voltage min.
- 3 V
- Control voltage max.
- 15 V
- Load voltage min.
- 24 V
- Load voltage max.
- 280 V
Safety/Certifications
- Approvals
- CE
- CSA
- TÜV
- UL
Documents
sensata-EZ-Series-Panel-Mount-SSRs-installation-guide.pdf
sensata-EZ-Series-Panel-Mount-SSRs-installation-guide.pdf
