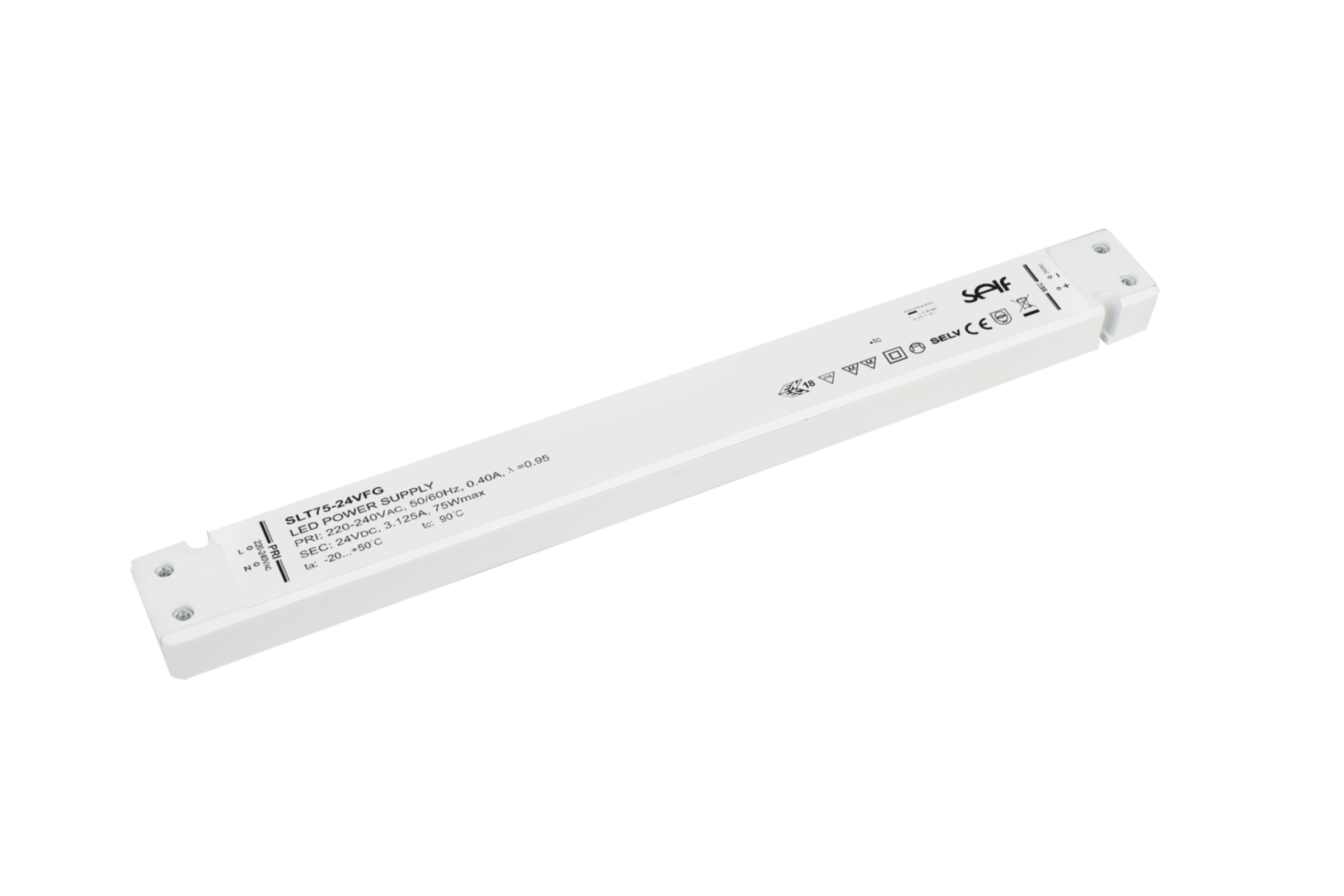

SLT75-24VFG
Self AC/DC LED power supply unit CV 75W 24V 3,100A IP20 not dimmable
TOP
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
378 Pcs. in stock
Next Stock Receipt
Week 09/2025
500 Pcs.
500 Pcs.
Planned delivery time
Ø 16 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 50 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Operating mode
- CV
- Output Power
- 75 W
- Output voltage
- 24 V
- Output current
- 3.100 A
- Protection Class IP
- IP20
- Interfaces
- not dimmable
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating expectation
- 50,000 h
- Operating Temperature Min.
- -20 °C
- Operating Temperature Max.
- 45 °C
- Storage Temperature Min.
- -30 °C
- Storage Temperature Max.
- 80 °C
Input
- Mains frequency min.
- 50 Hz
- Mains frequency max.
- 60 Hz
- Input voltage min. AC
- 220 V
- Input voltage max. AC
- 240 V
- Input current
- 0.4 A
- Efficiency
- 90 %
- No load power, less than
- 0.5 W
- Inrush current, max.
- 46 A
- Max. number on B16 circuit breaker
- 14
- Max. number on C16 circuit breaker
- 24
- Power factor correction (PFC)
- Power factor
- 0.95
- Connection type, input
- Screw Terminal
Output
- Number of outputs
- 1
- Output Power
- 75 W
- Output voltage
- 24 V
- Output voltage tolerance
- -5 %
- Ripple & Noise
- 200 mVp-p
- Selectable output current
- Output current
- 3.100 A
- Overload protection
- Short-circuit protection
- Overvoltage protection
- Overtemperature protection
- Connection type, output
- Screw Terminal
Safety/Certifications
- Protection class
- II
- Protection Class IP
- IP20
- Approvals
- CE
- EN
- ENEC
- UKCA
- Standards (EMC)
- EN 55015
- Standards (safety)
- EN 61347-1
- EN 61347-2-13
