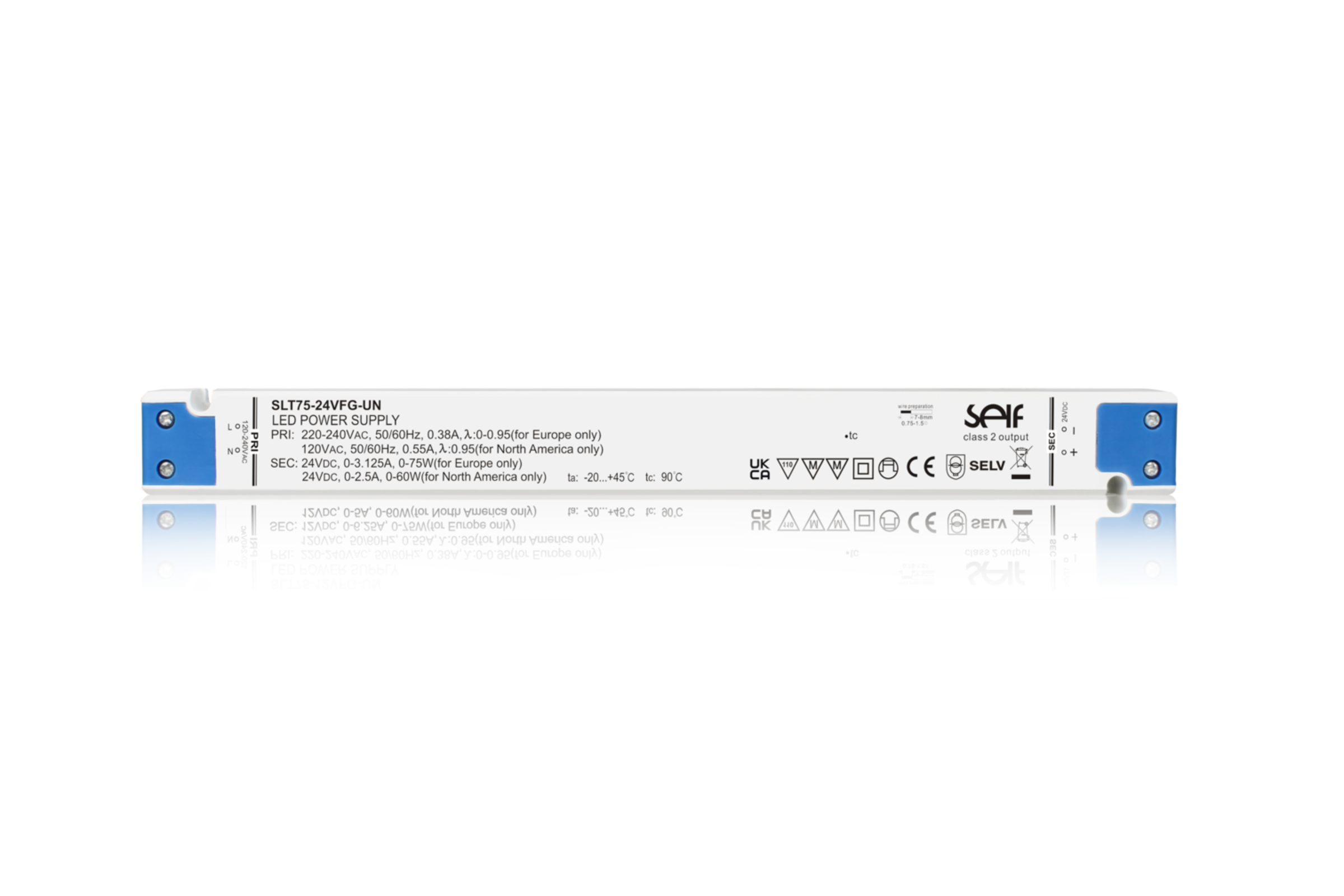

SLT75-24VFG-UN

Self AC/DC LED power supply unit CV 75W 24V 3,125A IP20 not dimmable

SLT75-24VFG-UNSLT75-24VFG-UN
NEW
Manufacturer Part No.
SLT75-24VFG-UN
Schukat Part No.
SLT75-24VFG-UN
Manufacturer
Self
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

1 Pcs. in stock

Next Stock Receipt
Week 44/2026
50 Pcs.
Planned delivery time
Ø 16 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 50 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Notice
Cross-references:
Here you will find suitable surge protection devices.
Here you will find suitable inrush current limiters.
Here you will find suitable EMC & noise suppression components.
Operating mode
CV
Output Power
75 W
Output voltage
24 V
Output current
3.125 A
Protection Class IP
IP20
Interfaces
not dimmable
RoHS-Conform

Specifications

Close all

General

Manufacturer
  • Self
Series
  • SLT75-VFG-UN
Product group
  • M8243
Application
  • Lighting
Operating mode
  • CV
Package/Case
  • Enclosed Plastic
Dimension: Length
  • 298 mm
Dimension: Width
  • 30 mm
Dimension: Height
  • 16.5 mm
Weight
  • 155 g
Label
  • MM-Zeichen; SELV
Interfaces
  • not dimmable
Manufacturer's warranty (years)
  • 5
Product description
  • This type of power supply is a specially developed, stabilised power supply for LED lamps. With its constant-voltage (CV) technology, it is suitable for constant-voltage lamps (12/24 V DC) connected in parallel. One advantage of constant-voltage (CV) technology is that a switch can be installed between the secondary side and the lamps. The integrated protection circuit cuts off the power supply in the event of the following faults: open circuit, short circuit, overload. The power supply restarts automatically once the fault has been rectified.
Features
  • Independent Control Gear
Application note
  • Power supply for the operation of LED light sources. Used electronic devices are recyclable materials and do not belong in household waste. If the device is at the end of its service life, dispose of it in accordance with the applicable legal regulations at the collection points of the disposal system. Disposal via the household waste is prohibited.
Notice

Operating conditions

MTBF
  • 50,000 h
Operating expectation
  • 50,000 h
Operating Temperature Min.
  • -20 °C
Operating Temperature Max.
  • 45 °C
Storage Temperature Min.
  • -30 °C
Storage Temperature Max.
  • 80 °C

Input

Mains frequency min.
  • 50 Hz
Mains frequency max.
  • 60 Hz
Input voltage min. AC
  • 120 V
Input voltage max. AC
  • 240 V
Input current
  • 0.38 A
Efficiency
  • 92.5 %
No load power, less than
  • 0.5 W
Inrush current, max.
  • 45 A
Max. number on B16 circuit breaker
  • 14
Max. number on C16 circuit breaker
  • 17
Power factor correction (PFC)
Power factor
  • 0.95
Connection type, input
  • Screw Terminal

Output

Number of outputs
  • 1
Output Power
  • 75 W
Output voltage
  • 24 V
Output voltage tolerance
  • -5.5 %
Ripple & Noise
  • 200 mVp-p
Output current
  • 3.125 A
Overload protection
Short-circuit protection
Overvoltage protection
Overtemperature protection
Connection type, output
  • Screw Terminal

Safety/Certifications

Protection class
  • II
Protection Class IP
  • IP20
Approvals
  • CE
  • EN
  • ENEC
  • UL
Standards (EMC)
  • EN 55015
Standards (safety)
  • EN 61347-1
  • EN 61347-2-13
  • UL 8750

Documents

Self_Katalog_2026.pdf
Download (pdf, 5.829 KB)
SLT75-12 24VFG-UN.pdf
Download (pdf, 241 KB)

Other Products

All Products of the Series
NEW
Loading...

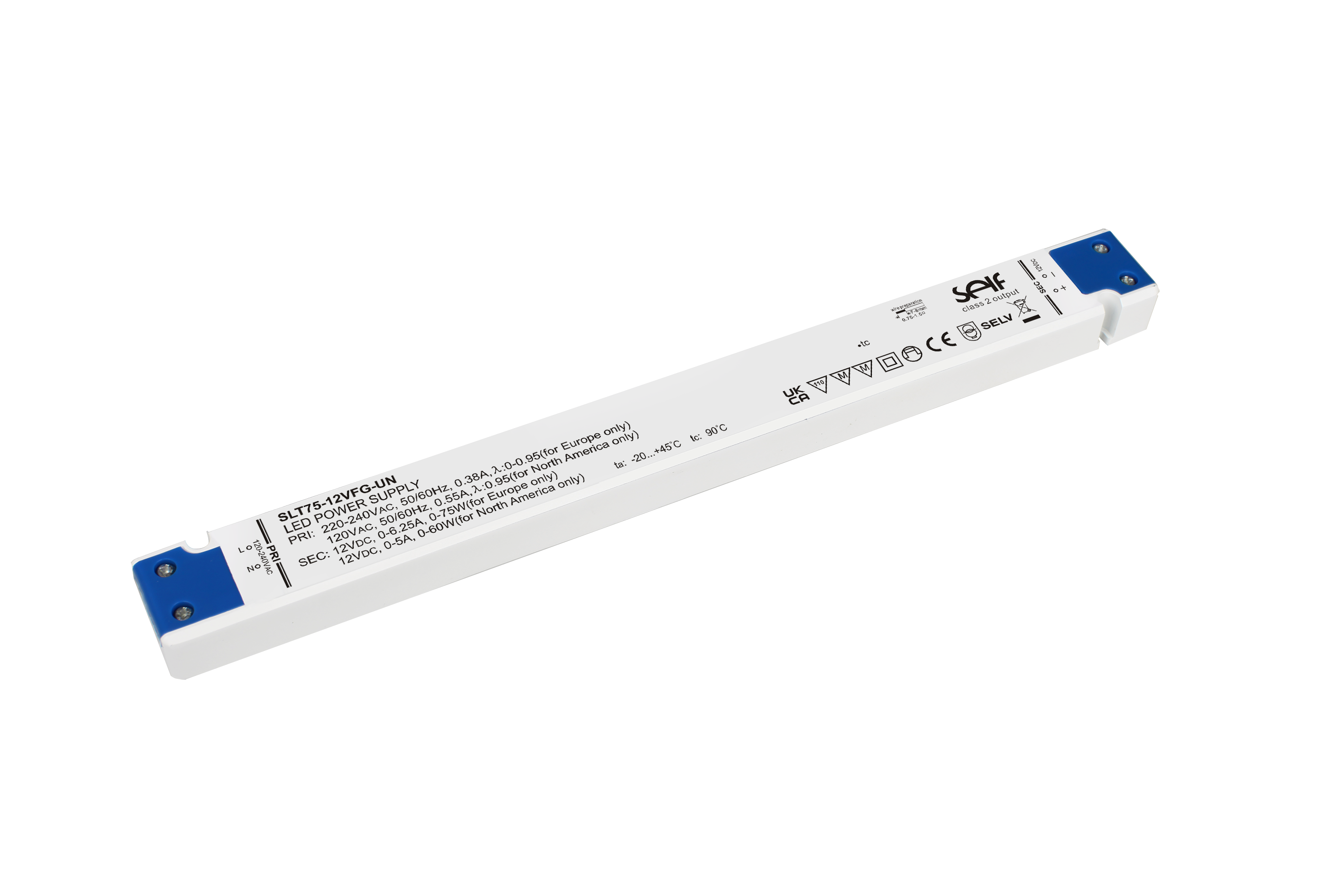

SLT75-12VFG-UN
