SLT4-500ISC

Self AC/DC LED power supply unit CC 4W 0,500A IP66 not dimmable

Manufacturer Part No.
SLT4-500ISC
Schukat Part No.
SLT4-500ISC
Manufacturer
Self
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

0 Pcs. in stock

Back Order
200 Pcs.
Planned delivery time
Ø 16 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available on order
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 200 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 200 or multiple of 200)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Operating mode
CC
Output Power
4 W
Output current
0.500 A
Output Voltage Min.
3 V
Output Voltage Max.
9.5 V
Protection Class IP
IP66
Interfaces
not dimmable
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Self
Series
  • SLT4-ISC
Product group
  • M8508 Self SLT4-ISC LED SPS CC 4W
Application
  • Lighting
Operating mode
  • CC
Package/Case
  • Enclosed Plastic

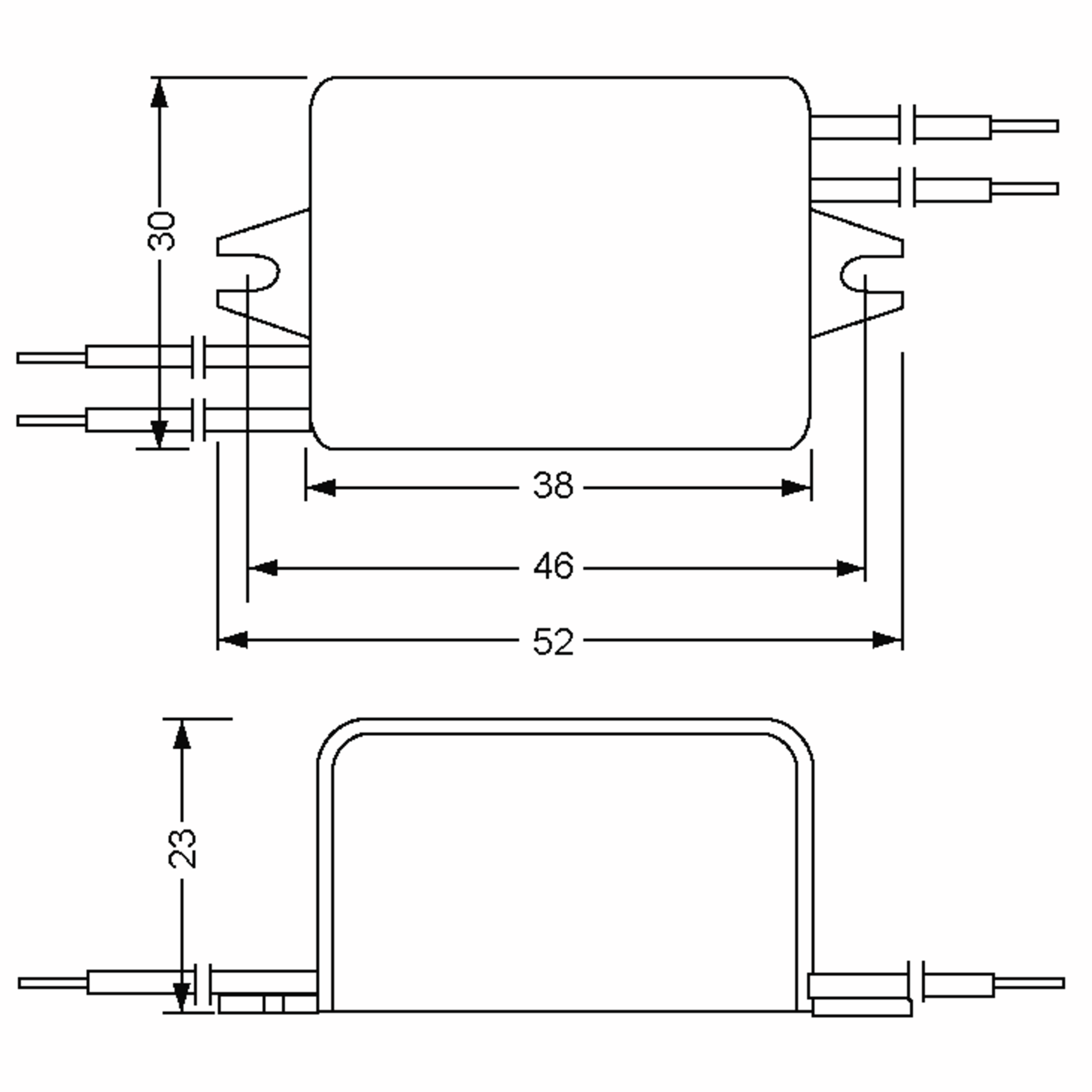

Dimension: Length
  • 52 mm
Dimension: Width
  • 30 mm
Dimension: Height
  • 23 mm
Weight
  • 42 g
Label
  • SELV; MM-Zeichen; FCC
Dimmable
Interfaces
  • not dimmable
Manufacturer's warranty (years)
  • 3

Operating conditions

Operating expectation
  • 35,000 h
Operating Temperature Min.
  • -20 °C
Operating Temperature Max.
  • 50 °C
Storage Temperature Min.
  • -30 °C
Storage Temperature Max.
  • 80 °C

Input

Mains frequency min.
  • 50 Hz
Mains frequency max.
  • 60 Hz
Input voltage min. AC
  • 100 V
Input voltage max. AC
  • 240 V
Input current
  • 0.06 A
Efficiency
  • 63 %
No load power, less than
  • 0.5 W
Inrush current, max.
  • 30 A
Max. number on B16 circuit breaker
  • 94
Max. number on C16 circuit breaker
  • 160
Power factor correction (PFC)
Power factor
  • 0.45
Connection type, input
  • Strand

Output

Number of outputs
  • 1
Output Power
  • 4 W
Output Voltage Min.
  • 3 V
Output Voltage Max.
  • 9.5 V
Selectable output current
Output current
  • 0.500 A
Output current tolerance
  • -10 %
Overload protection
Short-circuit protection
Overvoltage protection
Overtemperature protection
Connection type, output
  • Strand

Safety/Certifications

Protection class
  • II
Protection Class IP
  • IP66
Approvals
  • CE
  • EN
  • UKCA
  • UL
Standards (EMC)
  • EN 55015
Standards (safety)
  • EN 61347-1
  • EN 61347-2-13
  • UL 1310
  • UL 8750
