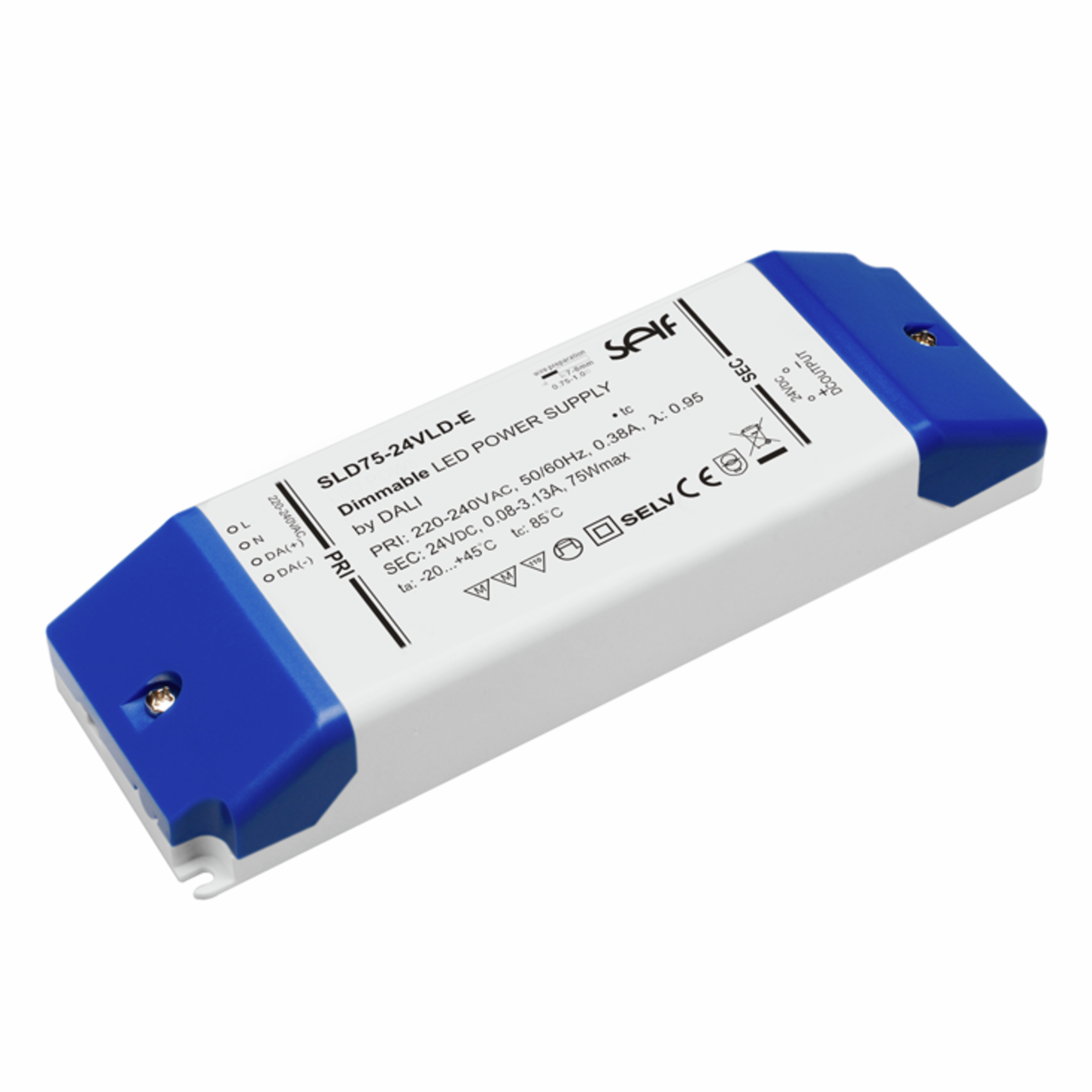

SLD75-24VLD-E

Self AC/DC LED power supply unit CV 75W 24V 3,13A IP20 Dali

SLD75-24VLD-ESLD75-24VLD-E
Manufacturer Part No.
SLD75-24VLD-E
Schukat Part No.
SLD75-24VLD-E
Manufacturer
Self
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

Item no longer available!

Planned delivery time
---
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
EOL 17.12.2024
Cancelled by manufacturer with replacement
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 30 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Notice
Cross-references:
Here you will find suitable surge protection devices.
Here you will find suitable inrush current limiters.
Here you will find suitable EMC & noise suppression components.
Operating mode
CV
Output Power
75 W
Output voltage
24 V
Output current
3.130 A
Protection Class IP
IP20
Interfaces
Dali
RoHS-Conform

Specifications

Close all

General

Manufacturer
  • Self
Series
  • SLD75-VLD-E
Product group
  • M8451
Application
  • Lighting
Operating mode
  • CV
Package/Case
  • Enclosed Plastic
Dimension: Length
  • 185 mm
Dimension: Width
  • 60 mm
Dimension: Height
  • 31 mm
Weight
  • 420 g
Label
  • MM-Zeichen; SELV
Dimmable
Interfaces
  • Dali
Manufacturer's warranty (years)
  • 5
Features
  • Independent Control Gear
Application note
  • Power supply for operating LED light sources. Old electronic equipment is recyclable and must not be disposed of with household waste. If the appliance has reached the end of its useful life, please dispose of it in accordance with the applicable legal requirements at the collection points of the waste disposal scheme. Disposal via household waste is prohibited.
Notice

Operating conditions

MTBF
  • 100,000 h
Operating expectation
  • 50,000 h
Operating Temperature Min.
  • -20 °C
Operating Temperature Max.
  • 45 °C
Storage Temperature Min.
  • -30 °C
Storage Temperature Max.
  • 80 °C

Input

Mains frequency min.
  • 50 Hz
Mains frequency max.
  • 60 Hz
Input voltage min. AC
  • 220 V
Input voltage max. AC
  • 240 V
Input current
  • 0.38 A
Efficiency
  • 90 %
No load power, less than
  • 0.5 W
Power consumption in networked standby mode (Pnet), less than
  • 0.5 W
Inrush current, max.
  • 27 A
Max. number on B16 circuit breaker
  • 14
Max. number on C16 circuit breaker
  • 25
Power factor correction (PFC)
Power factor
  • 0.95
Connection type, input
  • Screw Terminal

Output

Number of outputs
  • 1
Output Power
  • 75 W
Output voltage
  • 24 V
Output voltage tolerance
  • -5.5 %
Ripple & Noise
  • 500 mVp-p
Output current
  • 3.130 A
Overload protection
Short-circuit protection
Overvoltage protection
Overtemperature protection
Connection type, output
  • Screw Terminal

Safety/Certifications

Protection class
  • II
Protection Class IP
  • IP20
Approvals
  • CE
  • EN
  • UKCA
Standards (EMC)
  • EN 55015
Standards (safety)
  • EN 61347-1
  • EN 61347-2-13
