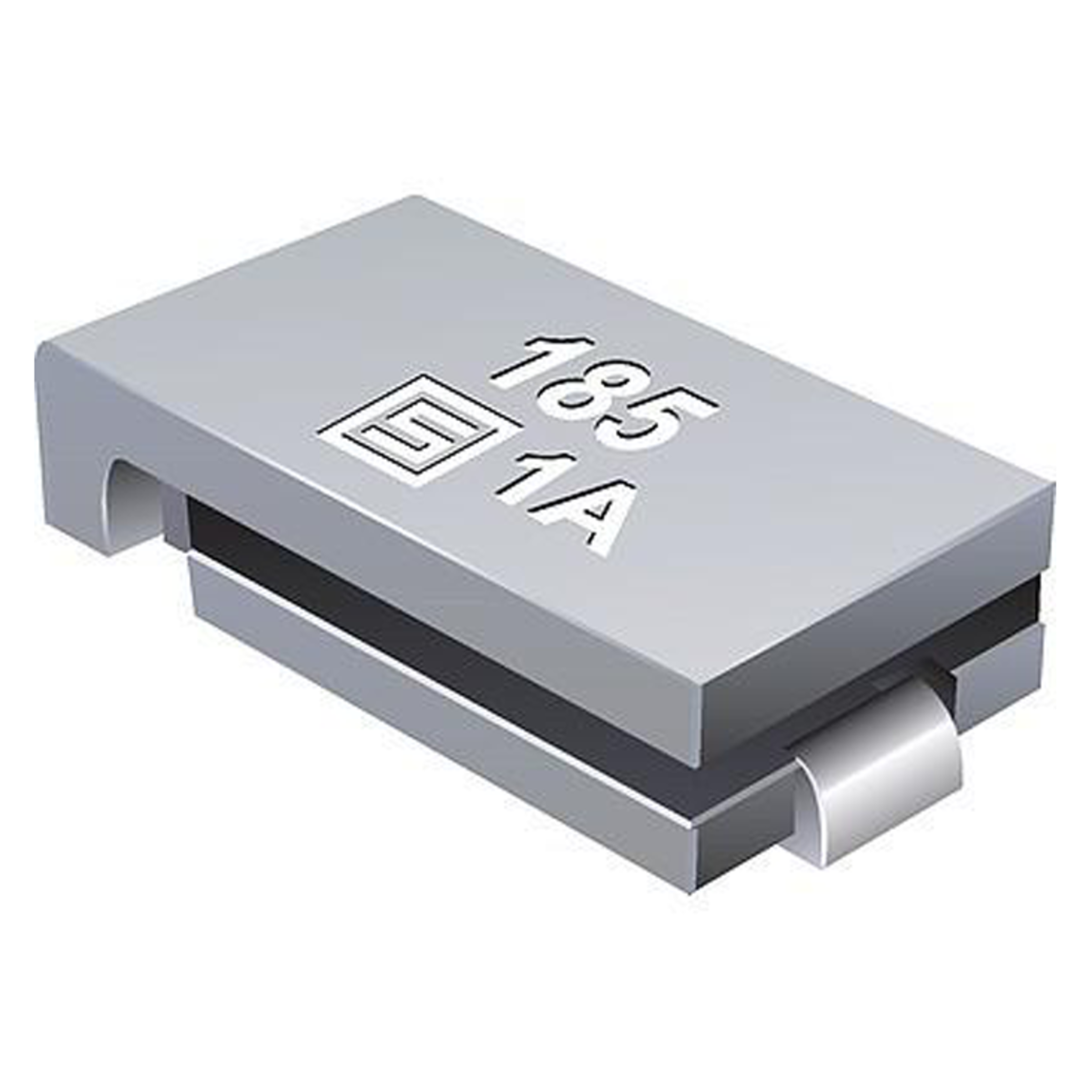

PFSM.030.2

Schurter Poly-Switch Fuse PFSM 60VDC 0,3A SMD 2920 AEC-Q200

PFSM.030.2PFSM.030.2
Manufacturer Part No.
PFSM.030.2
Schukat Part No.
PFSM.030.2
Manufacturer
Schurter
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

1.100 Pcs. in stock

Planned delivery time
Ø 8 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 2000 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Type
Self-resetting fuse
Series
PFSM
Housing
2920
Rated current
0.3 A
Interrupting Current, Max.
40 A
Rated voltage V DC
60 V DC
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Schurter
Series
  • PFSM
Type
  • Self-resetting fuse
Product group
  • E1279
Housing
  • 2920
Assembly
  • SMD
Contact material
  • Brass tin plated
Applications
  • Protection against overcurrent and short circuits in devices. Ideal for use in computers and peripherals, electronics in general, and automotive applications.
Termination Style
  • SMD
Features

  • • Self-resetting fuse elements
    • Low power loss due to low resistance during normal operation
    • Protection against overcurrent and short circuits in devices
    • The operating principle is based on the PTC effect. During normal operation, the resistance of the element is very low, resulting in minimal power losses. In the event of a fault, such as a short circuit or overcurrent, the resistance of this element increases, protecting the device. After the fault is cleared and the supply voltage is switched off, the element quickly returns to its low-resistance state.
    • Directly solderable onto printed circuit boards
    • AEC-Q200 compliant

Application note
  • • These components are designed for protection against overcurrent and overtemperature.
    • Not for continuous, repetitive switching operations.
    • When handling products that come into contact with electrical voltage, the applicable VDE regulations must be observed.

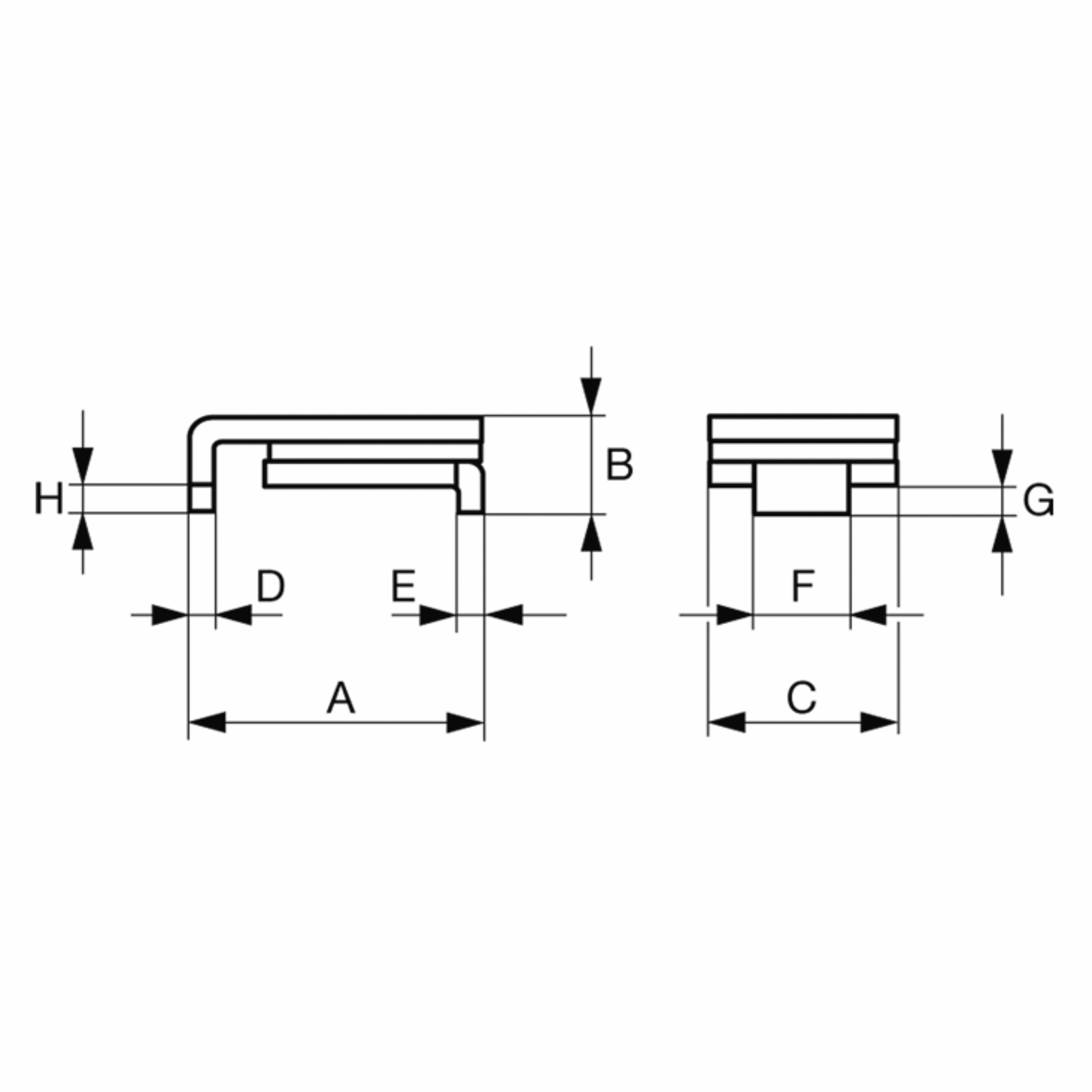

Dimensions and Weights

Dimension: Length
  • 7.98 mm
Dimension: Width
  • 5.44 mm
Dimension: Height
  • 3.18 mm

Operating conditions

Operating temperature range, min.
  • -40 °C
Operating temperature range, max.
  • 85 °C

Technical Features

Rated current
  • 0.3 A
Interrupting Current, Max.
  • 40 A
Rated voltage V DC
  • 60 V DC
Max. resistance 1 hour after switching off
  • 4,800 mOhm
Tripping time with specified reference current IS
  • 3 s
Power loss, max.
  • 1,7 W
Solderability
  • 245 °C / 3 s

Safety/Certifications

Qualification
  • AEC-Q200
Approvals
  • CE
  • MOT
  • cULus
