PFRA.040

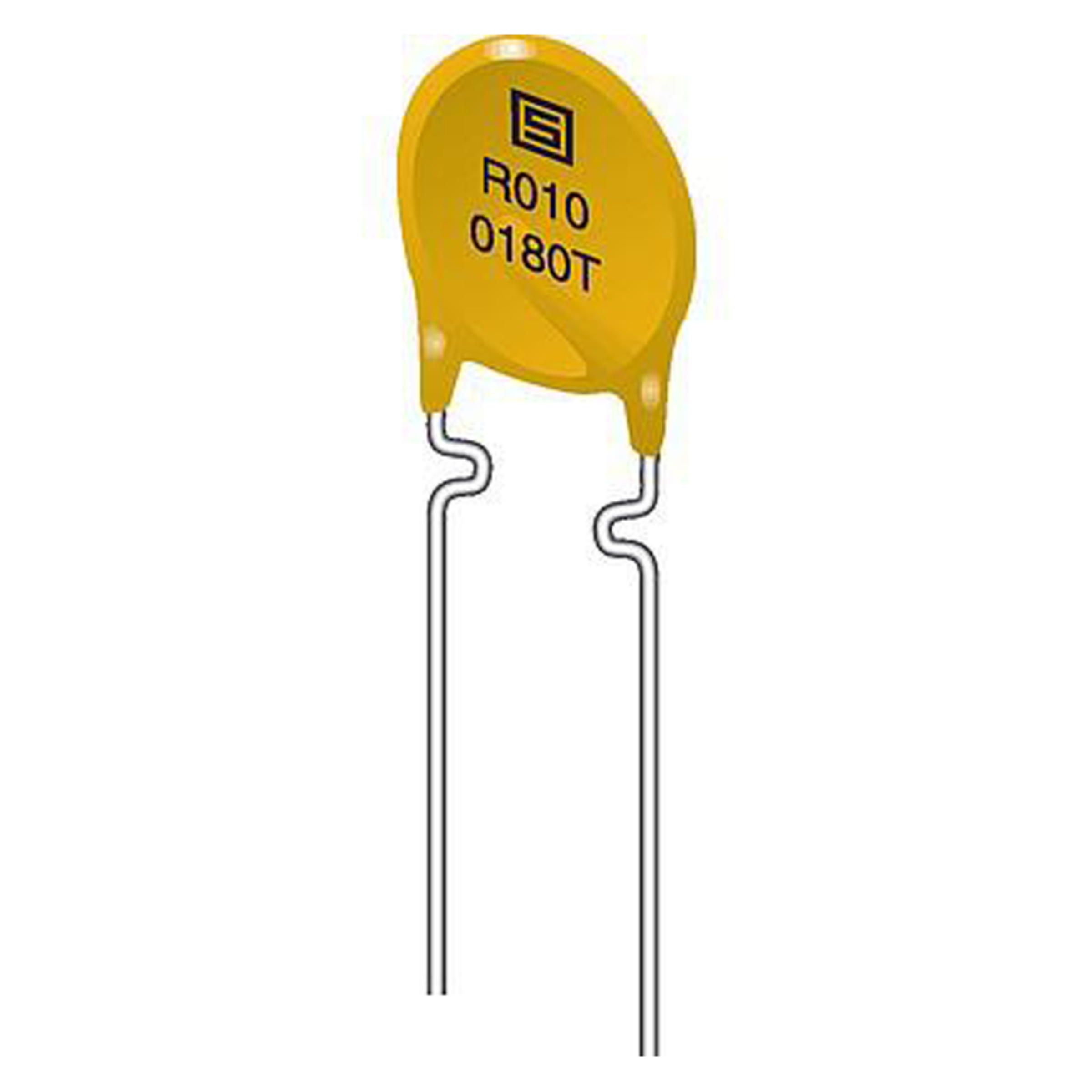

Schurter Poly-Switch Fuse PFRA 60VDC 0,4A radial RM5,8mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
140 Pcs. in stock
Planned delivery time
Ø 8 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 500 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Self-resetting fuse
- Series
- PFRA
- Rated current
- 0.4 A
- Interrupting Current, Max.
- 40 A
- Rated voltage V DC
- 60 V DC
- RoHS-Conform
Specifications
Open all
Dimensions and Weights
- Dimension: Width
- 3.1 mm
- Dimension: Height
- 21.3 mm
- Diameter
- 7.4 mm
- Pitch
- 5.8 mm
Operating conditions
- Operating temperature range, min.
- -40 °C
- Operating temperature range, max.
- 85 °C
Technical Features
- Rated current
- 0.4 A
- Interrupting Current, Max.
- 40 A
- Rated voltage V DC
- 60 V DC
- Max. resistance 1 hour after switching off
- 1,290 mOhm
- Tripping time with specified reference current IS
- 3.8 s
- Power loss, max.
- 0,55 W
- Solderability
- 235 °C / 2 s
Safety/Certifications
- Approvals
- CE
- MOT
- cULus
