KM00.1105.11

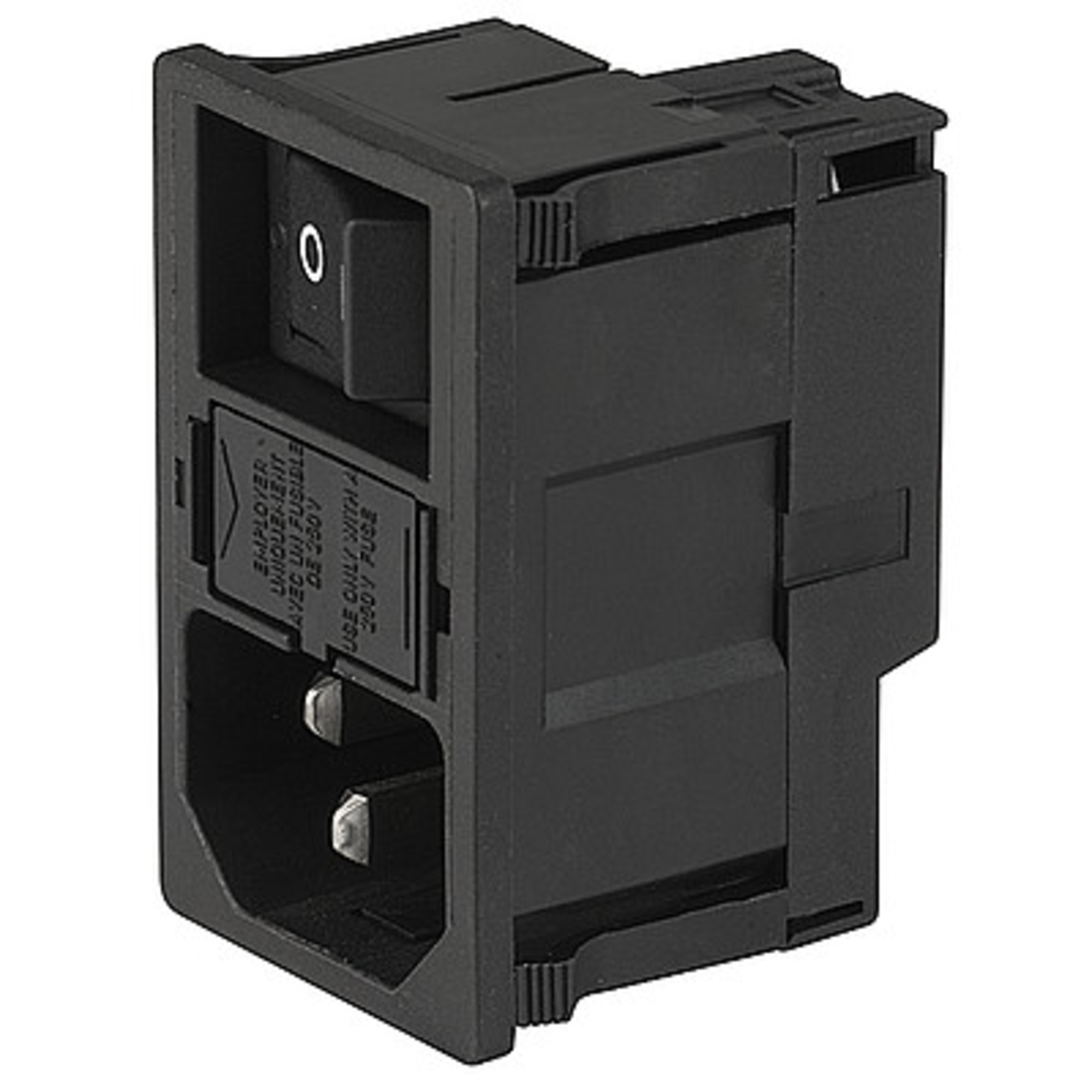

Schurter Built-in cold appliance plug KM Panel C14 3 Pole IP40 Plug in 10A 250VAC 70°C I
TOP
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
188 Pcs. in stock
Next Stock Receipt
Week 11/2025
300 Pcs.
300 Pcs.
Planned delivery time
Ø 6 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 50 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Notice
Fuse drawer is not included and must be ordered separately
- Series
- KM
- Type
- Built-in cold appliance plug
- Pin Temperature
- 70 °C
- Colour
- black
- Number of poles
- 3
- Features

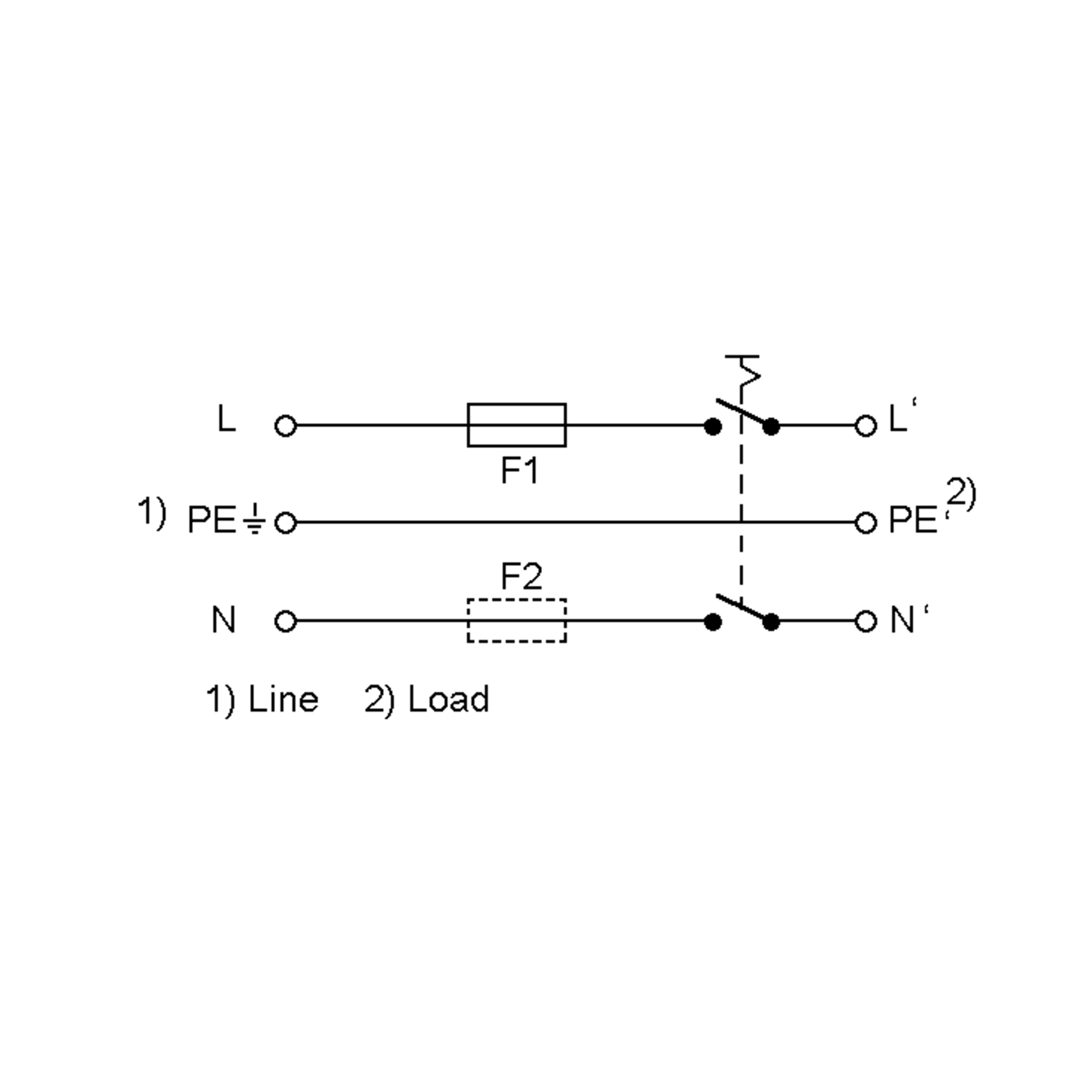

- combination consisting of C14 cold appliance plug with 2-pole rocker switch and 2-pole fuse holder for two device fuses (5x20mm)
- fuse holder insert FT4301-1401 must be ordered separately
- with protective cover- Dimension: Length
- 50 mm
- Package/Case
- Plastic
- Rated current
- 10 A
- Rated voltage AC
- 250 V AC
- Dimension: Width
- 30.5 mm
- Dimension: Height
- 32.85 mm
- Operating Temperature Min.
- -25 °C
- Standards
- CSA C22.2 no. 60320-1
IEC 60127-6
IEC 60320-1
IEC 61058-1
UL 60320-1 - Approvals
- CCC
ENEC 10
cURus - Operating Temperature Max.
- 70 °C
- RoHS-Conform
Specifications
Open all

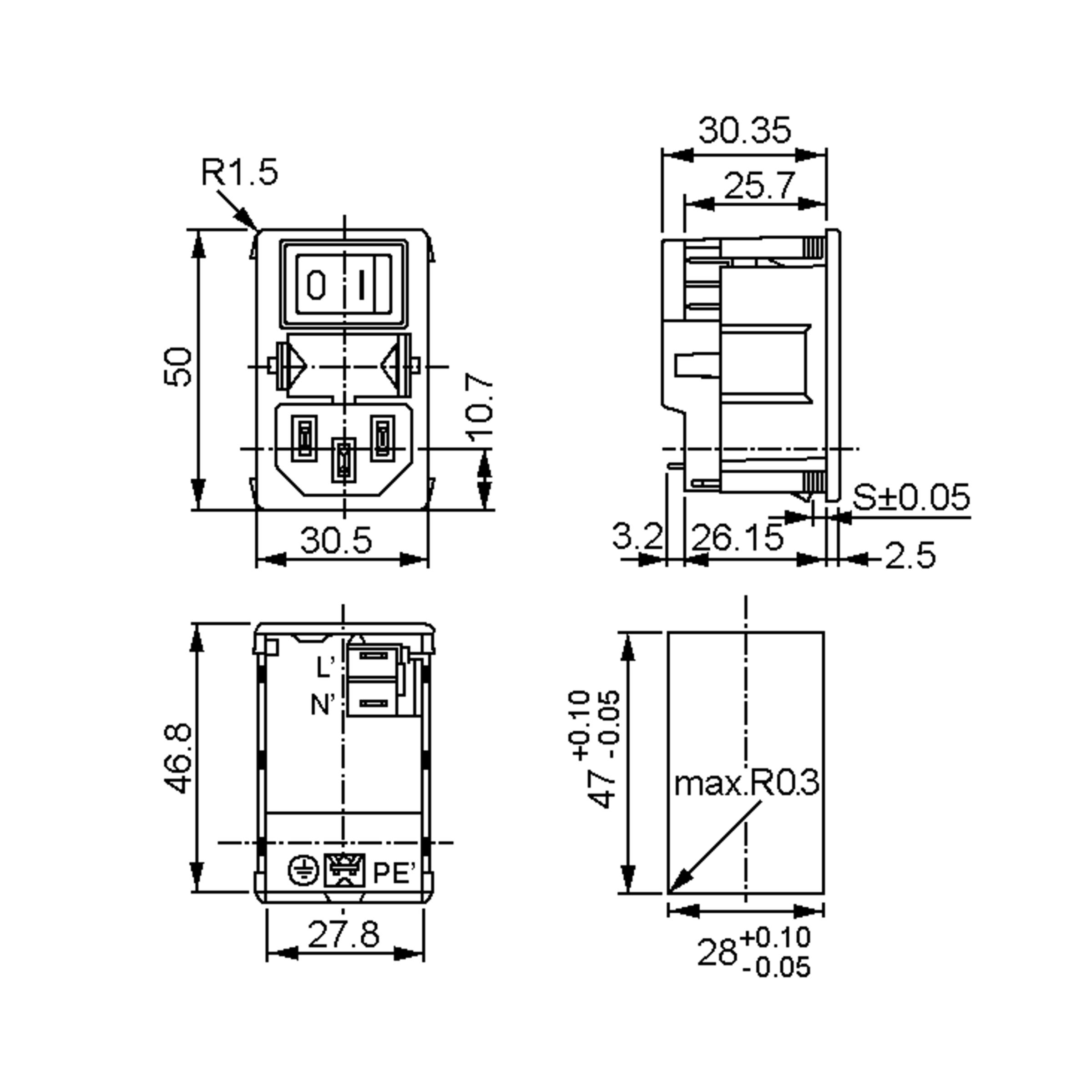

Dimensions and Weights
- Dimension: Length
- 50 mm
- Dimension: Width
- 30.5 mm
- Dimension: Height
- 32.85 mm
- Board Strength min.
- 1 mm
- Board Strength max.
- 2.5 mm
Operating conditions
- Operating Temperature Min.
- -25 °C
- Operating Temperature Max.
- 70 °C
- Pin Temperature
- 70 °C
Technical Features
- Rated current
- 10 A
- Rated voltage AC
- 250 V AC
Mechanical Features
- Faston terminal
- 4.8 mm
- Insertion force per contact, min.
- 70 N
Safety/Certifications
- Approvals
- CCC
- ENEC 10
- cURus
- Standards
- CSA C22.2 no. 60320-1
- IEC 60127-6
- IEC 60320-1
- IEC 61058-1
- UL 60320-1
- Class of Inflammability
- UL 94 V-0
- Protection class
- I
- IP Protection Class Front Side
- IP40
