8601.2005

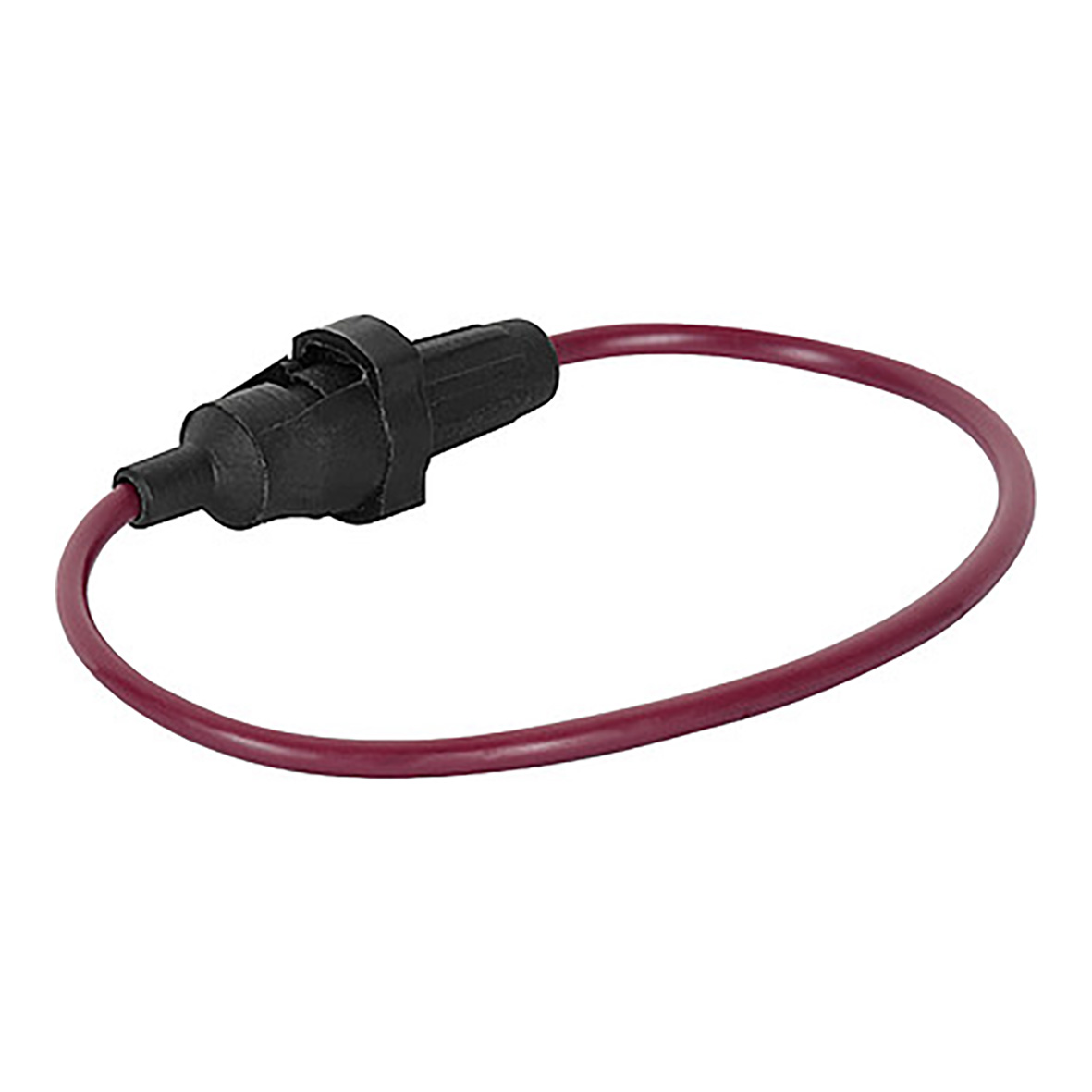

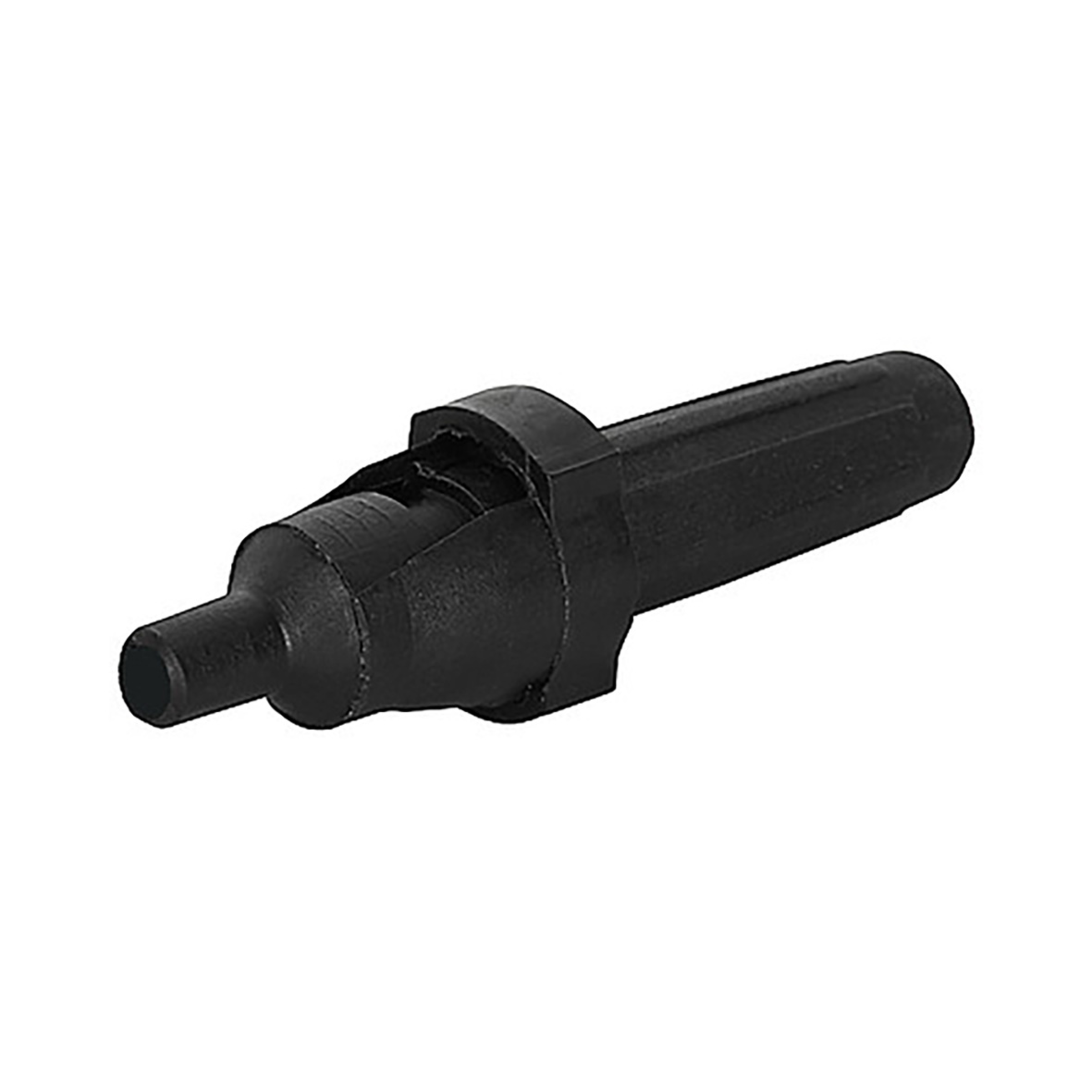

Schurter Fuse holder 6.3x32 32VAC 32VDC for G-fuse inserts 6.3x32mm 6,3A PC1 IP40
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
960 Pcs. in stock
Planned delivery time
Ø 19 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 50 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Notice
- Cross-references:
• Here you will find suitable device fuses and automotive fuses. - Type
- Fuse holder 6.3x32
- Series
- FDI
- Housing
- closed
- Insulation class
- IP40
- Applications
- for G-fuse inserts 6.3x32mm
- Rated voltage V AC
- 32 V AC
- Rated voltage V DC
- 32 V DC
- Rated current
- 6.3 A
- Nominal power consumption
- 2.5 W
- Contact hazard protection Category
- PC1
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating temperature range, min.
- -40 °C
- Operating temperature range, max.
- 85 °C
Technical Features
- Rated current
- 6.3 A
- Rated voltage V AC
- 32 V AC
- Rated voltage V DC
- 32 V DC
- Nominal power consumption
- 2.5 W
- Nominal temperature
- 23 °C
Safety/Certifications
- Approvals
- CE
- UK CA
- Standards
- IEC/UL 62368-1
- Insulation class
- IP40
- Contact hazard protection Category
- PC1
