8060.0398

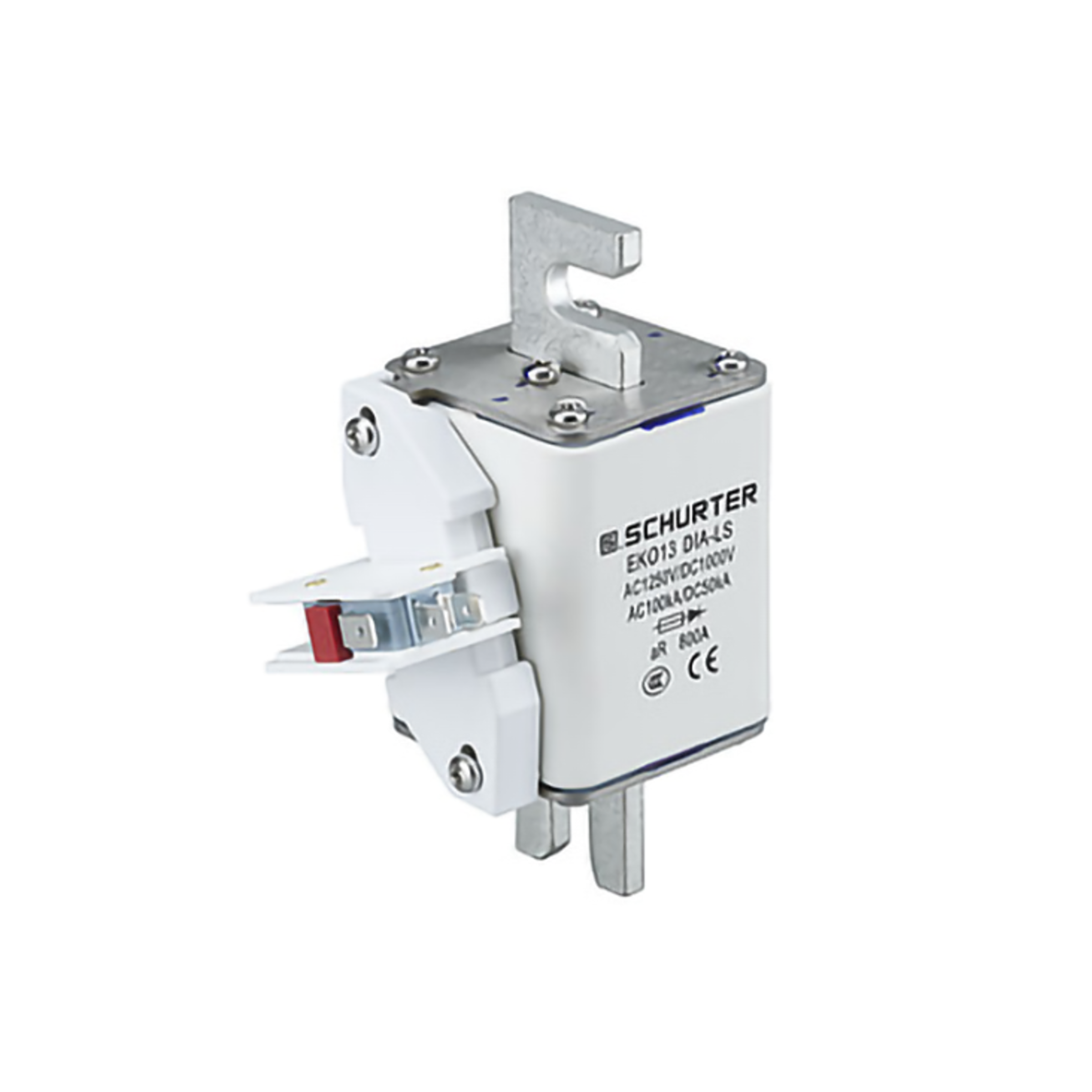

Schurter HV fuse EKO 74x74x82mm 74x74x82mm 1.250VAC 1.000VDC 315A
NEW
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Planned delivery time
Ø 19 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 12 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Notice
- Cross-references:
• Here you will find suitable fuse holders. - Type
- HV fuse
- Series
- EKO
- Specifications
- Block-shaped fuse
- Rated current
- 315 A
- Rated voltage V DC
- 1,000 V DC
- Rated voltage V AC
- 1,250 V AC
- RoHS-Conform
Specifications
Open all

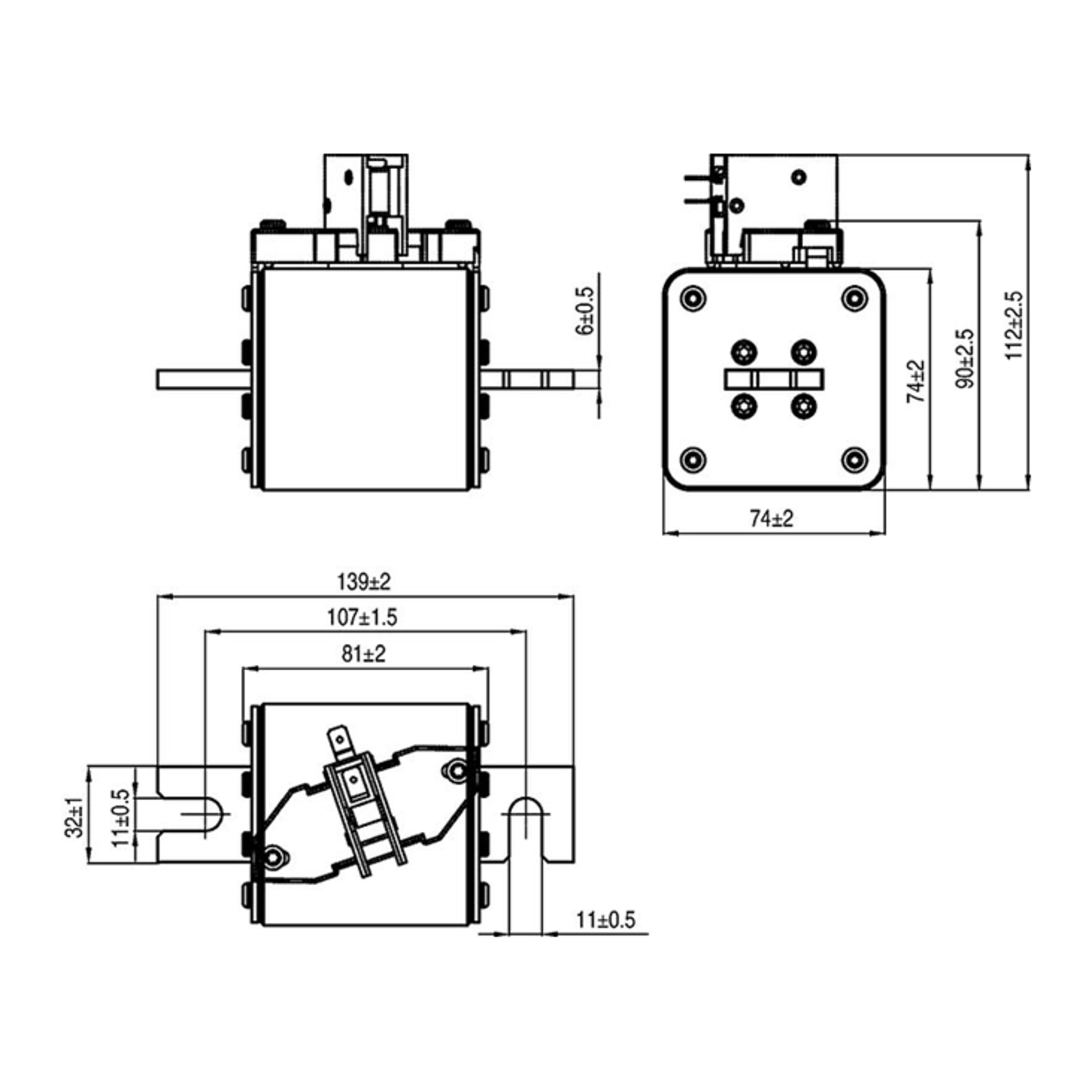

Dimensions and Weights
- Dimension: Length
- 82 mm
- Dimension: Width
- 74 mm
- Dimension: Height
- 74 mm
Operating conditions
- Operating temperature range, min.
- -40 °C
- Operating temperature range, max.
- 125 °C
Technical Features
- Rated current
- 315 A
- Melting integral
- 250,1 kA²/s
- Rated breaking capacity
- 50 kA
- Rated voltage V AC
- 1,250 V AC
- Rated voltage V DC
- 1,000 V DC
- Power loss, max.
- 87 W
Safety/Certifications
- Approvals
- CCC
- CE
- IEC
- UL
- Standards
- IEC 60269-4, UL 248-13, GB/T13539.4, IEC60068-2
