8020.0604

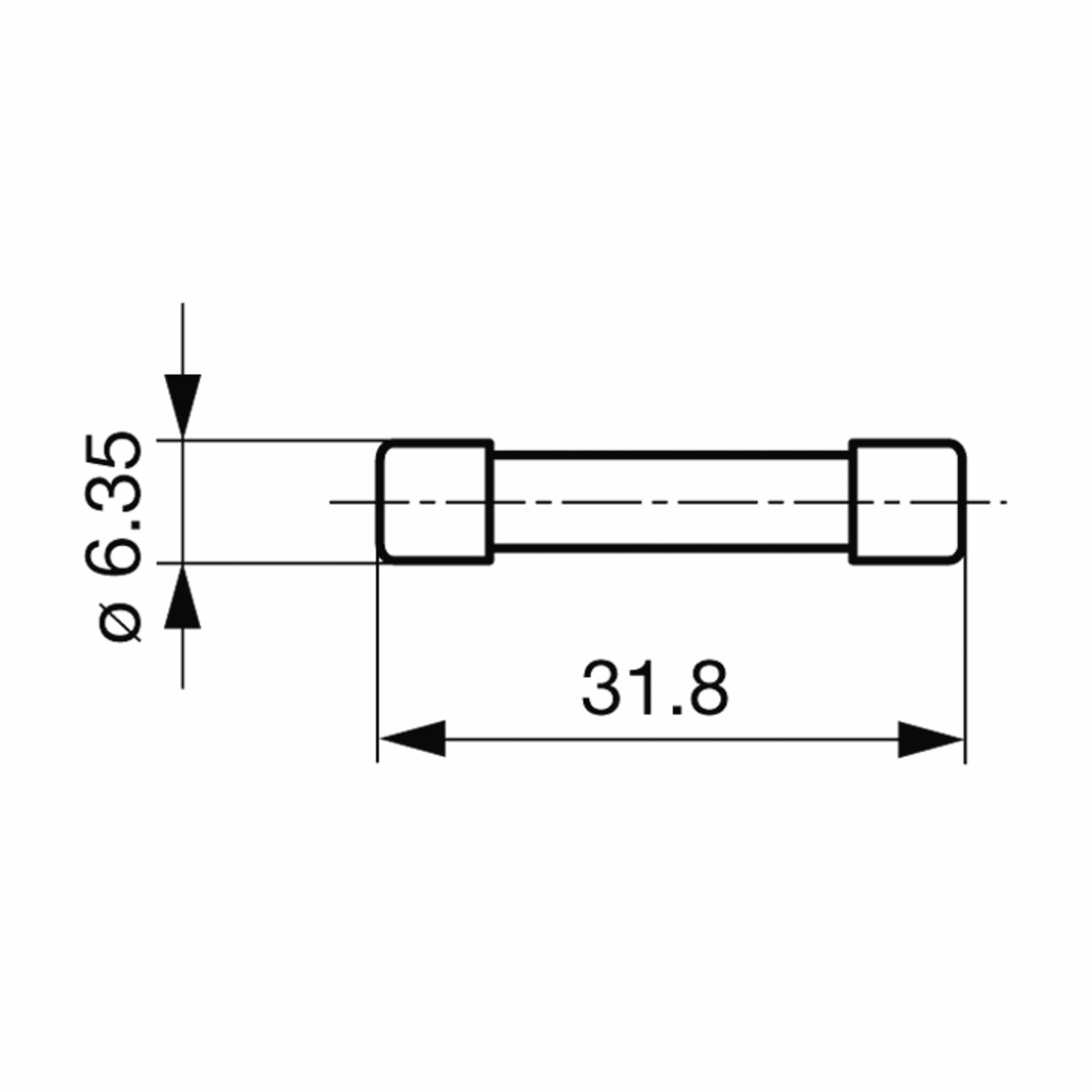

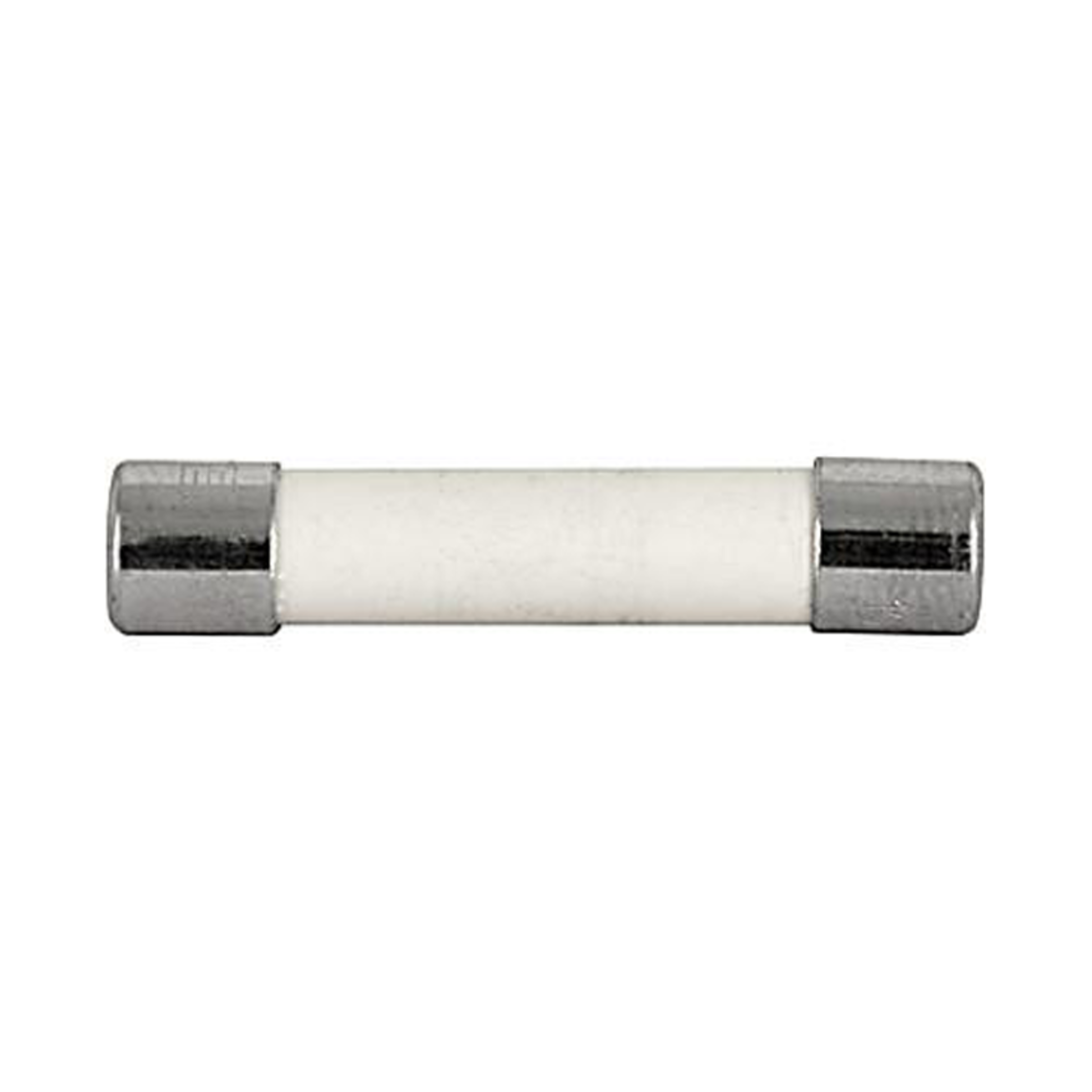

Schurter Device fuse link 6,3x32mm SUT inert 250VAC 15A
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
290 Pcs. in stock
Planned delivery time
Ø 17 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 10 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- SUT
- Characteristic
- inert
- Rated voltage V AC
- 250 V AC
- Rated current
- 15 A
- RoHS-Conform
Specifications
Open all
Dimensions and weights
- Weight
- 2.8 g
Operating conditions
- Operating temperature range, min.
- -40 °C
- Operating temperature range, max.
- 85 °C
- Climate category IEC
- 40/85/21
Technical features
- Rated current
- 15 A
- Melting integral
- 152 A²/s
- Rated voltage V AC
- 250 V AC
- Voltage drop
- 81 mV
Safety/Certifications
- Approvals
- CE
- cULus
- Standards
- UL 248-14
