6600.3100.21

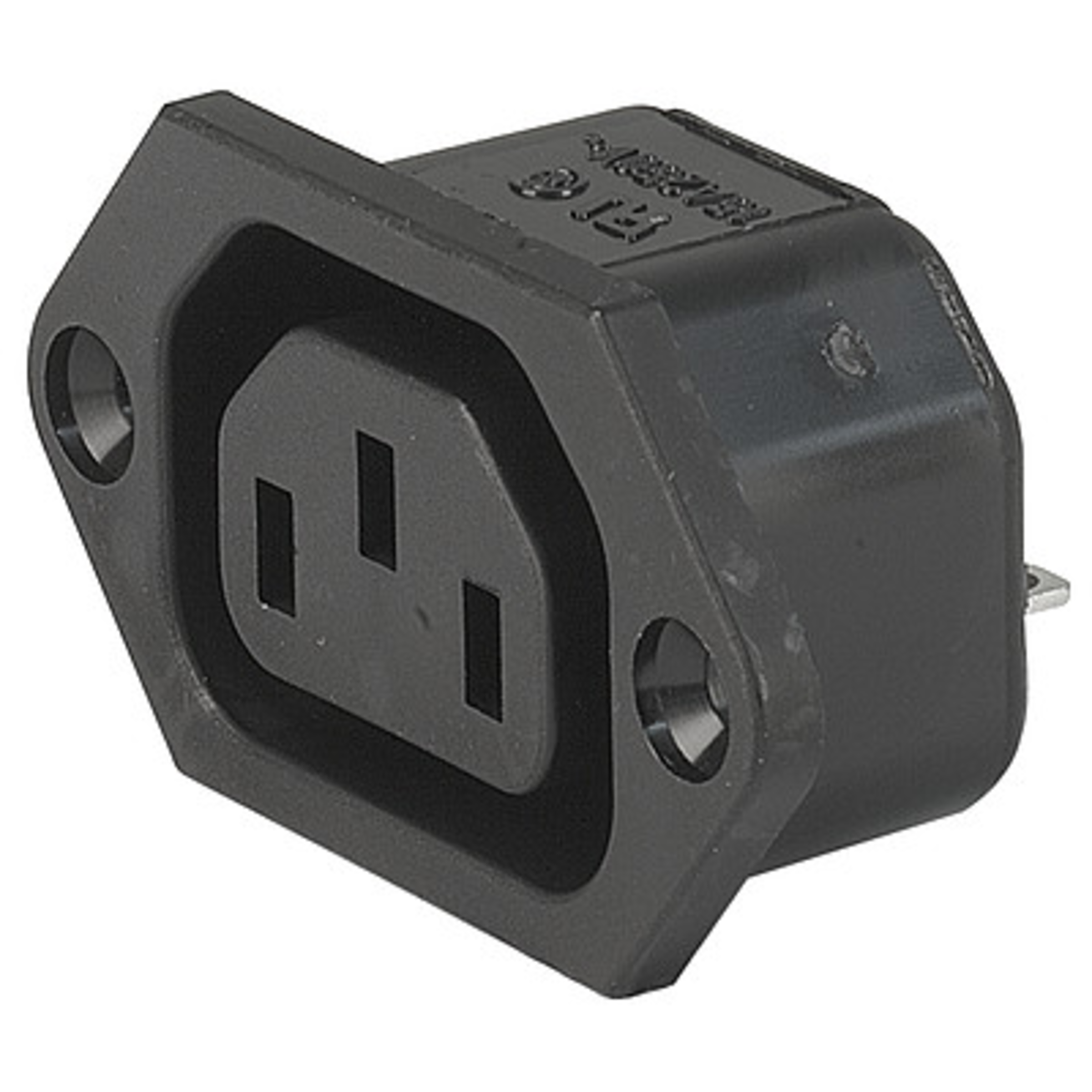

Schurter Built-in cold appliance socket 6600-3 Panel F 3 Pole IP30 Solder Thermoplast (TP) 10A 250VAC 70°C 40mm I
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
100 Pcs. in stock
Planned delivery time
Ø 9 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 50 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Contact Type
- Plug
- Type
- Built-in cold appliance socket
- Connector Contact
- Solder
- Series
- 6600-3
- Colour
- black
- Housing material
- Thermoplast (TP)
- Pin Temperature
- 70 °C
- Design
- Panel
- Number of poles
- 3
- Standards
- CSA C22.2 no. 60320-1
IEC 60320-1
IEC 60320-3
UL 60320-1 - Contact Type
- F
- Fastening
- Screw mounting
- Class of Inflammability
- UL 94 V-0
- Locking
- no
- Alignment
- straight
- IP Protection Class Front Side
- IP30
- Operating Temperature Max.
- 70 °C
- Rated voltage AC
- 250 V AC
- Rated current
- 10 A
- Operating Temperature Min.
- -25 °C
- RoHS-Conform
Specifications
Open all
Dimensions and Weights
- Dimension: Width
- 50 mm
- Dimension: Height
- 28 mm
- Dimension: Depth
- 27.1 mm
- Board Strength max.
- 8 mm
Operating conditions
- Operating Temperature Min.
- -25 °C
- Operating Temperature Max.
- 70 °C
- Pin Temperature
- 70 °C
Technical Features
- Rated current
- 10 A
- Rated voltage AC
- 250 V AC
Mechanical Features
- Tightening torque
- 0.5 nm
- Flange mountinghole distance
- 40 mm
- Housing material
- Thermoplast (TP)
Safety/Certifications
- Approvals
- CCC
- CE
- ENEC 10
- UKCA
- cURus
- Standards
- CSA C22.2 no. 60320-1
- IEC 60320-1
- IEC 60320-3
- UL 60320-1
- Class of Inflammability
- UL 94 V-0
- Protection class
- I
- IP Protection Class Front Side
- IP30
