6183.0002

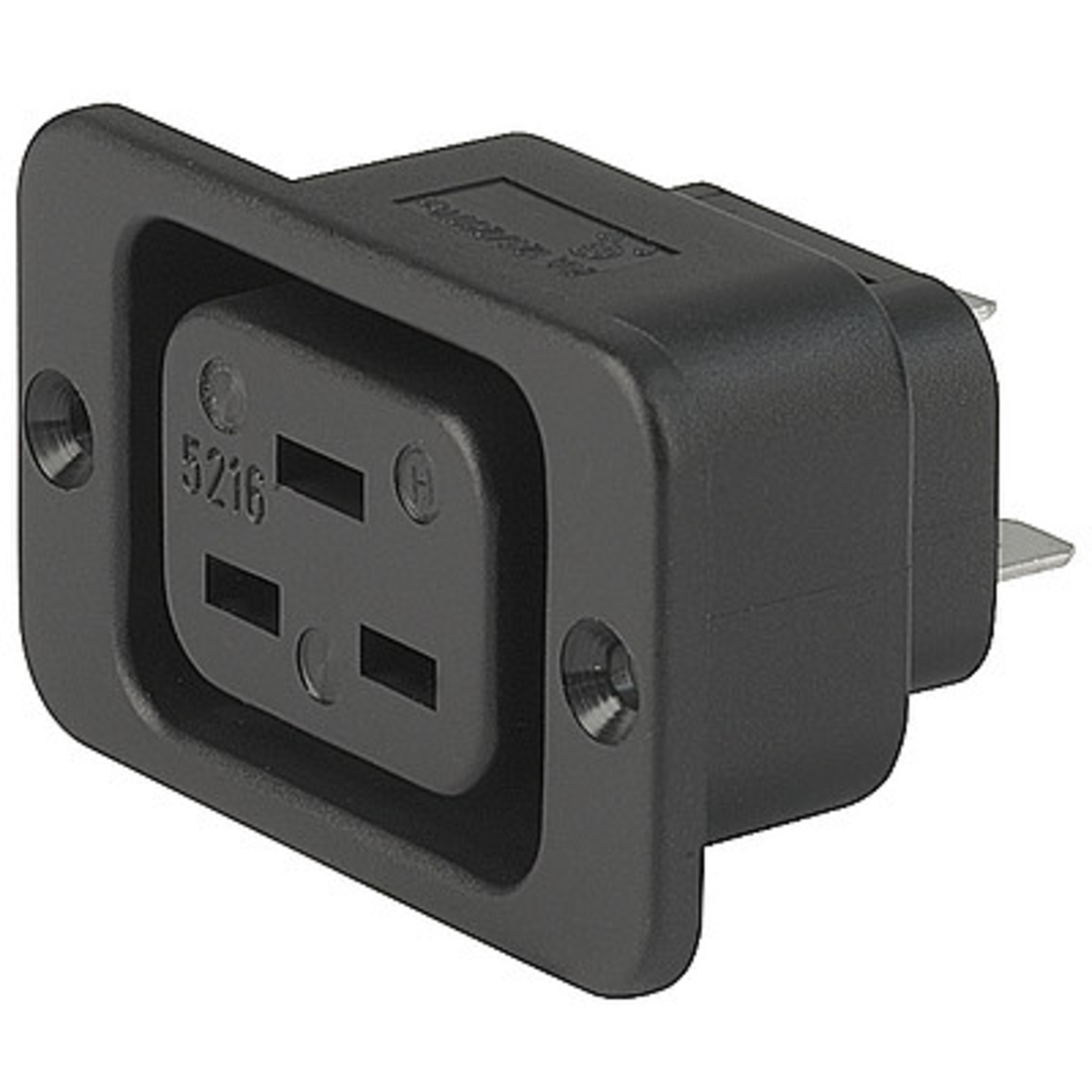

Schurter Panel Plastic 3pol.
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
285 Pcs. in stock
Planned delivery time
Ø 22 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- 5612
- Housing
- rectangular
- Pin Temperature
- 70 °C
- Colour
- black
- Number of poles
- 3
- Dimension: Length
- 54 mm
- Package/Case
- Plastic
- Rated current
- 16 A
- Rated voltage AC
- 250 V AC
- Dimension: Width
- 34 mm
- Dimension: Height
- 40.8 mm
- Operating Temperature Min.
- -25 °C
- Standards
- CSA C22.2 no. 42
IEC 60320-1
IEC 60320-3
UL 498 - Approvals
- VDE
cURus - Operating Temperature Max.
- 70 °C
- RoHS-Conform
Specifications
Open all

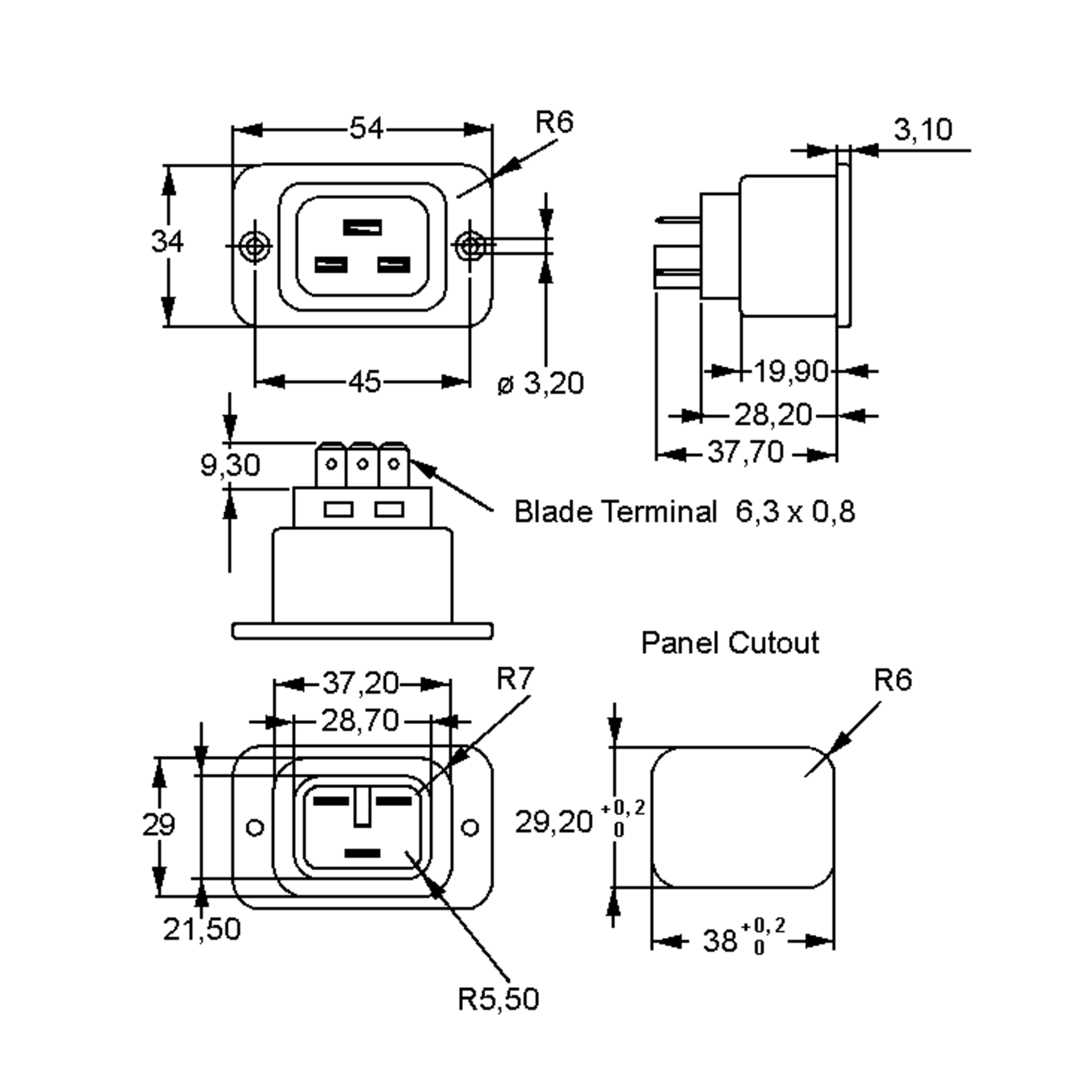

Dimensions and weights
- Dimension: Length
- 54 mm
- Dimension: Width
- 34 mm
- Dimension: Height
- 40.8 mm
Operating conditions
- Operating Temperature Min.
- -25 °C
- Operating Temperature Max.
- 70 °C
- Pin Temperature
- 70 °C
Technical features
- Rated current
- 16 A
- Rated voltage AC
- 250 V AC
Mechanical features
- Faston terminal
- 6.3 mm
- Insertion force per contact, min.
- 70 N
- Flange mountinghole distance
- 45 mm
Safety/Certifications
- Approvals
- VDE
- cURus
- Standards
- CSA C22.2 no. 42
- IEC 60320-1
- IEC 60320-3
- UL 498
- Class of Inflammability
- UL 94 V-0
- Protection class
- I
- IP Schutzklasse Frontseitig
- IP40
