6163.0004

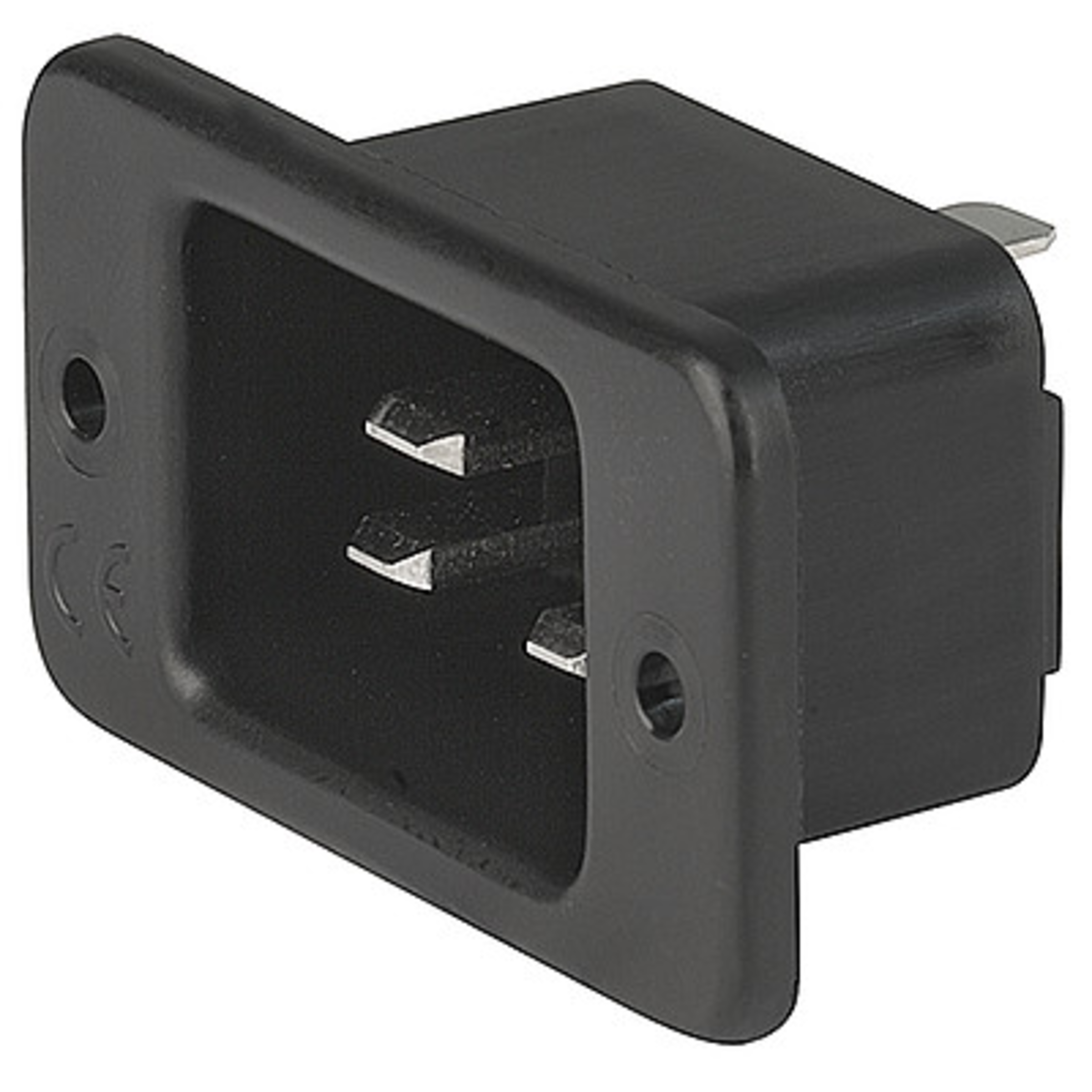

Schurter Built-in cold appliance plug 1621 Panel C20 3 Pole IP20 Plug in Polyamide (PA) 16A 250VAC 70°C 42mm I
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
5 Pcs. in stock
Planned delivery time
Ø 6 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Contact Type
- Plug
- Type
- Built-in cold appliance plug
- Connector Contact
- Plug in
- Series
- 1621
- Colour
- black
- Housing material
- Polyamide (PA)
- Pin Temperature
- 70 °C
- Housing
- rectangular
- Design
- Panel
- Number of poles
- 3
- Standards
- CSA C22.2 no. 60320-1
IEC 60320-1
UL 60320-1 - Contact Type
- C20
- Fastening
- Screw mounting
- Class of Inflammability
- UL 94 V-0
- Locking
- no
- Alignment
- straight
- IP Protection Class Front Side
- IP20
- Operating Temperature Max.
- 70 °C
- Rated voltage AC
- 250 V AC
- Rated current
- 16 A
- Operating Temperature Min.
- -25 °C
- RoHS-Conform
Specifications
Open all

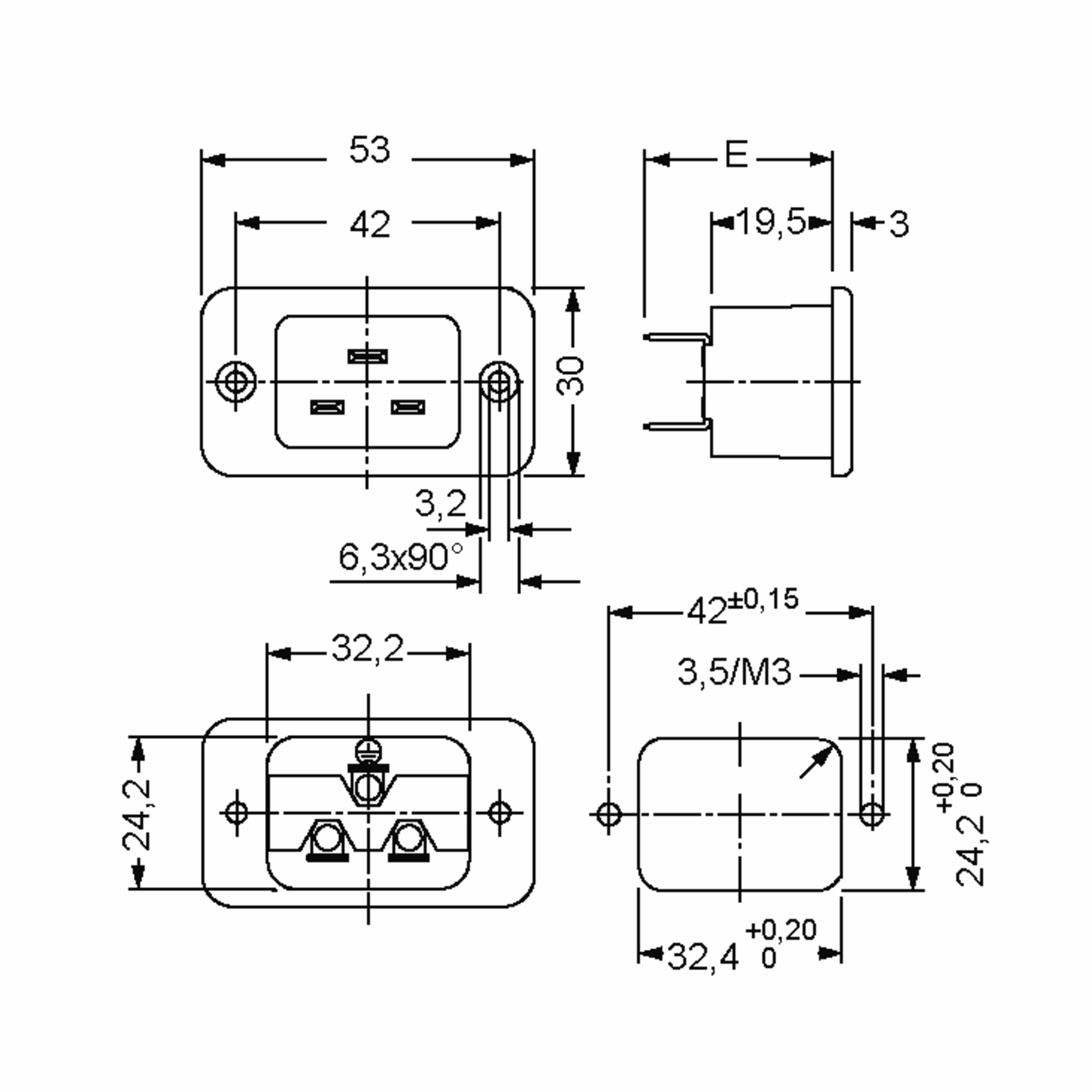

Dimensions and Weights
- Dimension: Width
- 53 mm
- Dimension: Height
- 30 mm
- Dimension: Depth
- 33 mm
Operating conditions
- Operating Temperature Min.
- -25 °C
- Operating Temperature Max.
- 70 °C
- Pin Temperature
- 70 °C
Technical Features
- Rated current
- 16 A
- Rated voltage AC
- 250 V AC
Mechanical Features
- Faston terminal
- 6.3 mm
- Insertion force per contact, min.
- 70 N
- Flange mountinghole distance
- 42 mm
- Housing material
- Polyamide (PA)
Safety/Certifications
- Approvals
- ENEC 10
- cURus
- Standards
- CSA C22.2 no. 60320-1
- IEC 60320-1
- UL 60320-1
- Class of Inflammability
- UL 94 V-0
- Protection class
- I
- IP Protection Class Front Side
- IP20
