5707.0101.312

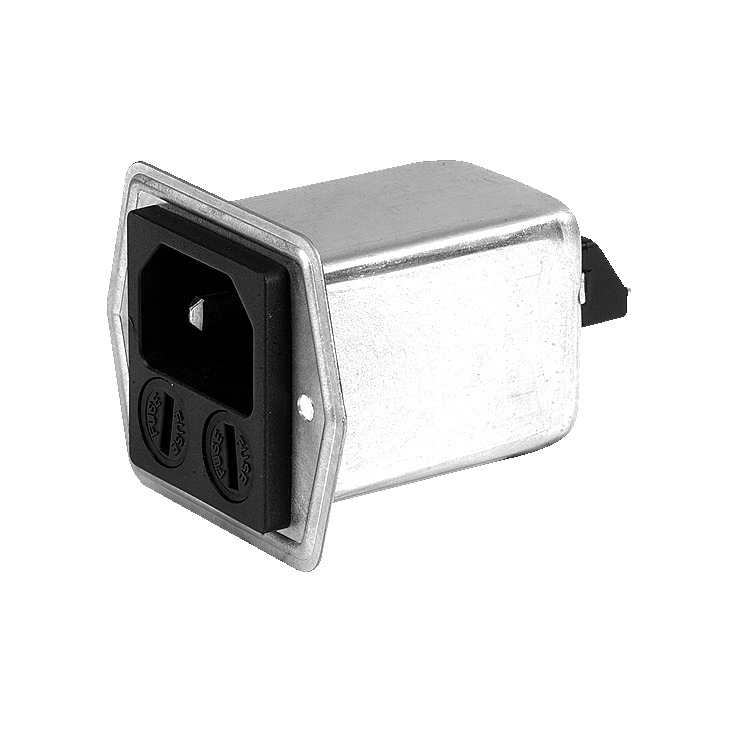

Schurter IEC filter 5707 Panel mounting 250V 1A IP65

Manufacturer Part No.
5707.0101.312
Schukat Part No.
FIL5707-0101-312
Manufacturer
Schurter
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

0 Pcs. in stock

Back Order
10 Pcs.
Planned delivery time
Ø 43 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available on order
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 10 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Series
5707
Type
IEC filter
Rated voltage at 50/60Hz
250 V
Rated current
1 A
Approvals
CE
CQC
ENEC10
IEC
UK CA
cCSA
cRUus
Protection class front side
IP65
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Schurter
Series
  • 5707
Product group
  • D3244 Schurter Power Entry Module w. Linefilter and Fuse
Type
  • IEC filter
Assembly Type
  • Panel mounting
Features

  • - Filter built in a metal housing with integrated power line connector and 2-pole fuse holder
    - Fuse holder for 5x20mm fuse
    - Faston plug terminal 6,3x0,8mm


Dimensions and weights

Dimension: Length
  • 59.6 mm
Dimension: Width
  • 51 mm
Dimension: Height
  • 42 mm

Operating conditions

Operating Temperature Min.
  • -25 °C
Operating Temperature Max.
  • 85 °C

Technical features

Rated voltage at 50/60Hz
  • 250 V
Dielectric strength, 2s, conductor/earth
  • 2,7 kV DC
Dielectric strength, 2s, conductor/conductor
  • 1,7 kV DC
Rated current
  • 1 A
Leakage current, max.
  • 0,5 mA

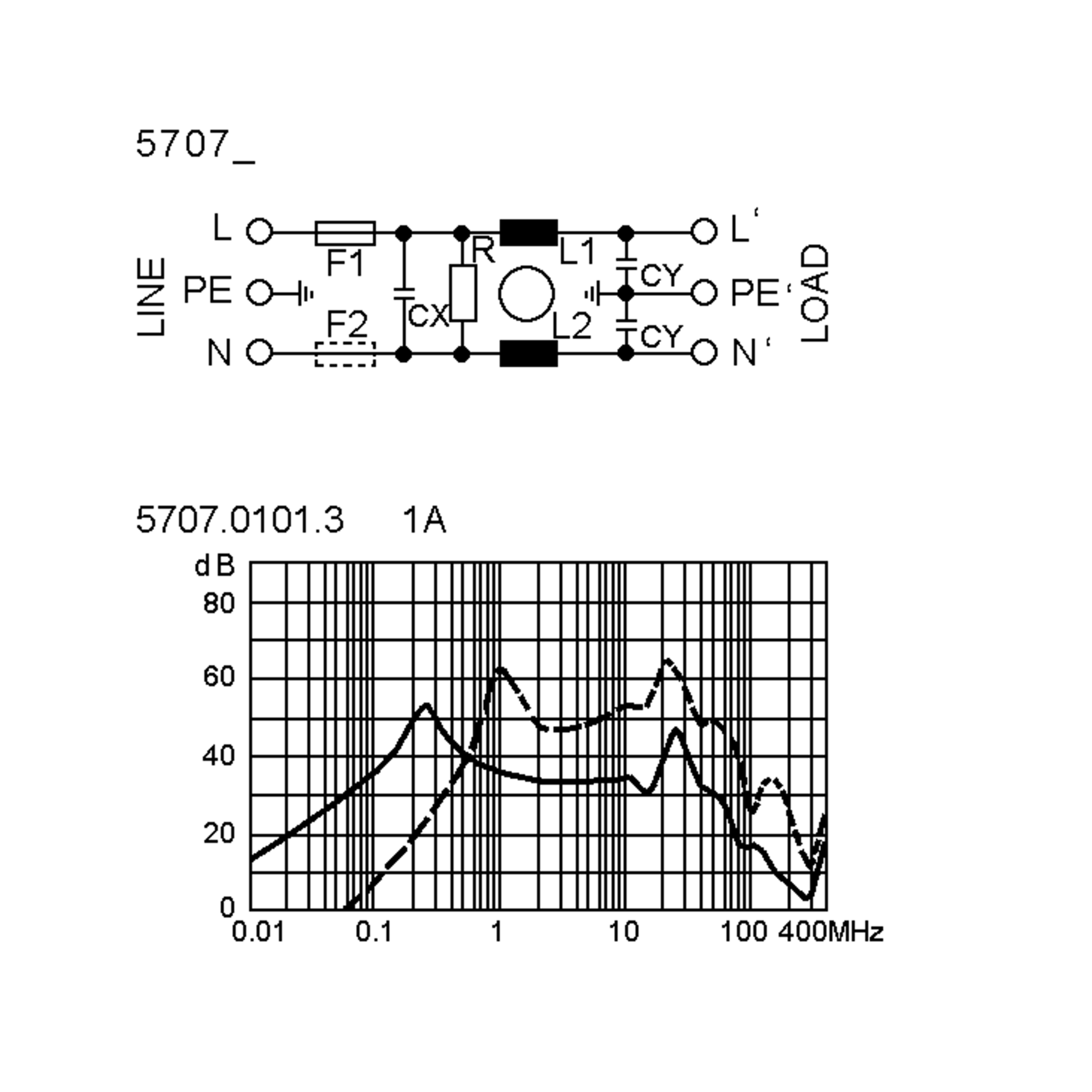

Inductance
  • 12 mH
Cx
  • 100 nF
Cy
  • 2,2 nF
Climate category
  • HPF (25/085/21)

Safety/Certifications

Approvals
  • CE
  • CQC
  • ENEC10
  • IEC
  • UK CA
  • cCSA
  • cRUus
Protection class front side
  • IP65
Standards
  • IEC 60320-1; IEC 60939; IEC 60127-6; IEC 61058-1; UL 498; UL 60939-3; CSA C22.2 no. 42; CSA C22.2 no. 8; UL 62368-1; IEC 62368-1; IEC 60335-1
