5500.2104

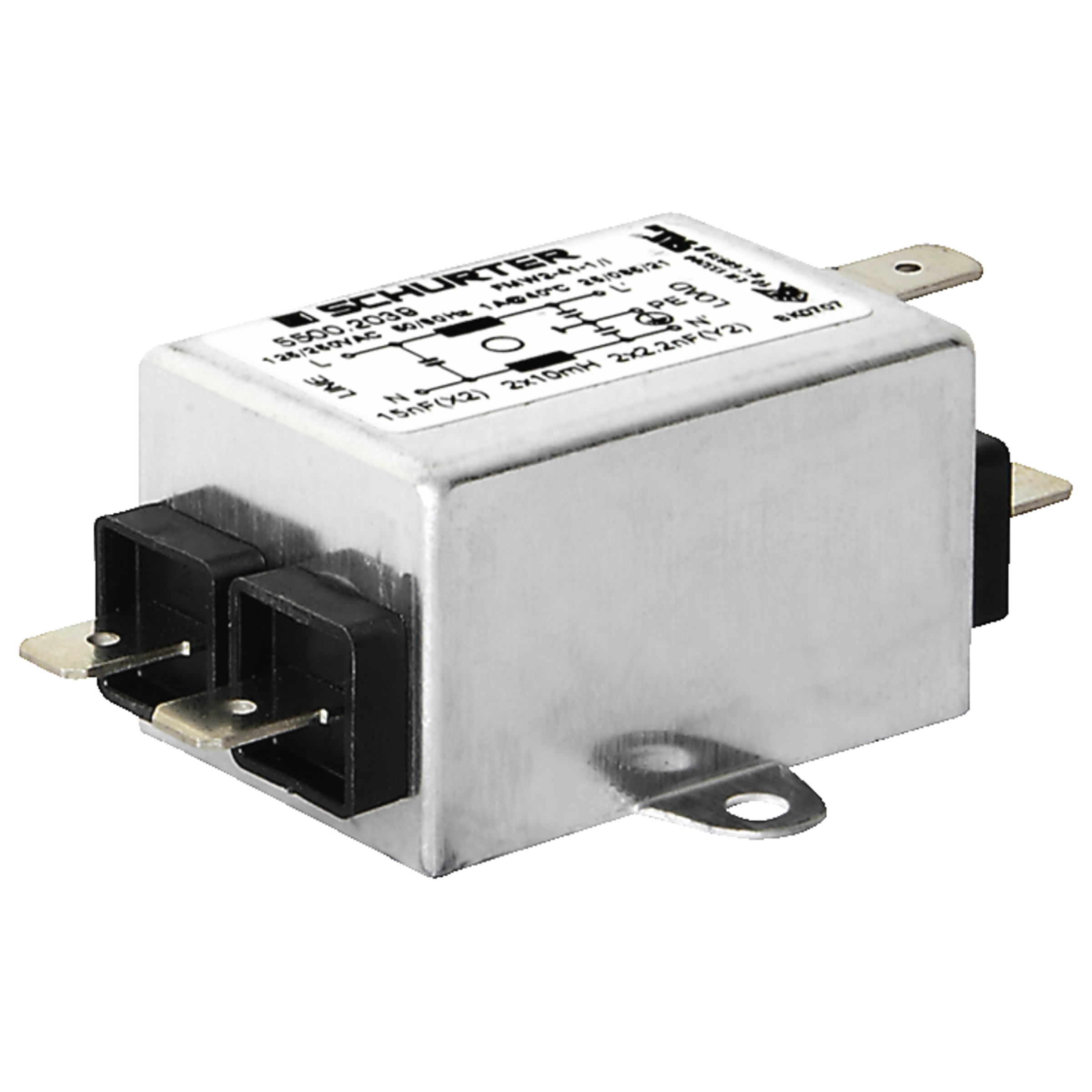

Schurter Single-phase filter FMW-41 250V 3A Medical
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
25 Pcs.
25 Pcs.
Planned delivery time
Ø 20 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 25 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 25 or multiple of 25)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- FMW-41
- Type
- Single-phase filter
- Rated voltage at 50/60Hz
- 250 V
- Rated current
- 3 A
- Approvals
- CE
ENEC10
IEC
UK CA
cCSA
cRUus - RoHS-Conform
Specifications
Open all

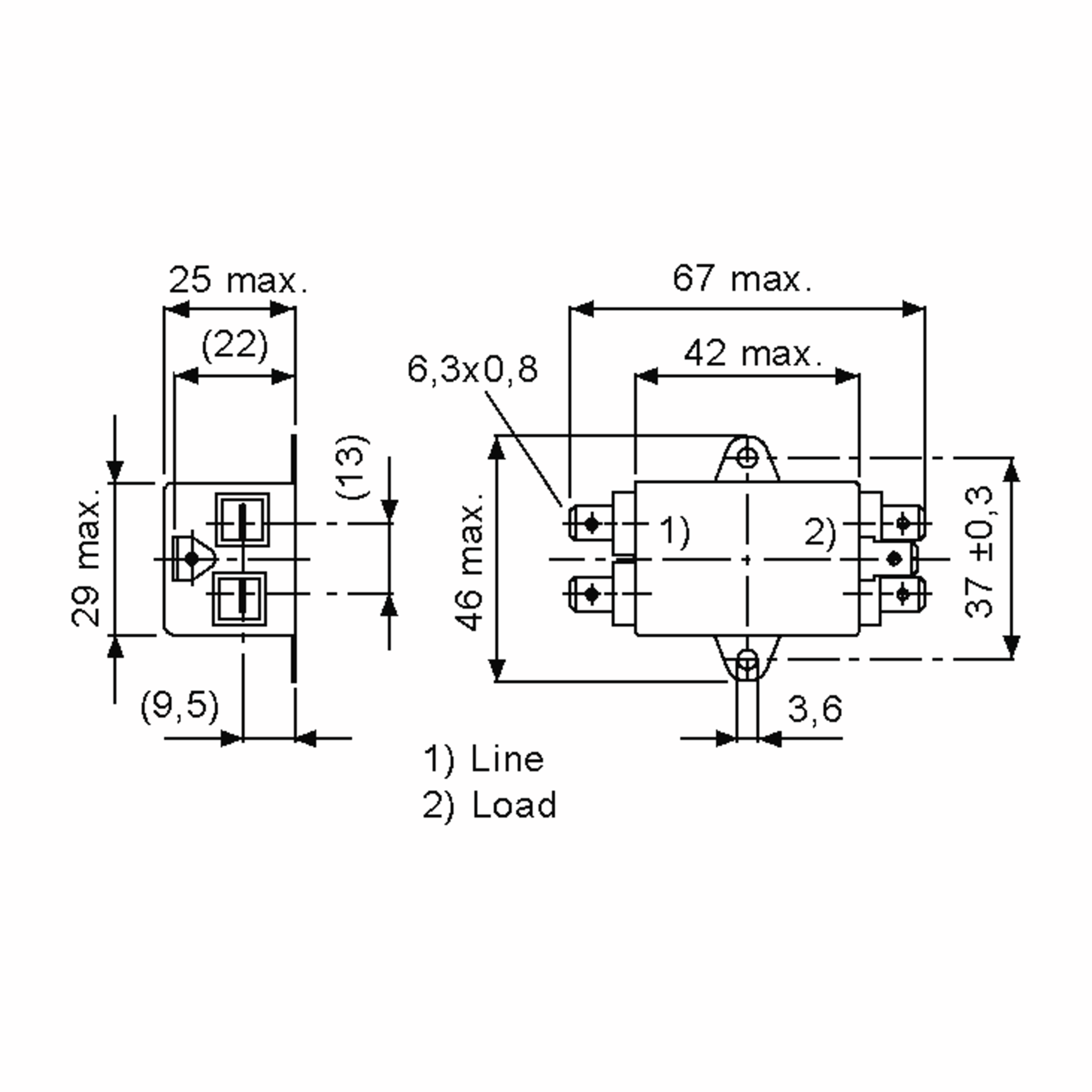

Dimensions and weights
- Dimension: Length
- 67 mm
- Dimension: Width
- 46 mm
- Dimension: Height
- 25 mm
Operating conditions
- Operating Temperature Min.
- -25 °C
- Operating Temperature Max.
- 100 °C
Technical features
- Rated voltage at 50/60Hz
- 250 V
- Dielectric strength, 2s, conductor/earth
- 2,7 kV DC
- Dielectric strength, 2s, conductor/conductor
- 1,7 kV DC
- Rated current
- 3 A
- Leakage current, max.
- 5 µA
- Inductance
- 2 mH
- Cx
- 15 nF
- Climate category
- 25/100/21
Safety/Certifications
- Approvals
- CE
- ENEC10
- IEC
- UK CA
- cCSA
- cRUus
- Standards
- IEC 60939; UL 1283; CSA C22.2 no. 8; UL 62368-1; IEC 62368-1; IEC 60601-1
