5500.2043

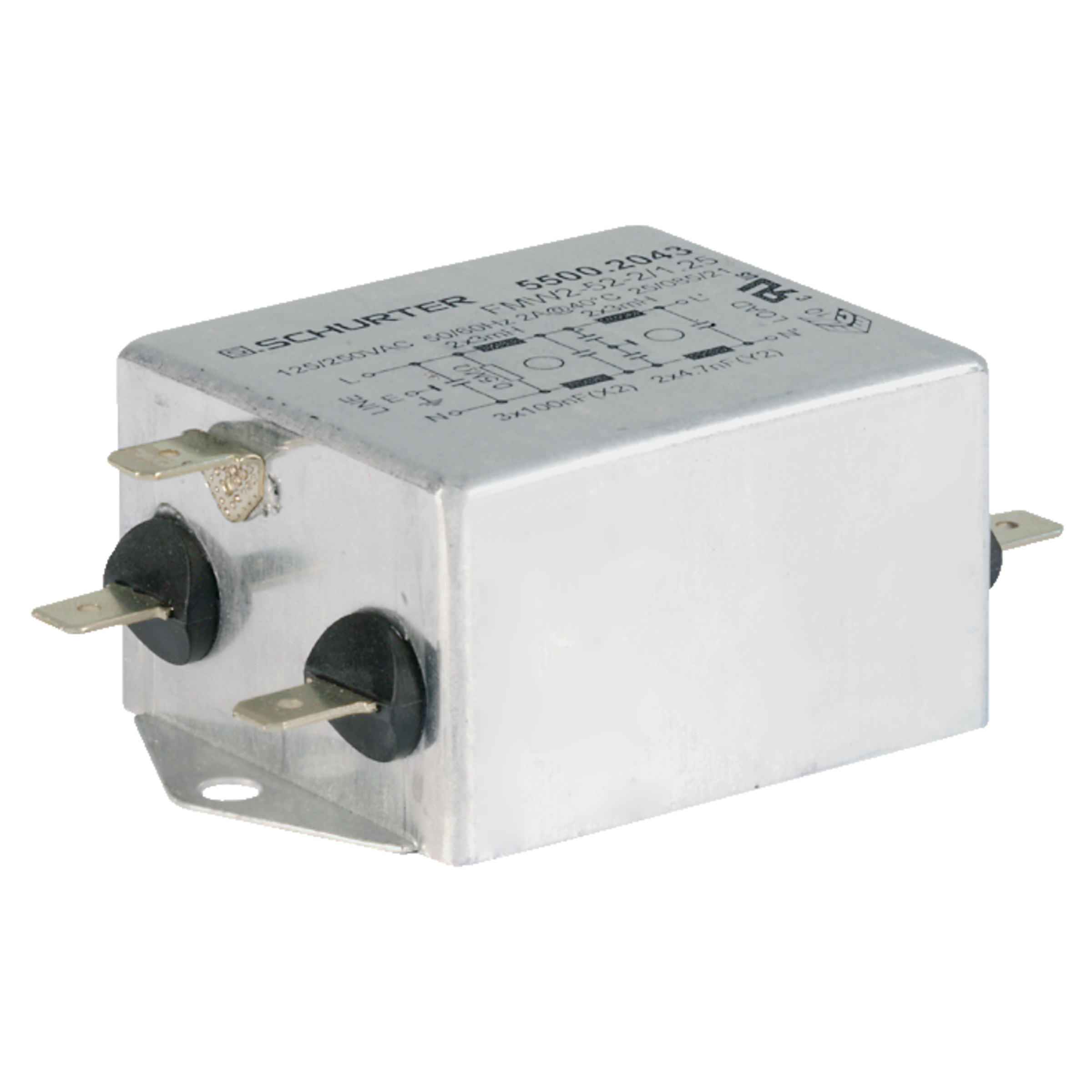

Schurter Two-phase filter FMW-52 Chassis assembly 250V 2A
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
36 Pcs. in stock
Planned delivery time
Ø 17 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 10 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- FMW-52
- Type
- Two-phase filter
- Rated voltage at 50/60Hz
- 250 V
- Rated current
- 2 A
- Approvals
- CE
ENEC10
IEC
UK CA
cCSA
cRUus - RoHS-Conform
Specifications
Open all

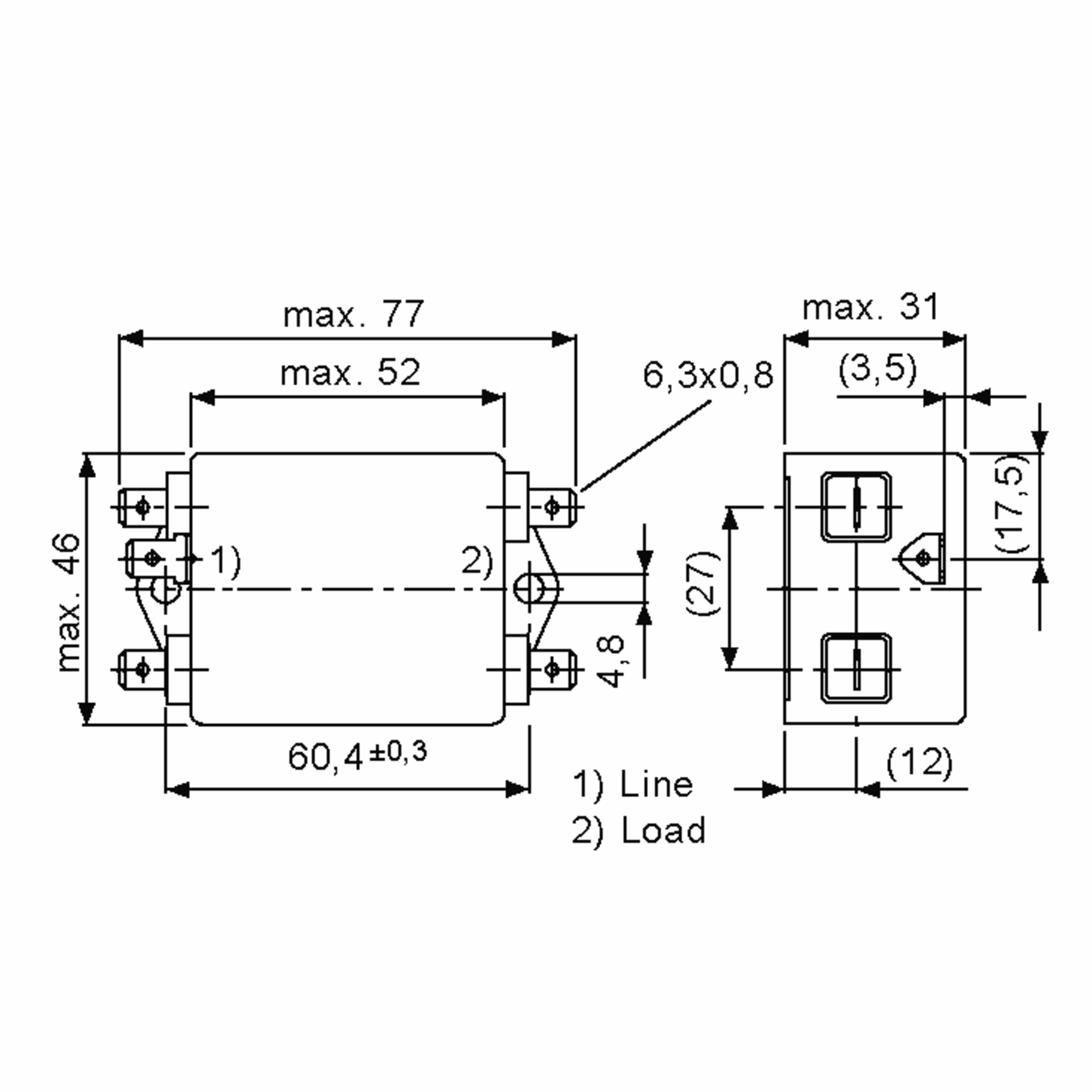

Dimensions and weights
- Dimension: Length
- 77 mm
- Dimension: Width
- 46 mm
- Dimension: Height
- 31 mm
Operating conditions
- Operating Temperature Min.
- -25 °C
- Operating Temperature Max.
- 100 °C
Technical features
- Rated voltage at 50/60Hz
- 250 V
- Dielectric strength, 2s, conductor/earth
- 2,7 kV DC
- Dielectric strength, 2s, conductor/conductor
- 1,7 kV DC
- Rated current
- 2 A
- Leakage current, max.
- 0,5 mA
- Inductance
- 3 mH
- Cx
- 100 nF
- Cy
- 2,2 nF
- Climate category
- 25/100/21
Safety/Certifications
- Approvals
- CE
- ENEC10
- IEC
- UK CA
- cCSA
- cRUus
- Standards
- IEC 60939; UL 1283; CSA C22.2 no. 8; UL 62368-1; IEC 62368-1
