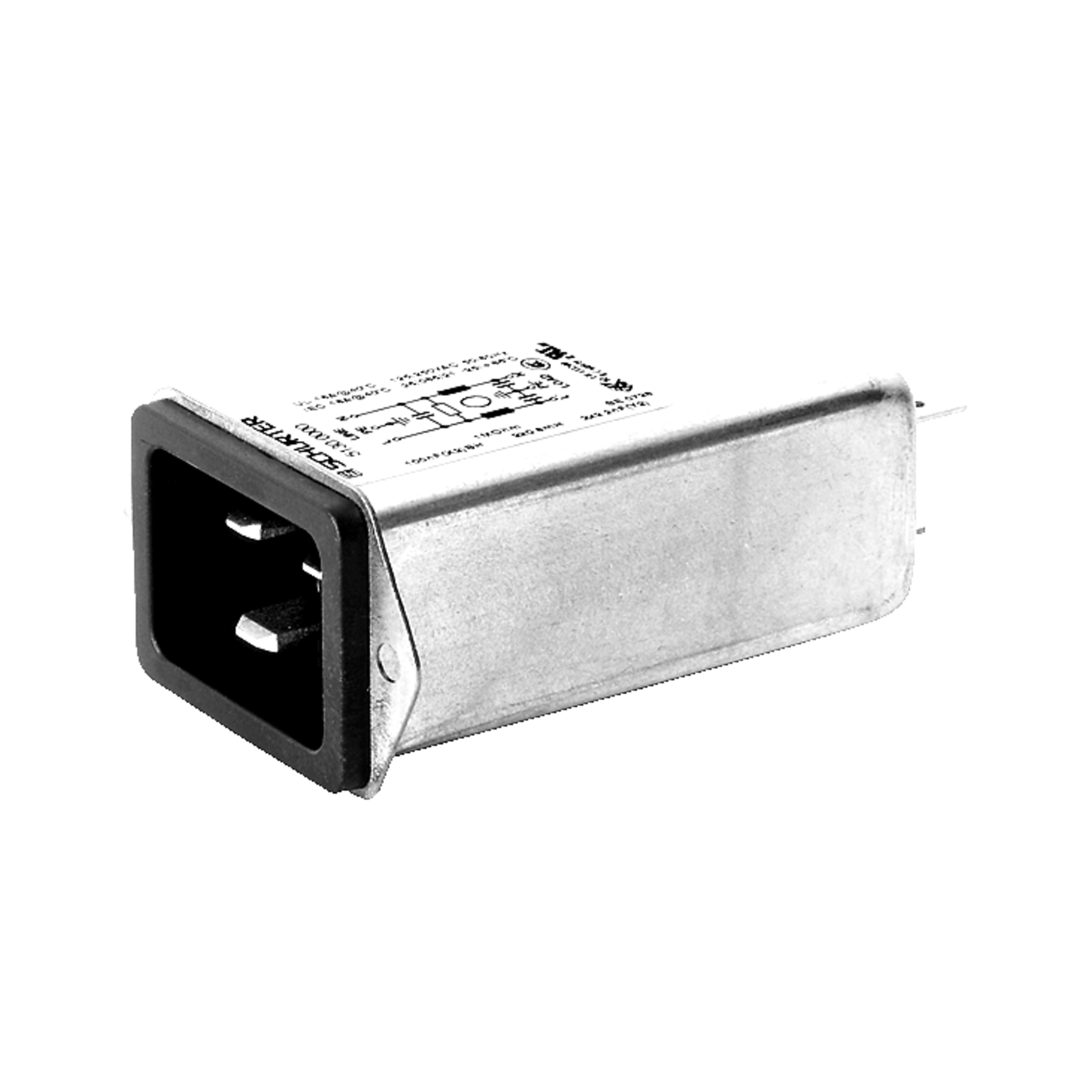

Schurter IEC filter 5130 Panel mounting 250V 16A IP40

Manufacturer Part No.
5130.0000
Schukat Part No.
FIL5130-0000
Manufacturer
Schurter
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

17 Pcs. in stock

Next Stock Receipt
Week 48/2024
20 Pcs.
Planned delivery time
Ø 43 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 20 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Series
5130
Type
IEC filter
Rated voltage at 50/60Hz
250 V
Rated current
16 A
Approvals
CE
ENEC10
IEC
UK CA
UL
cCSA
cRUus
Protection class front side
IP40
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Schurter
Series
  • 5130
Product group
  • D3223 Schurter Power Entry Module with Linefilter
Type
  • IEC filter
Assembly Type
  • Panel mounting
Features

  • - Filter built in a metal housing with integrated power line connector
    - Faston plug terminal 6,8x0,8mm
    - V-Lock pull-out protection

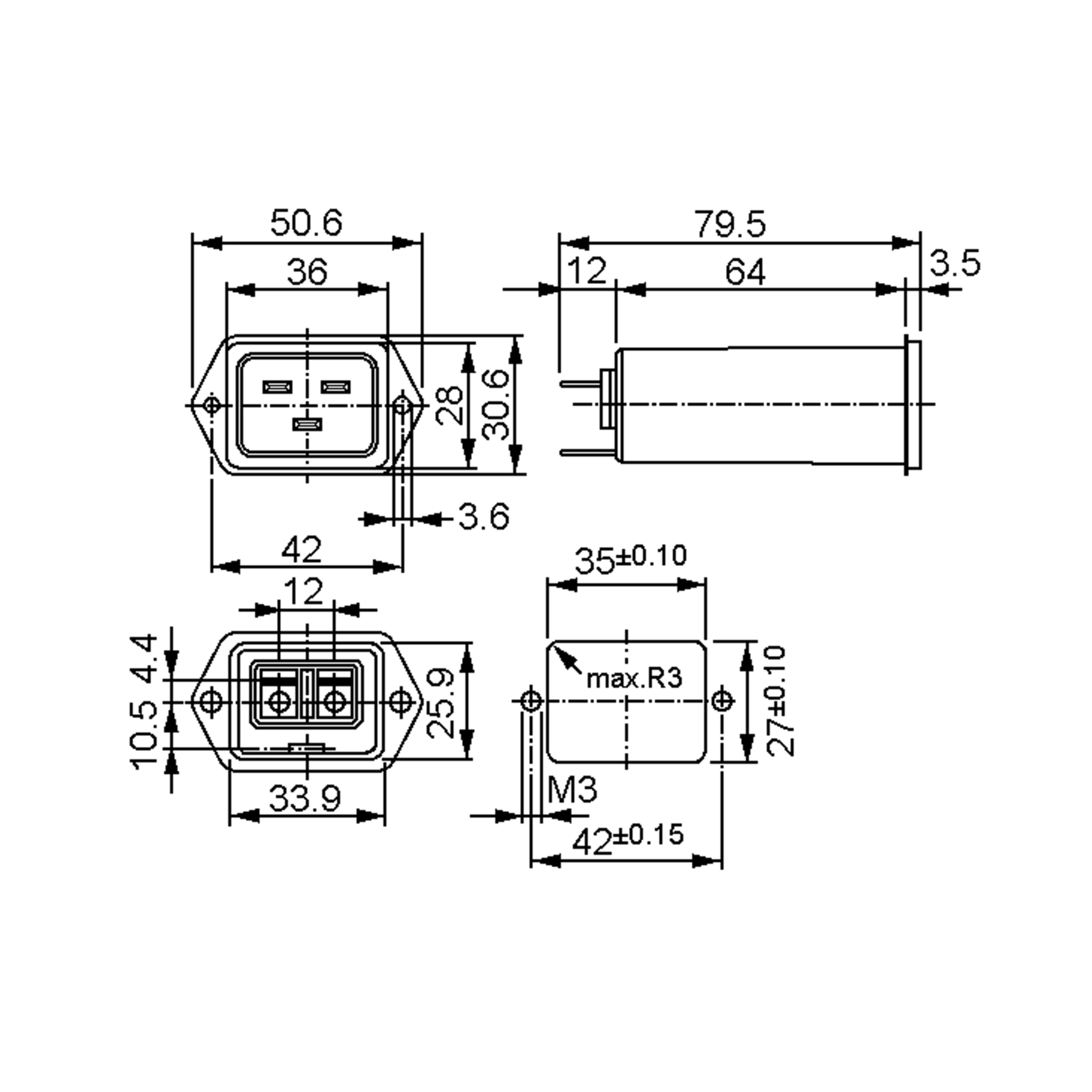

Dimensions and weights

Dimension: Length
  • 79.5 mm
Dimension: Width
  • 50.6 mm
Dimension: Height
  • 30.6 mm

Operating conditions

Operating Temperature Min.
  • -25 °C
Operating Temperature Max.
  • 85 °C

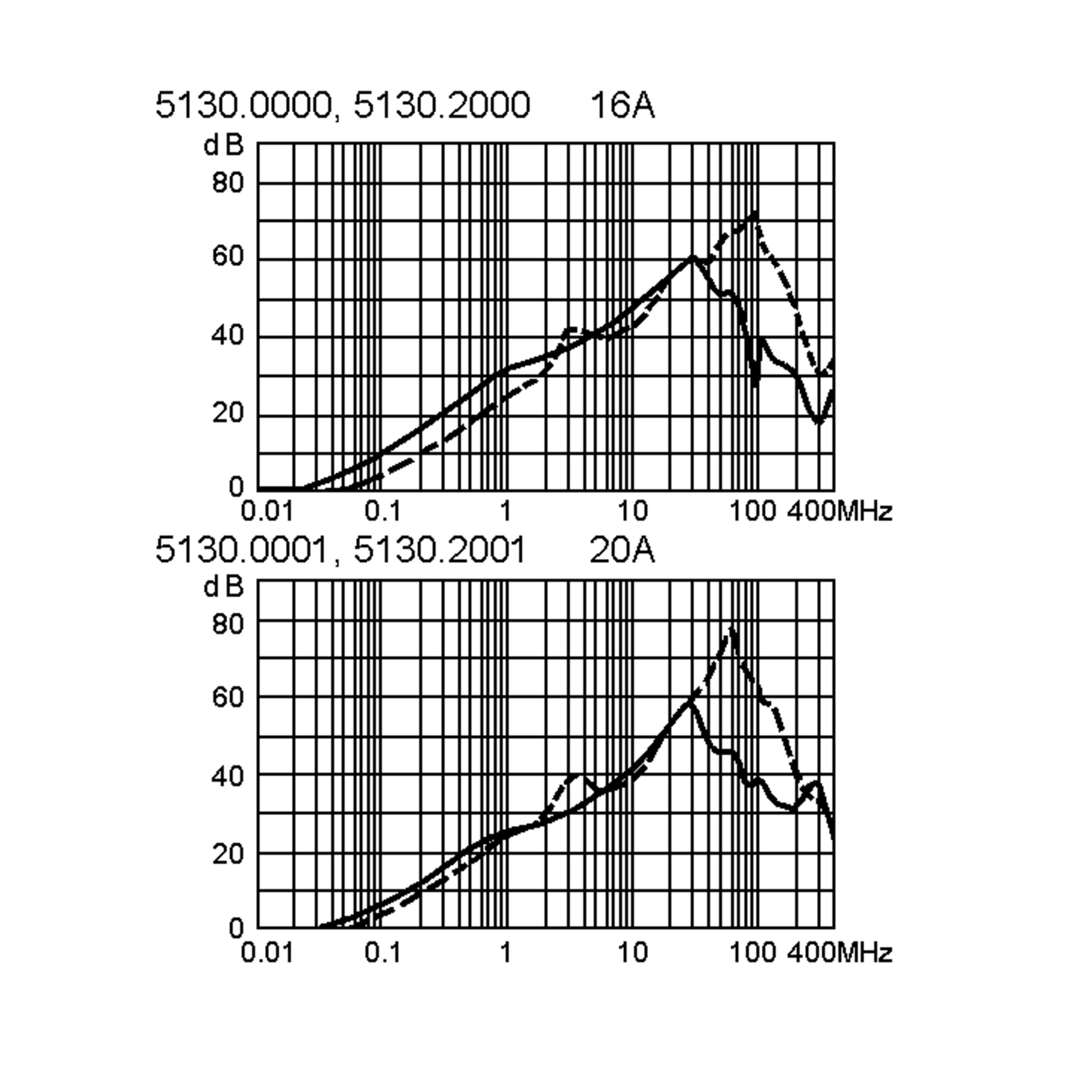

Technical features

Rated voltage at 50/60Hz
  • 250 V
Dielectric strength, 2s, conductor/earth
  • 2,7 kV DC
Dielectric strength, 2s, conductor/conductor
  • 1,7 kV DC
Rated current
  • 16 A
Leakage current, max.
  • 0,5 mA

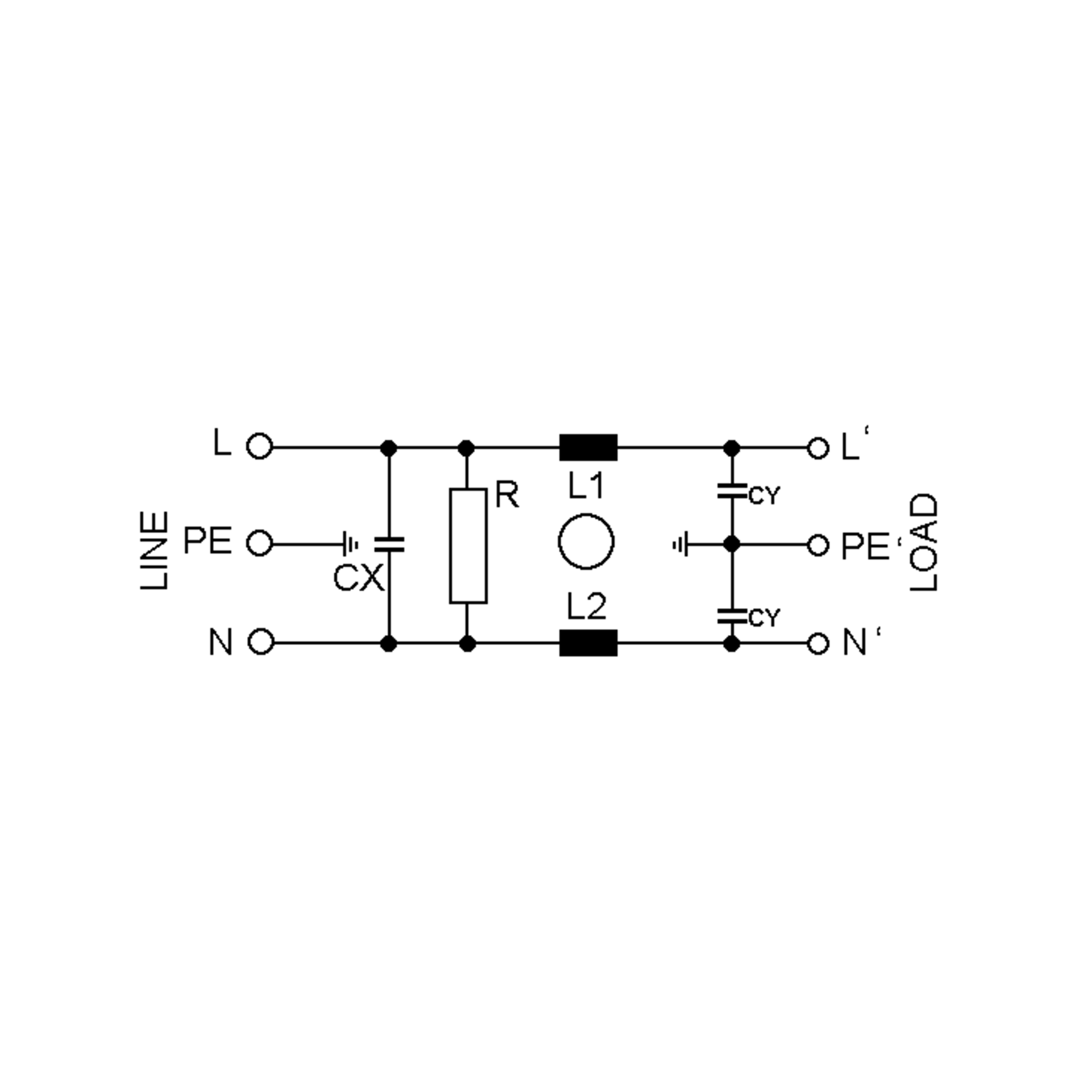

Inductance
  • 0.6 mH
Cx
  • 100 nF
Cy
  • 2,2 nF
Climate category
  • HPF (25/085/21)

Safety/Certifications

Approvals
  • CE
  • ENEC10
  • IEC
  • UK CA
  • UL
  • cCSA
  • cRUus
Protection class front side
  • IP40
Standards
  • IEC 60320-1; IEC 60939; IEC 60127-6; IEC 61058-1; UL 498; UL 1283; CSA C22.2 no. 42; CSA C22.2 no. 8; UL 62368-1: IEC 62368-1
